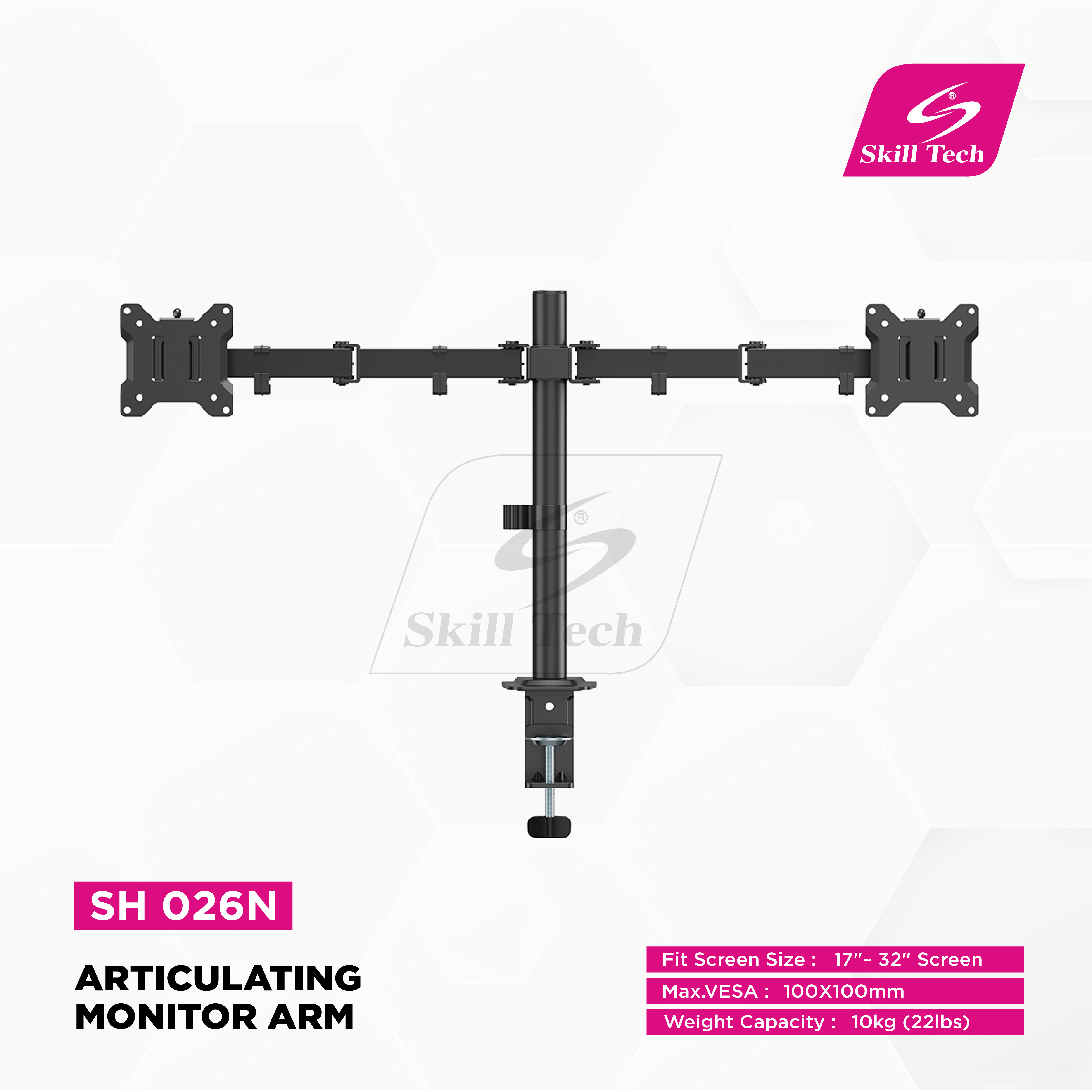

SH 026N
Articulating Monitor Arm
Screen Size17''~32''
Max VESA100x100mm
Weight Capacity10kg
Profile408mm
Tilt Range+45°~-45°
Overview
| Product Category | Articulating Monitor Arm |
|---|---|
| Rank | Economy |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Tilt Range | +45°~-45° |
|---|---|
| Swivel Range | +90°~-90° |
| Screen Rotation | +180°~-180° |
| Arm Full Extension | 376mm |
| Pole Height | 408mm |
| Product Category | Articulating Monitor Arm |
|---|---|
| Rank | Economy |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Dual Monitor SupportHolds two screens 17"~32" each with a maximum weight of 10kg per screen.
- Full Motion AdjustmentTilt +45°~-45°, swivel +90°~-90°, and +180°~-180° screen rotation for flexible viewing angles.
- Durable ConstructionMade from steel and plastic with a matte black powder-coated finish.
- Adjustable Arm Reach376mm full extension and 408mm pole height for ergonomic positioning.
- Easy Installation & Cable ManagementCompatible with clamp or grommet setups and includes integrated cable organization.
Description

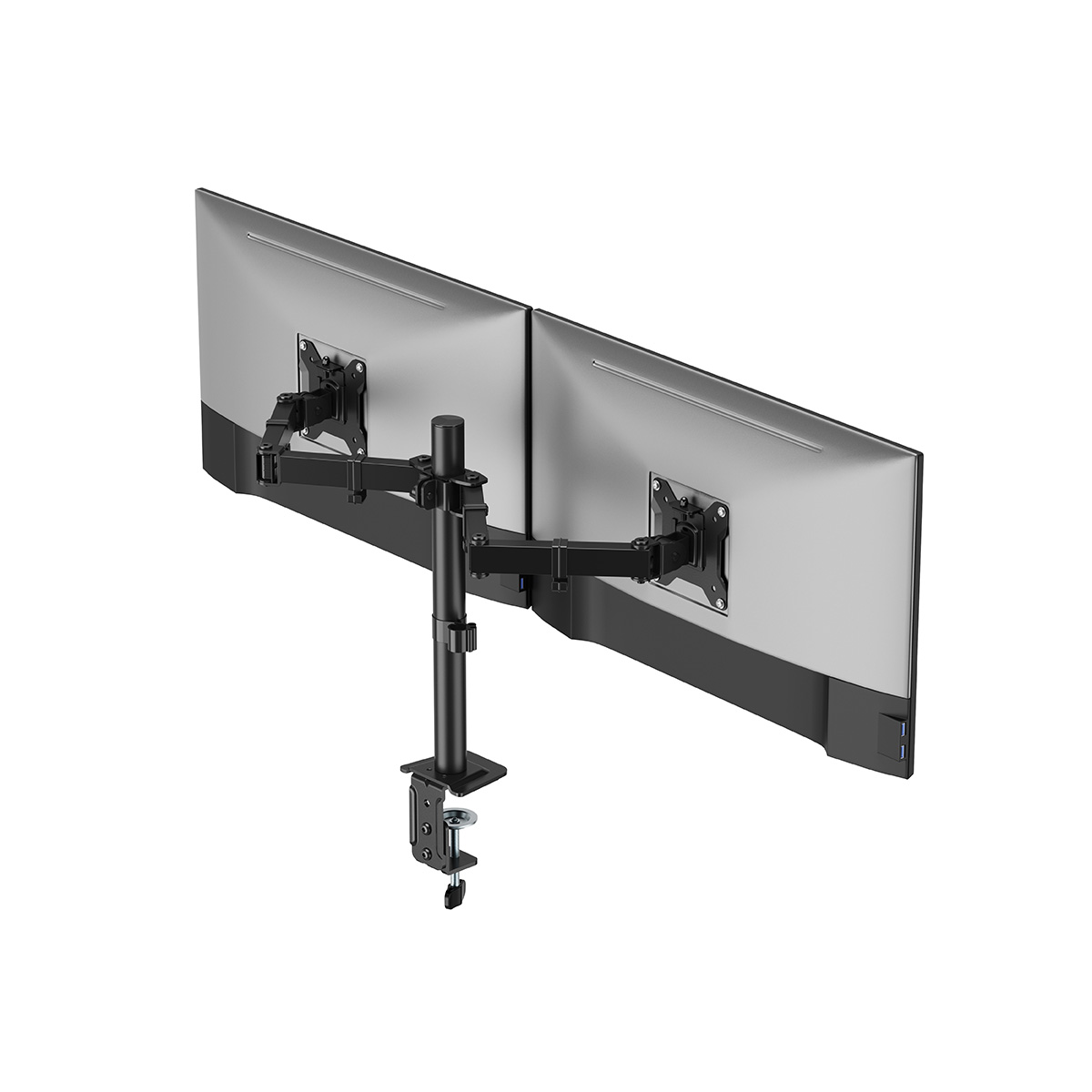

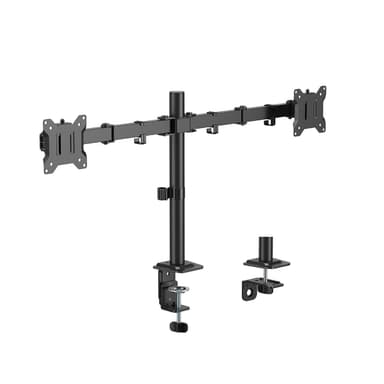

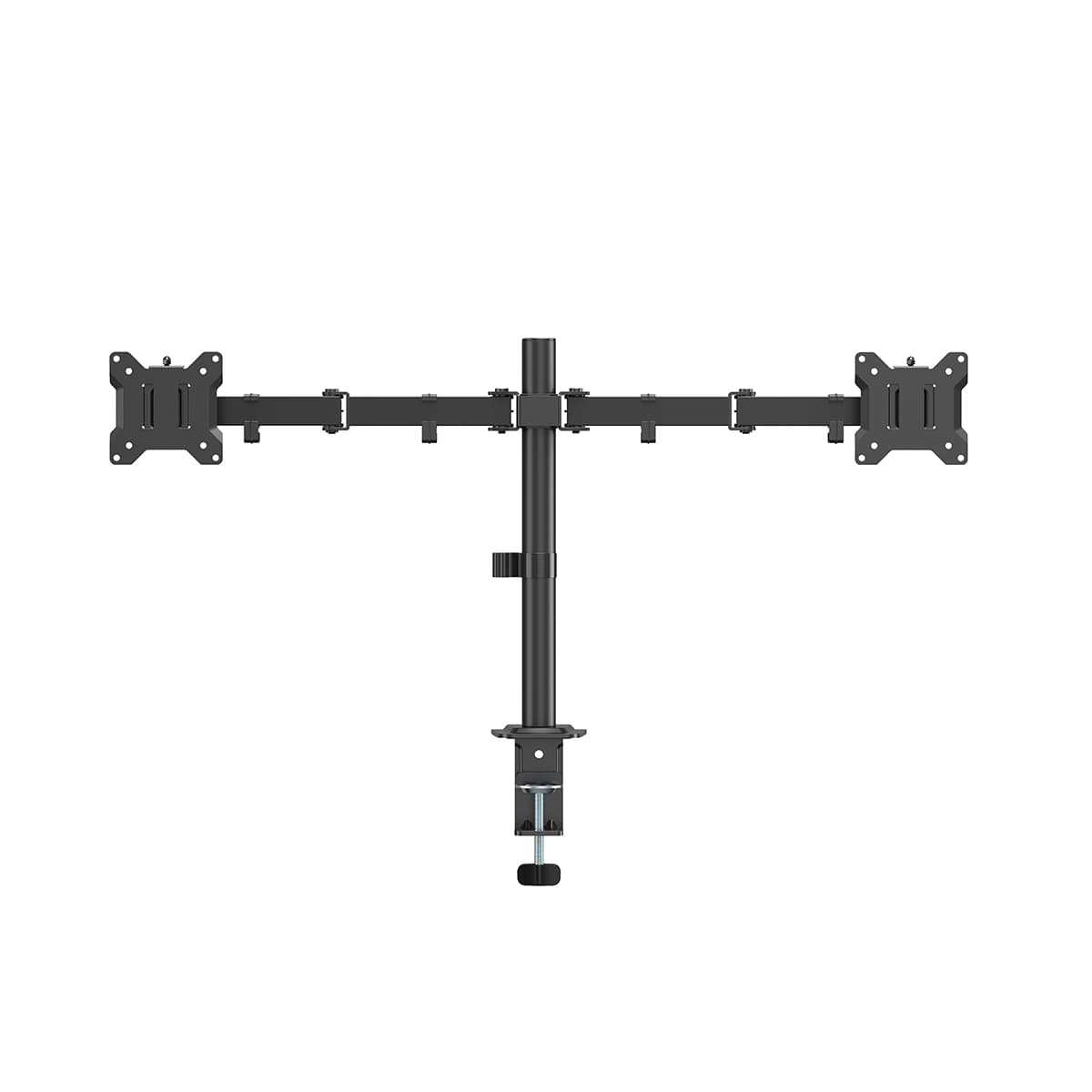

The SH 026N Articulating Monitor Arm is an economy dual-screen solution designed for flexibility and space-saving setups. Made from steel and plastic with a matte black powder-coated finish, it supports most 17"-32" flat and curved monitors up to 10kg each. With tilt +45°~-45°, swivel +90°~-90°, and +180°~-180° screen rotation, along with 376mm full extension, it allows precise positioning. Quick-release VESA plates, cable management, and clamp or grommet installation ensure a clean and organized workspace.

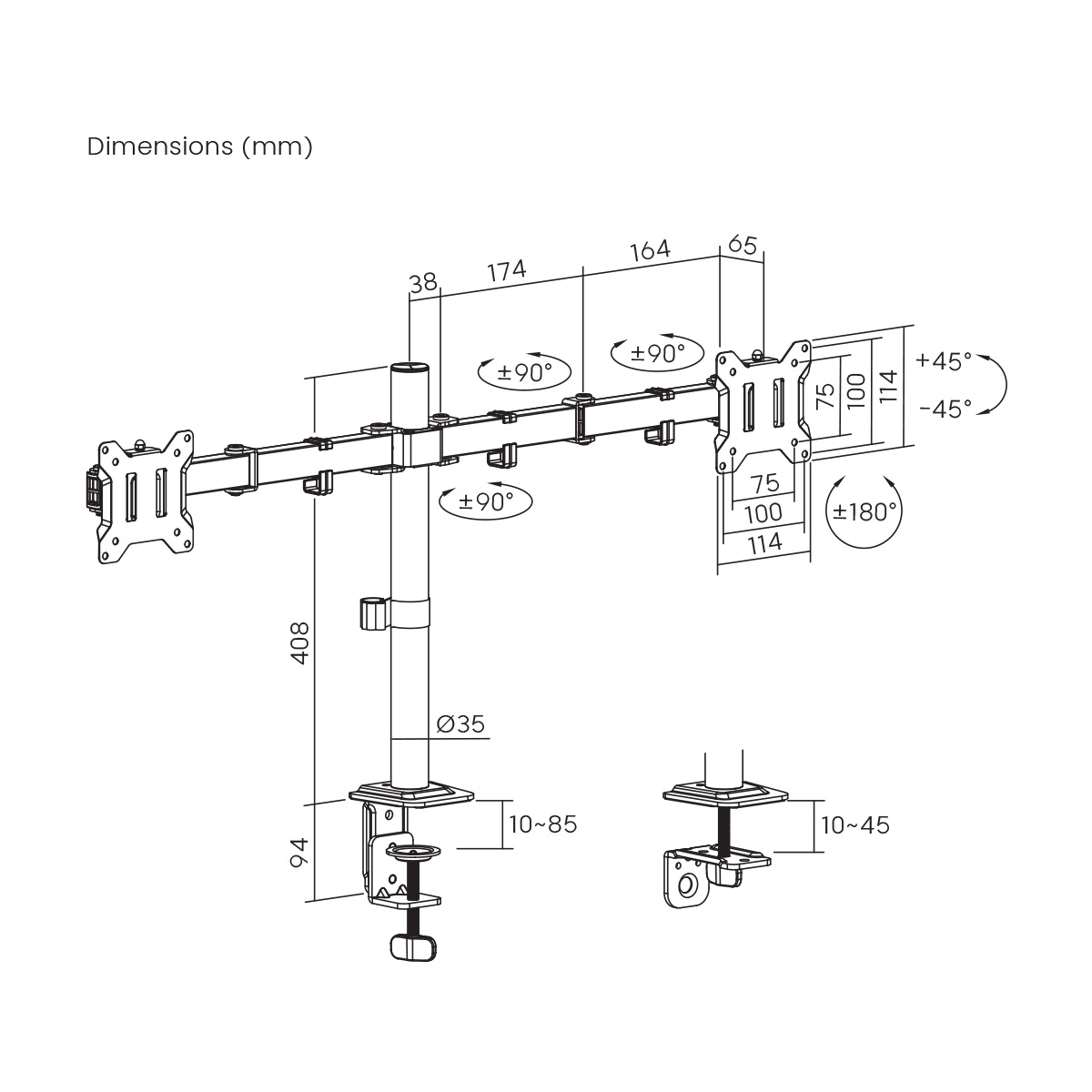

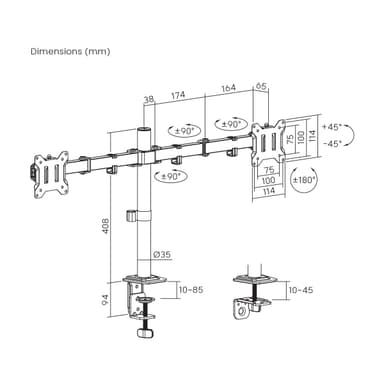

Drawing
