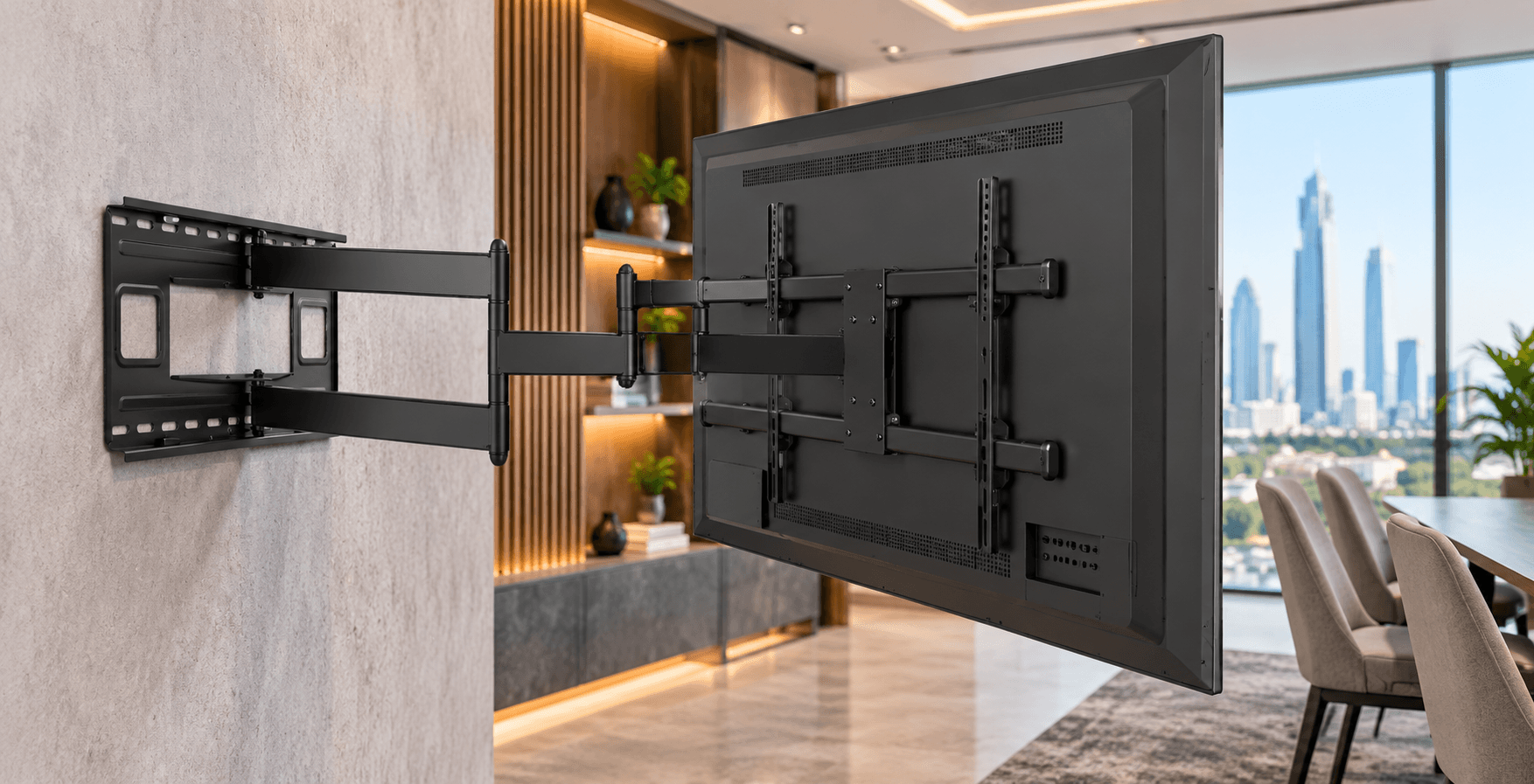

Will a Full-Motion TV Mount Fit in a Recessed Wall?

A full-motion TV mount can work in a recessed wall, but only when the television, bracket, supporting structure and available clearance are suitable together. A screen fitting inside the opening does not mean it can safely extend, tilt or swivel there. Before choosing a TV mount for a recessed wall, measure the opening’s internal width, height and depth, then record the television’s actual dimensions rather than relying on its advertised diagonal screen size. Include any trim, projecting shelves or decorative panels that reduce usable space. Next, check the TV’s weight without its original stand and its exact VESA mounting pattern—the horizontal and vertical spacing between the mounting holes on the back. Both must match the selected bracket’s requirements, along with the supported screen-size range and the television manufacturer’s mounting instructions. The position of those mounting holes also matters because it affects where the screen sits relative to the bracket and the opening. Recess depth is another important consideration: an articulated bracket needs space for its wall plate, folded arms, TV attachment and cable connections. Its minimum profile does not represent the complete distance from the supporting wall to the front of the television. TV thickness, approved spacers and connector clearance also contribute, so a low-profile bracket alone does not guarantee a flush finish. If you want to turn the screen towards another seating area, the installer must check its movement path as well as its straight-ahead position. One edge of the television moves backwards as the screen swivels and may strike the side of the recess unless the assembly can first move sufficiently forward. For example, a TV that fits neatly within a niche when facing the sofa may have very little usable turning space towards a dining area. Maximum arm extension and advertised swivel range are therefore starting points for assessment, rather than guarantees of the movement available in your room. Skill Tech’s full-motion single-arm TV mounts include models with different extension profiles. The SH 1015P Extra Long Single Arm Full-Motion TV Wall Mount, for example, is listed for most 43–80-inch screens, with a 50 kg weight capacity, maximum VESA of 800 × 400 mm and a profile range of 82–1015 mm. These specifications can help shortlist a bracket, but they do not establish that this model fits a particular recess; its wall plate, arm movement, mounting position and your television’s dimensions still need checking. The supporting surface is equally important. A decorative media wall may conceal plasterboard, timber framing, masonry or other construction, and the visible back panel should not automatically be treated as a suitable mounting surface. Extending a television away from the wall increases the leverage on the fixing points, so a qualified installer should assess the actual structure and select fixings in accordance with the bracket instructions. Do not attach a mount to decorative cladding alone or use improvised packing blocks to compensate for an unsuitable recess. Hidden electrical cables and pipework also need consideration before drilling. Ventilation must remain adequate when the television is pushed back into its normal viewing position. Follow the clearance requirements in your exact TV model’s manual, keeping vents unobstructed; there is no single gap that can be recommended for every screen and enclosure. Plan access to power, HDMI and other connections without trapping plugs or forcing cables into tight bends. Cable length should accommodate the permitted arm movement without becoming stretched or caught in the mechanism, while connections should remain accessible for future maintenance. Also check whether the mounting system’s locking or release components can be reached after installation. If the existing niche cannot accommodate movement, ventilation or a secure attachment, the solution may require modifying the recess or reviewing a different mounting arrangement with an installer. A fixed bracket may suit a straight-ahead viewing position, but it still requires compatible fixings, ventilation and connection space. For broader selection considerations, read Skill Tech’s TV wall mount guide. Before purchasing, take clear photographs of the recess and share its measurements, the television model, screen weight and intended viewing positions. Contact Skill Tech for a compatibility enquiry and to discuss whether an installation assessment is needed for your setup.
