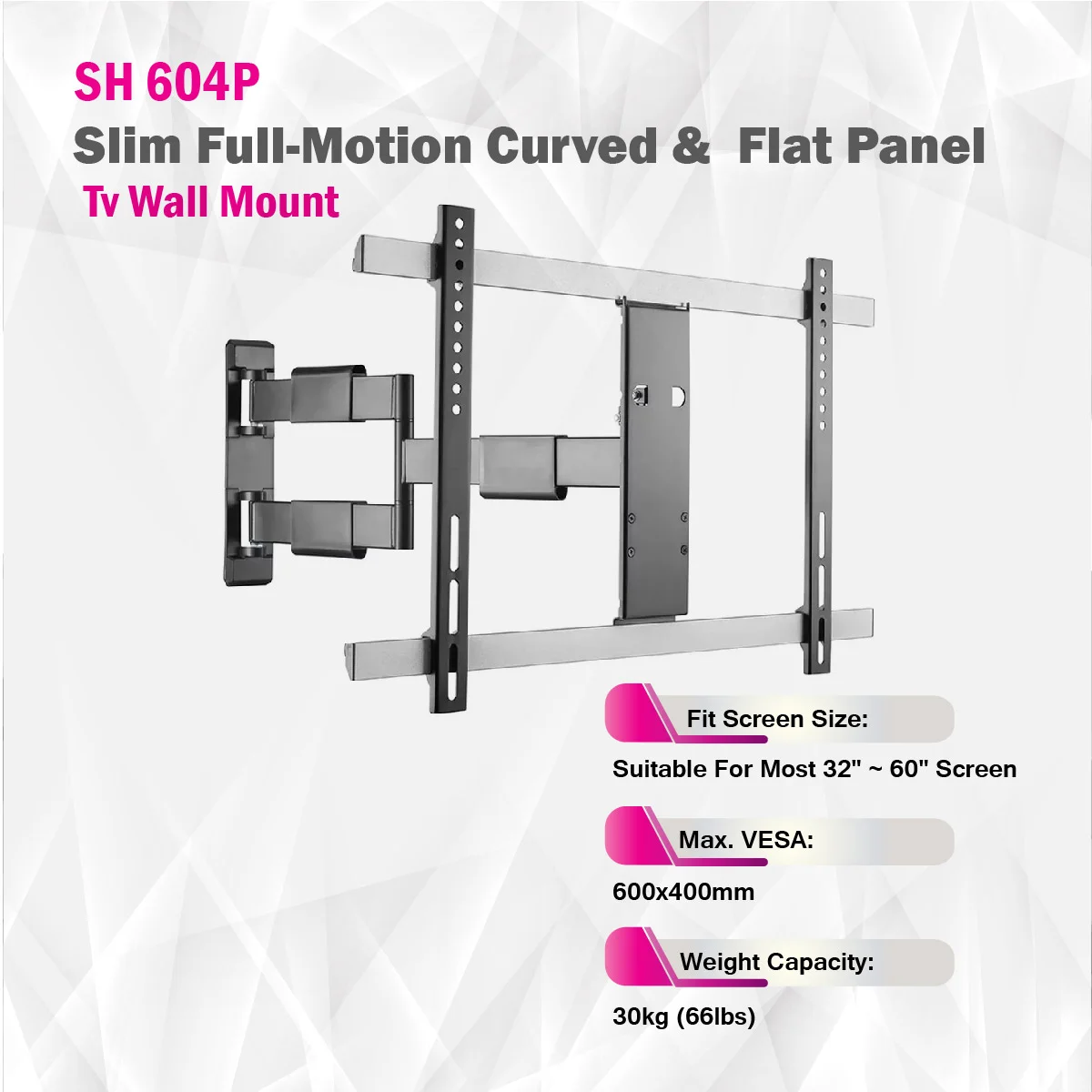

SH 604P Slim Full-Motion Curved & Flat Panel Tv Wall Mount

Product Category: Full-Motion TV Wall Mount
Rank: Standard
Material: Steel
Pipe Size: 50x20x1.5mm,50x16x1.5mm
Surface Finish: Powder Coating
Color: Matte Black

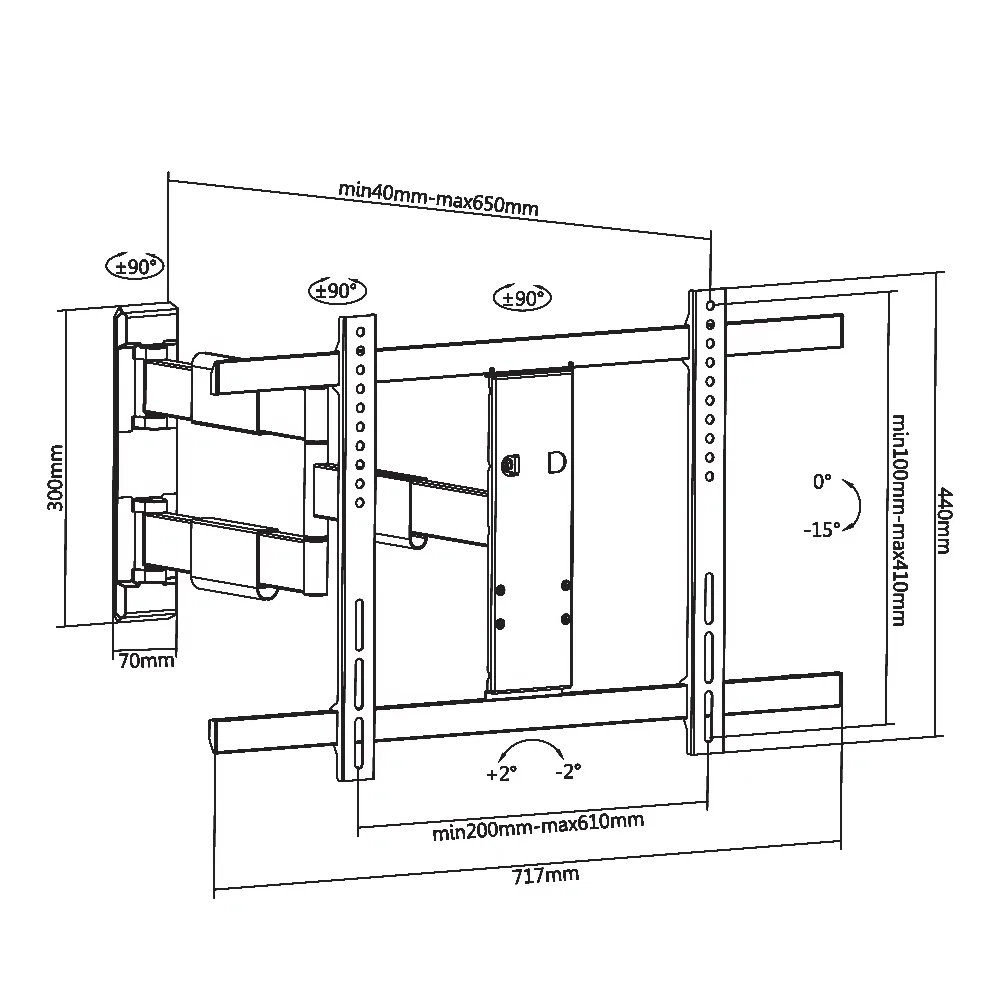

Dimensions: 650x717x440mm (25.6"x28.2"x17.3")
Fit Screen Size: Suitable For Most 32" ~ 60" Screen
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible:



Max. VESA: 600x400mm
Weight Capacity: 30kg (66lbs)
Strength Tested: 3 Times Approved
Profile: 40~650mm (1.6"~25.6")
Tilt Range: +0° ~ -15°
Swivel Range: +90° ~ -90°
Screen Level: +2° ~ -2°
Screen Freely Tilting: Yes
Installation: Solid Wall,Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: Yes
Accessory Kit Package: Compartment Polybag

The SH 604P Slim Full-Motion Curved & Flat Panel TV Wall Mount is a versatile and reliable choice for enhancing your home entertainment experience. Constructed from robust steel with a sleek matte black powder coating, this wall mount offers both durability and a modern aesthetic. Designed to accommodate most 32 to 60-inch screens, including curved TVs, it supports a range of VESA patterns, including 200x200, 300x300, 400x200, 400x400, and 600x400mm, with a maximum VESA size of 600x400mm. With a weight capacity of 30kg and having undergone strength testing three times for approval, it guarantees secure TV support. The wall mount provides flexibility with a profile that can be adjusted from 40mm to 650mm (1.6" to 25.6"), allowing you to customize the viewing height. Full-motion features include a tilt range of +0° to -15°, a swivel range of +90° to -90°, and screen leveling of +2° to -2°, ensuring the perfect viewing angle. The wall mount also allows for screen tilting, adding versatility to your setup. Cable management is integrated to keep your wires organized and tidy. Installation options include solid wall and single stud mounting, and it includes a detachable panel and fixed wall plate for easy setup. The SH 604P is compatible with both flat and curved TVs, making it suitable for a variety of television models. This standard-ranked wall mount combines functionality and style, providing quality support for your TV while enhancing your home entertainment area.

Slim Design: provides low profile.

Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat).

Built-In Level Adjustment: ensures perfect positioning.

Cable Management: keep everything organized.
