Ultra Slim Articulating Tv Wall Mount

Home » TV WALL MOUNT » Full Motion Double Arm Mounts » Ultra Slim Articulating TV Wall Mount

DATA SHEET Quick Enquiry CBM CALCULATION

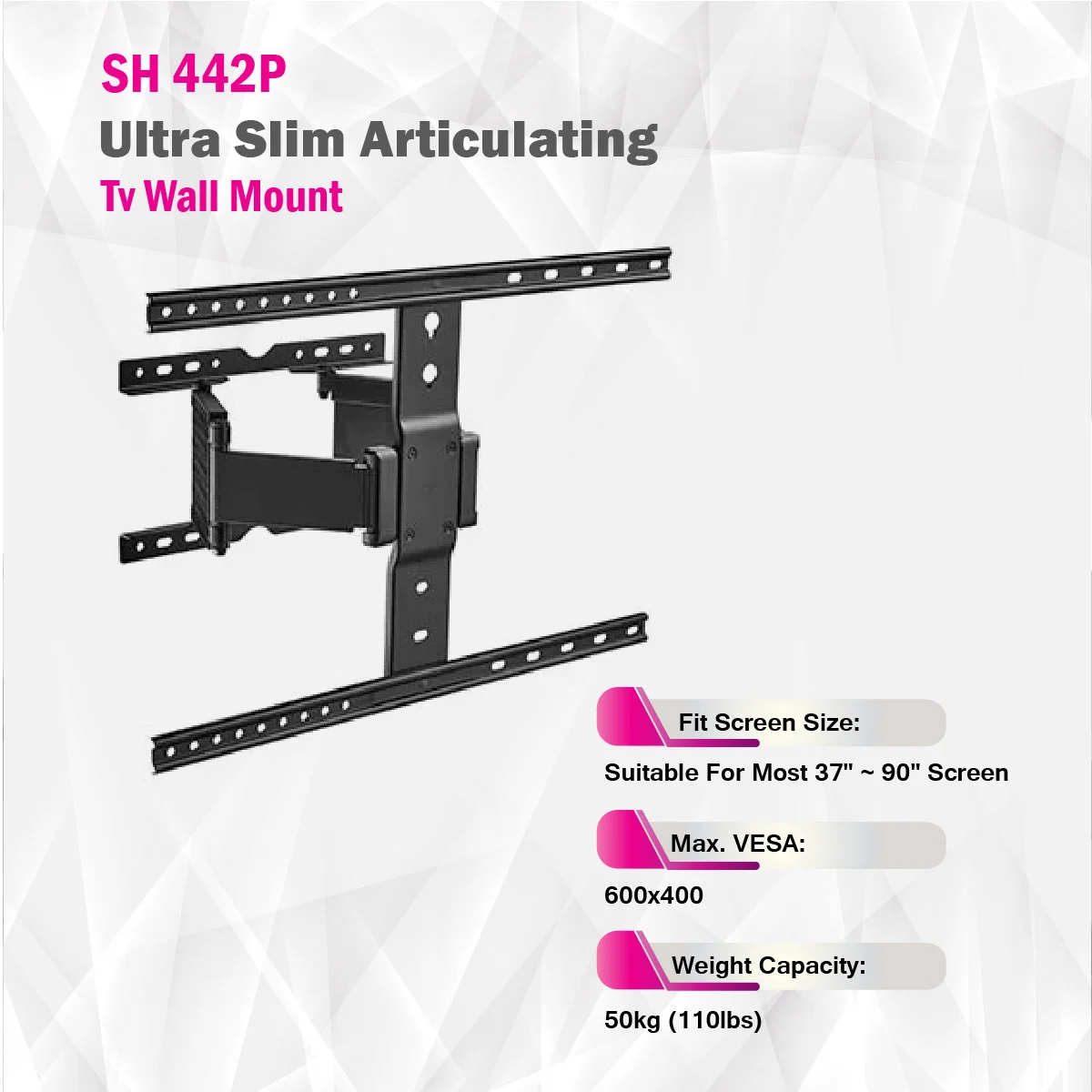

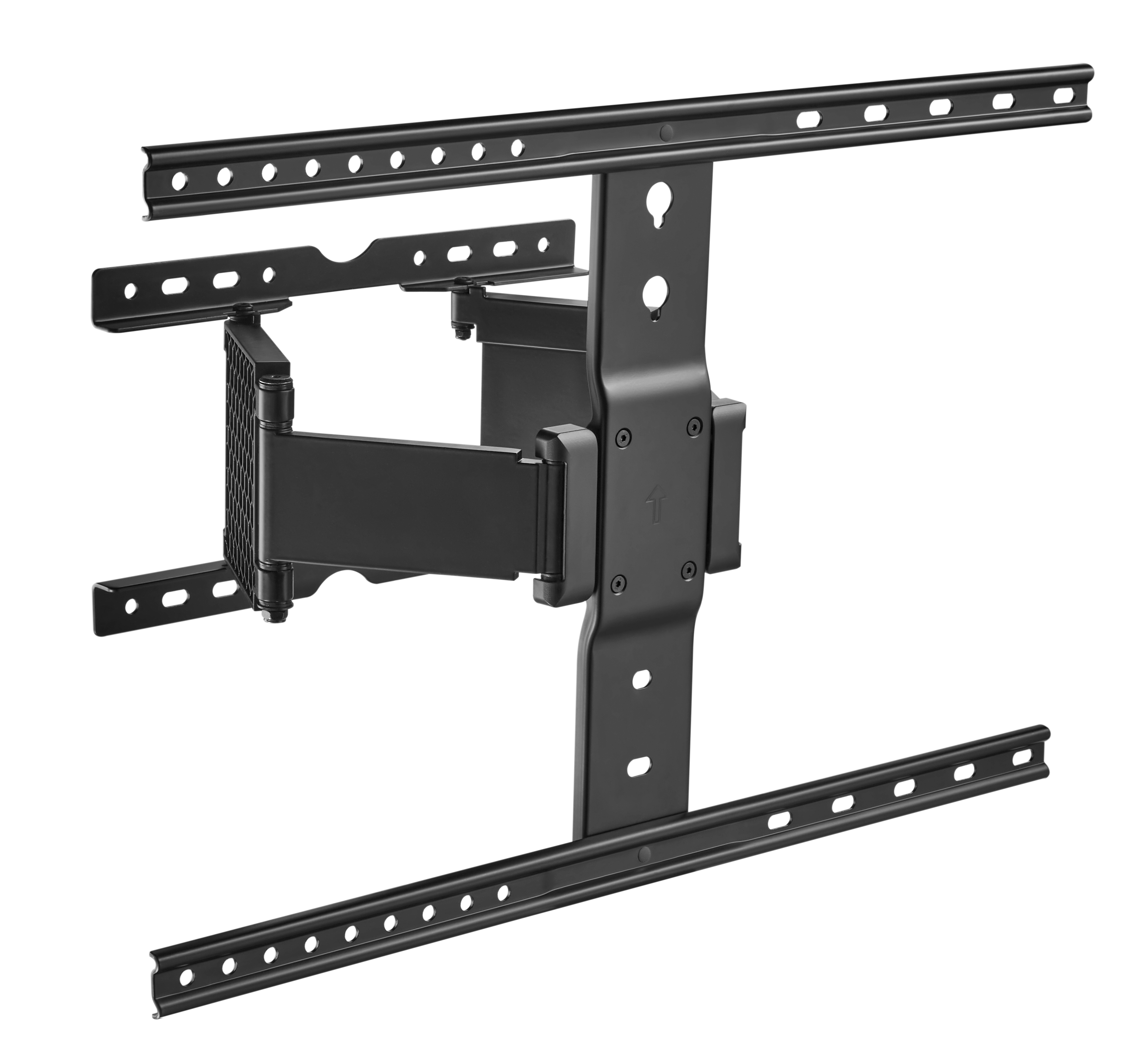

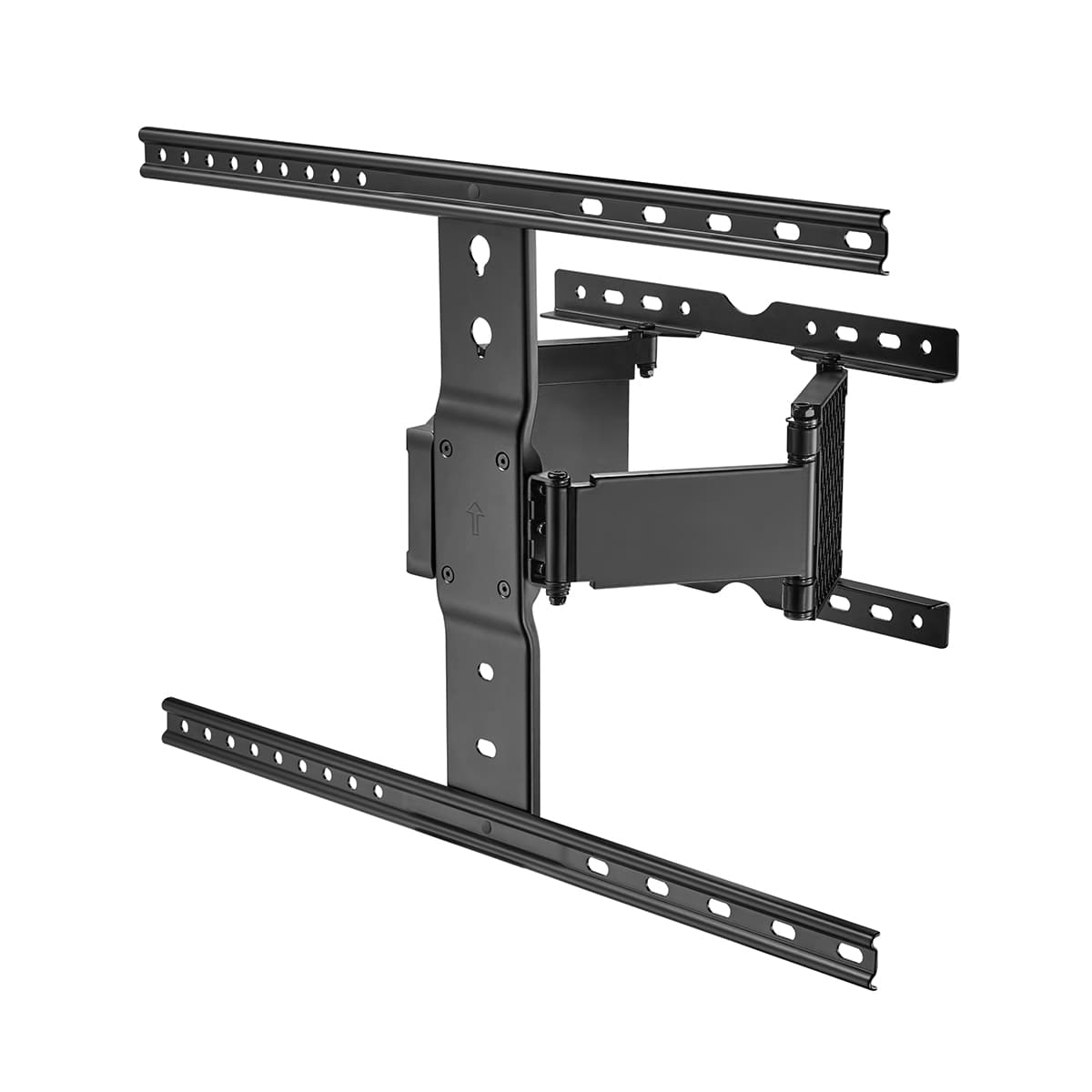

SH 442P Ultra Slim Articulating TV Wall Mount

Product Category:	Full- Motion TV Wall Mount
Rank:	Standard
Material:	Aluminum,Steel,Plastic
Surface Finish:	Powder Coating
Color:	Matte White,Matte Black

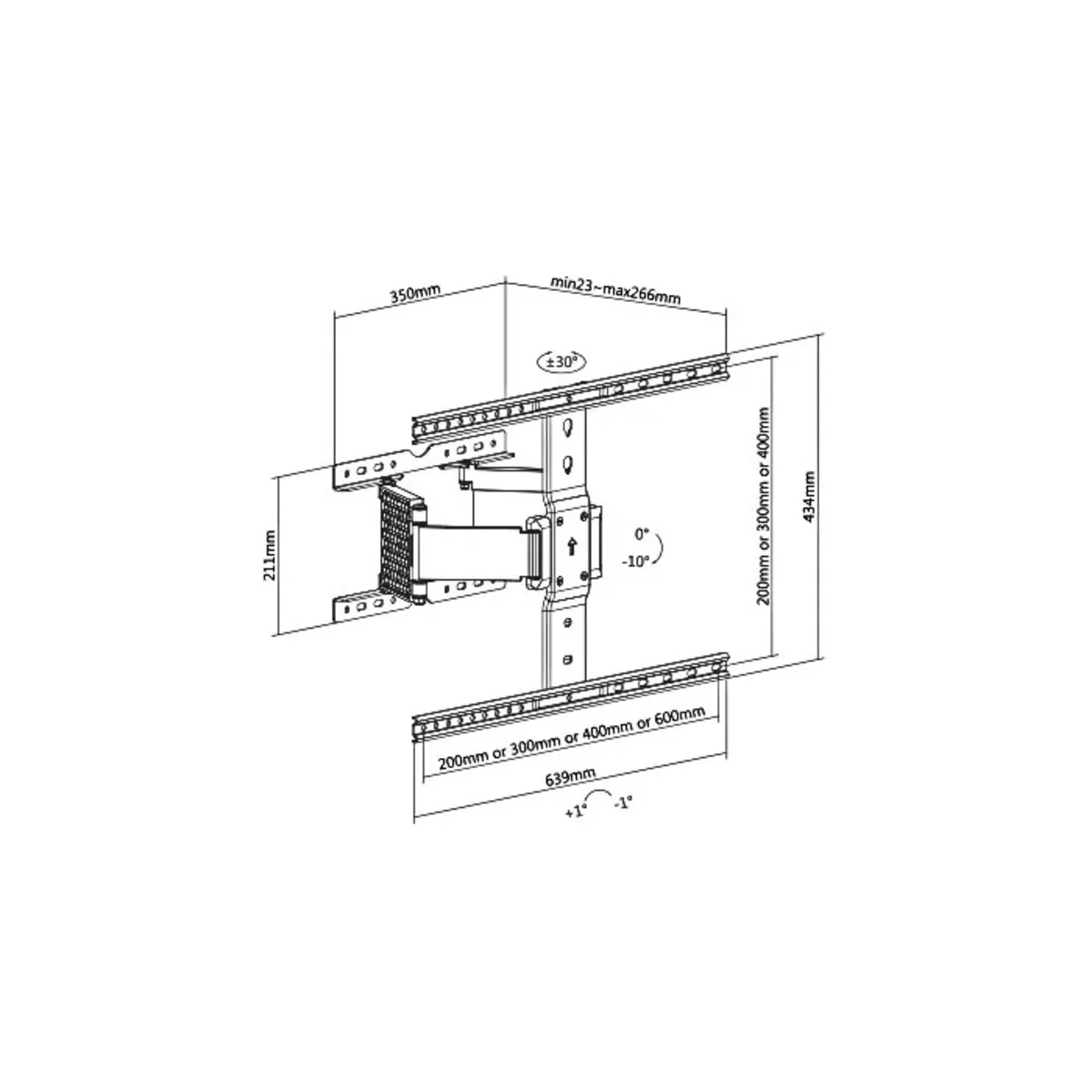

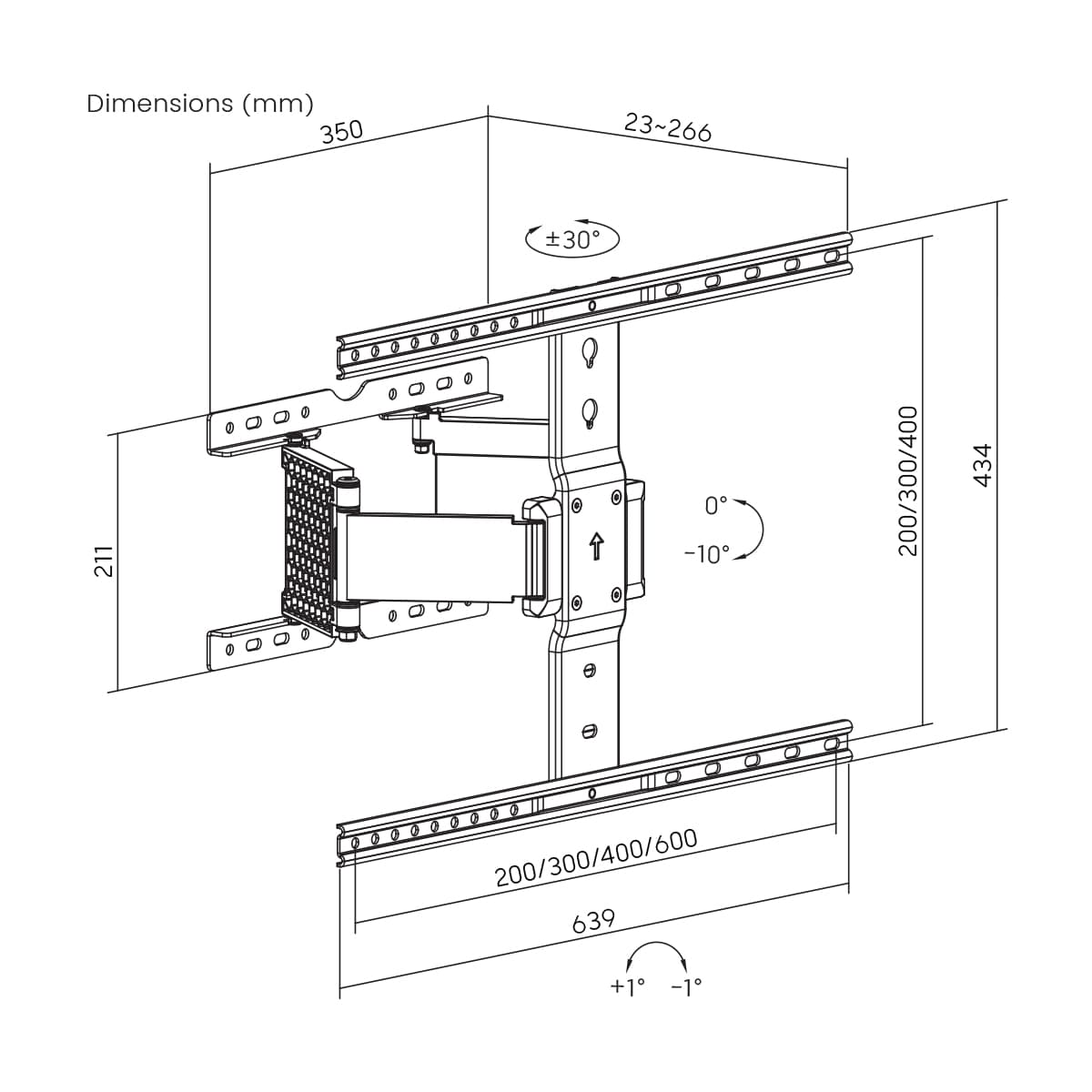

Dimensions:	267x640x435mm (10.5"x25.2"x17.1")
Fit Screen Size:	Suitable For Most 37" ~ 90" Screen
Fit Curved TV:	Yes
Mounting Hole Pattern :	VESA Only
Max. VESA:	600X400mm
Weight Capacity:	50kg (110lbs)
Strength Tested:	4 Times Approved
Profile:	23-266mm (0.91"-10.5")
Screen Freely Tilting:	Yes
Installation:	Solid Wall
Tilt Range:	+0° ~ -10°
Swivel Range:	+30° ~ 30°
Wall Plate Type:	Fixed Wall Plate
Direction Indicator:	Yes
Cable Management:	No
Bubble Level:	Hook-on Bubble Level (Included in Components Package)
Accessory Kit Package:	Compartment Polybag
Silk Screen:	No Silkscreen Printing Area

TV-WALL-MOUNT

Wide Compatibility: Fits most 37" to 90" screens, including curved TVs, with a maximum VESA of 600x400mm.
Slim Profile: Offers a low profile range of 23mm to 266mm, perfect for space-saving installations.
Flexible Viewing: Provides a tilt range of +0° to -10° and a swivel range of ±30° for versatile positioning.
Durable Build: Made from aluminum, steel, and plastic with a powder-coated finish for durability.
Easy Installation: Includes a hook-on bubble level and direction indicator for precise and hassle-free setup.

The SH 442P Ultra Slim Articulating TV Wall Mount offers sleek, space-saving design and superior functionality for TVs from 37" to 90". Made with aluminum, steel, and plastic, it supports up to 50kg (110lbs) with a maximum VESA of 600x400mm. With a slim profile ranging from 23mm to 266mm, it provides a tilt range of +0° to -10° and a swivel range of ±30° for flexible viewing. Includes hook-on bubble level for precise installation.
