| Product Category: | Video Wall Mount & Stand |
| Rank: | Premium |
| Material: | Steel |
| Surface Finish: | Powder Coating |
| Color: | Matte Black |
| Color(Accessory): | Matte Black |
| Fit Screen Size: | Suitable For Most 45" ~ 75" Screen |
| VESA Compatible: | 200x200,400x200,300x300, 400x400,600x400mm |
| Max. Mounting Hole: | 600x400mm |
| Weight Capacity(Per Screen): | 70kg (154lbs) |
| Screen Qty: | 1 |
| Strength Tested: | 4 Times Approved |

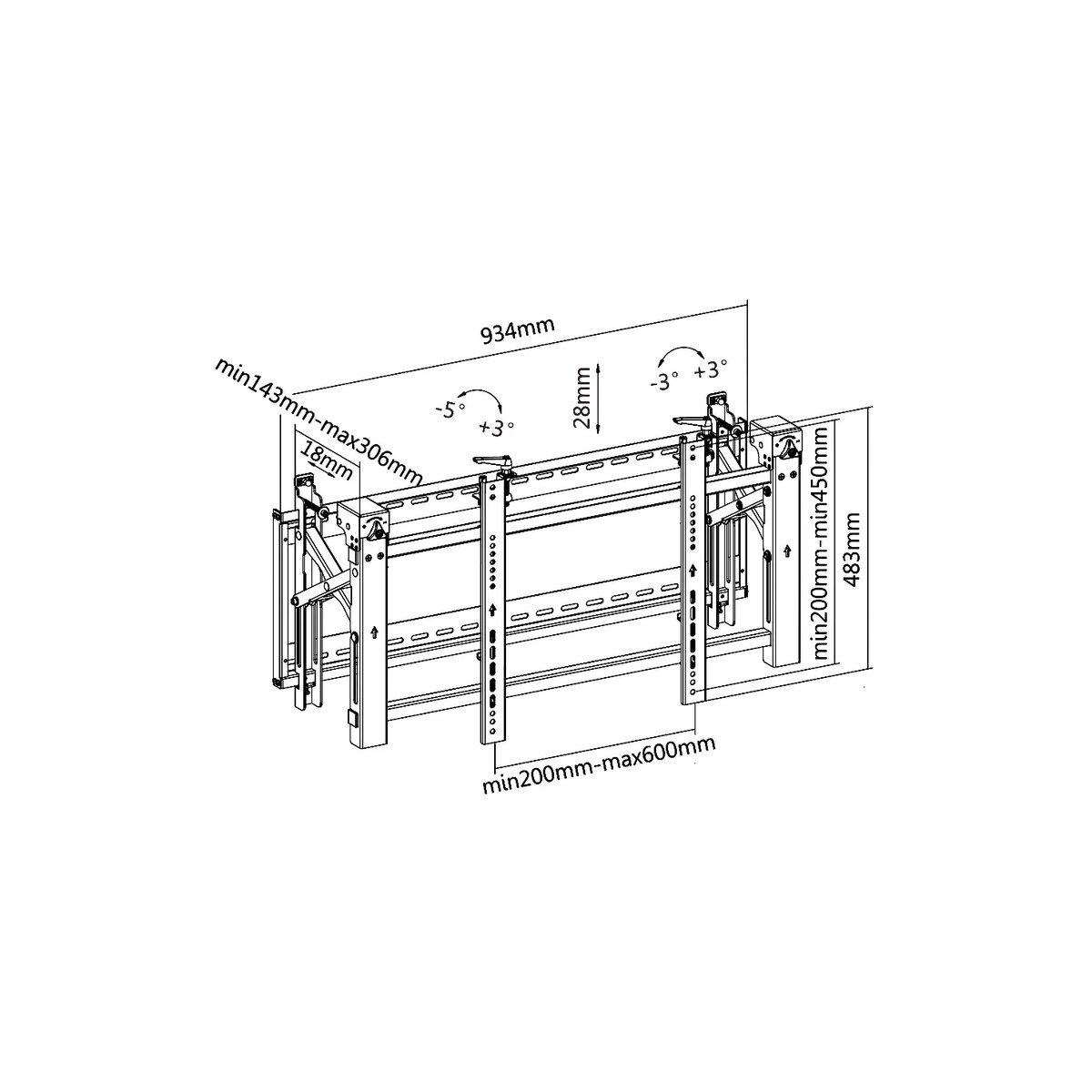

| Profile: | 143~306mm (5.6"~12") |
| Fine Adjustment(Depth/Height): | 18mm/28mm (0.71"/1.1") |
| Tilt Range: | -5° ~ +3° |
| Screen Level: | -3° ~ +3° |
| Installation: | Solid Wall |
| Direction Indicator: | Yes |
| Cable Management: | No |
| Anti-theft: | Yes |
| Accessory Kit Package: | Compartment Polybag |

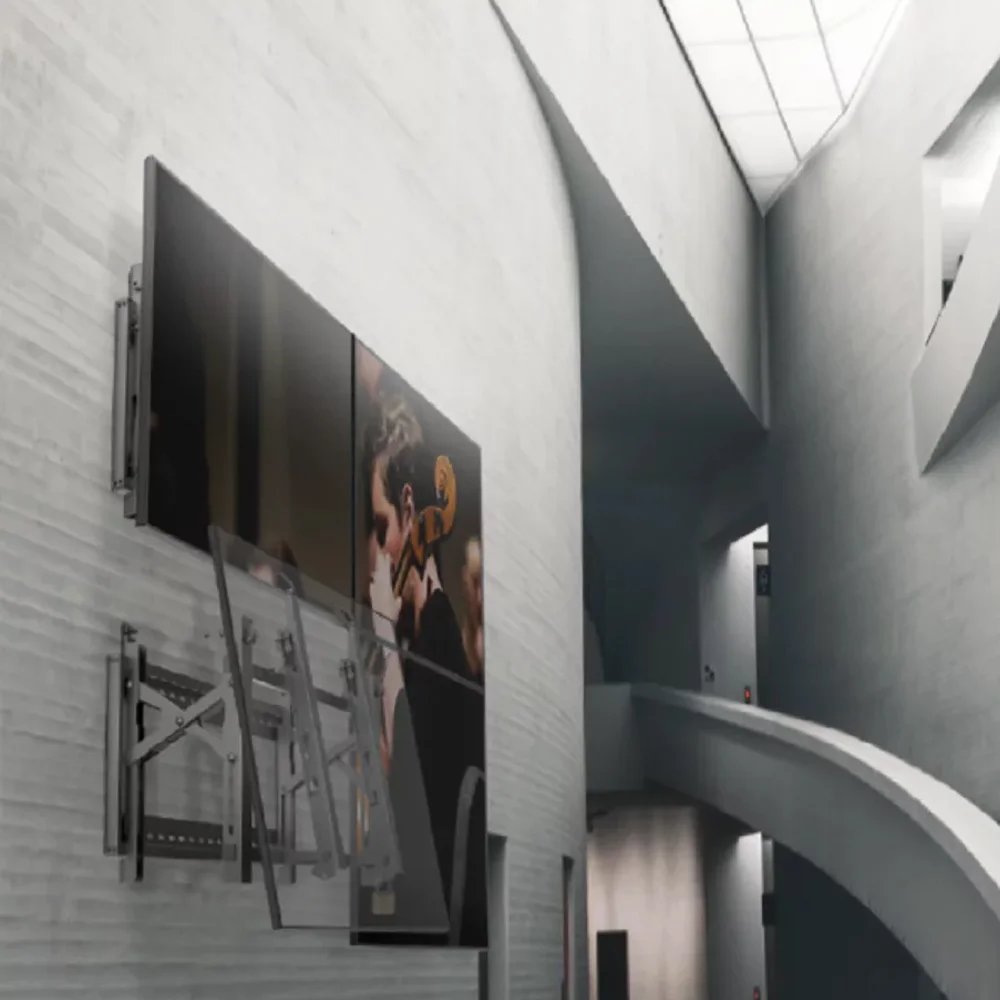

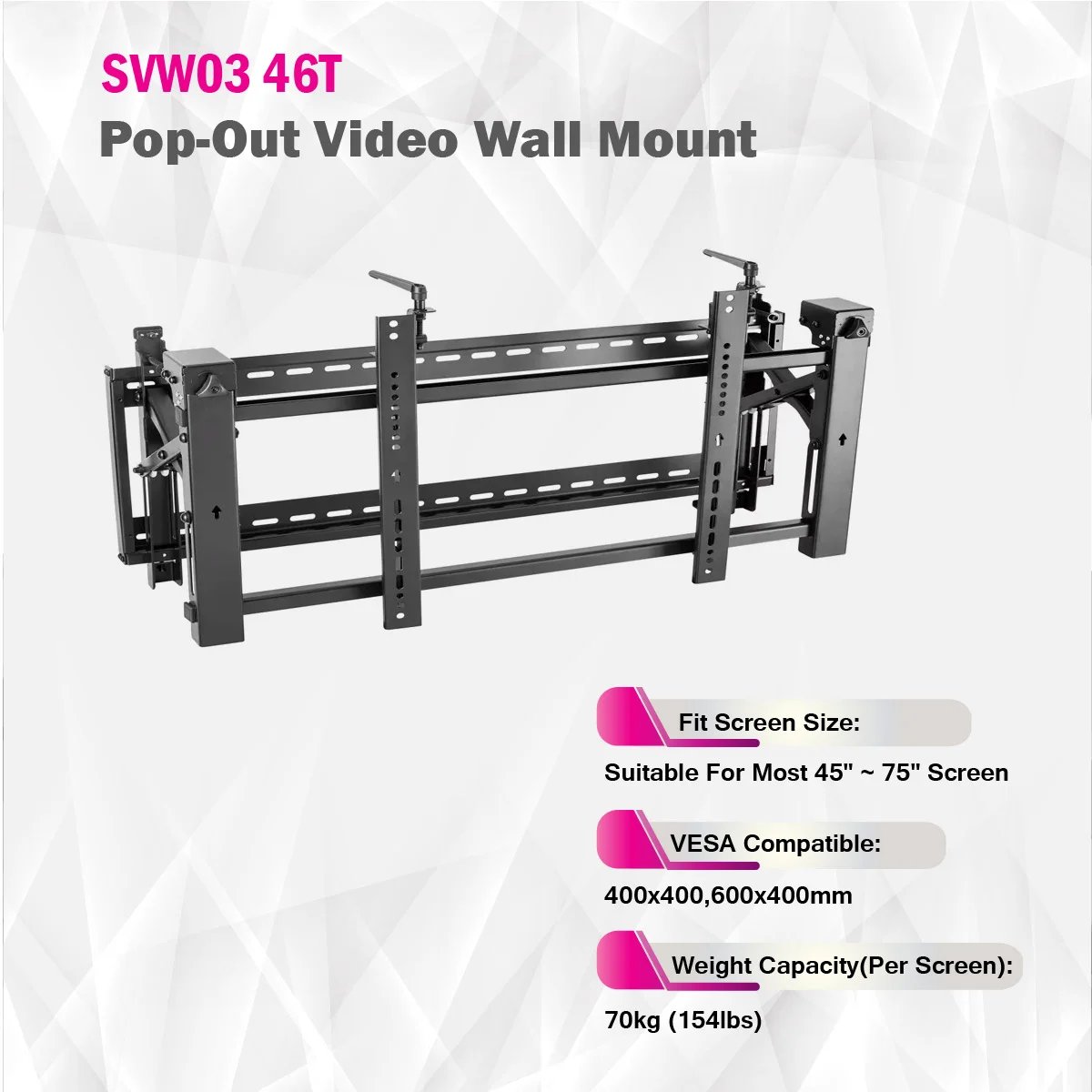

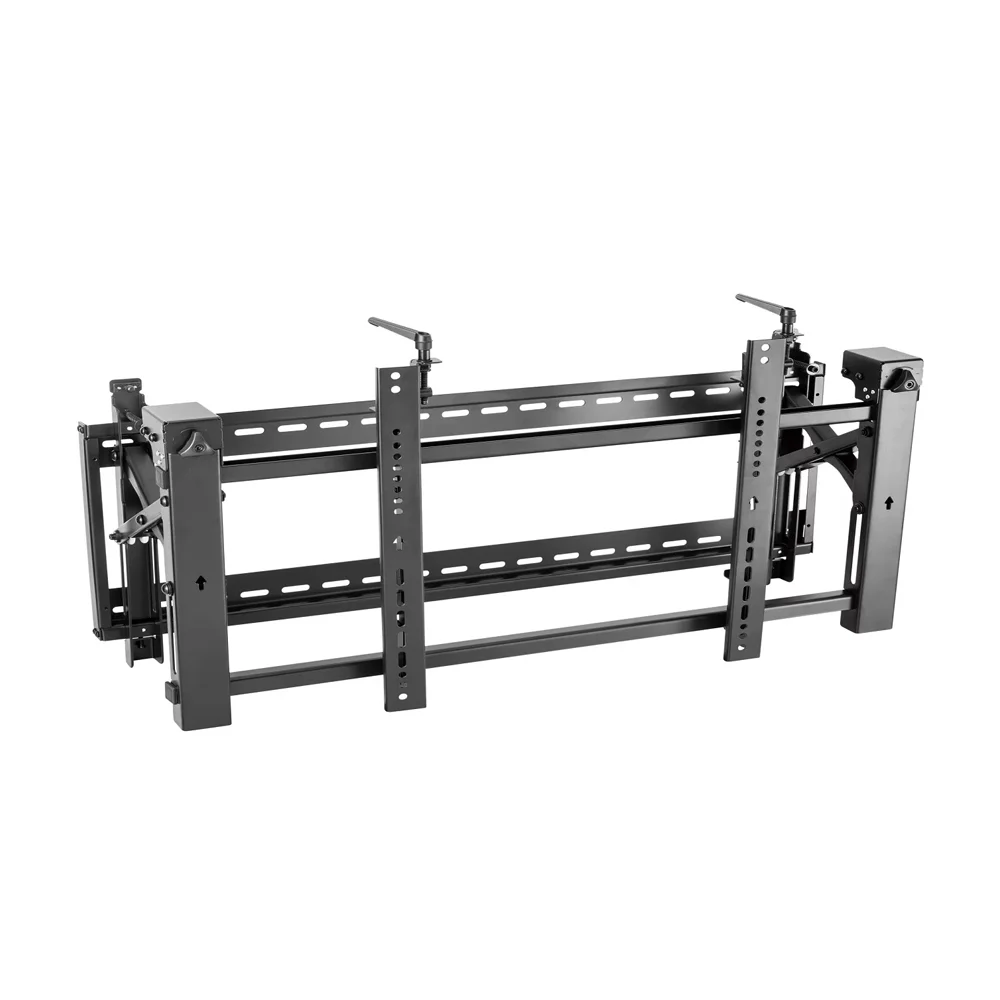

SVW03 46T provides a professional video wall solution while offering universal compatibility with a load capacity of 70kg/154lbs and max. VESA 600x400 hole pattern. This video wall mount allows unlimited display configurations and features an innovative pop-out function that provides quick and easy rear of screen access. Post-installation lateral shift allows screens to slide apart and back together to simplify installation and maintenance. It also features 6 points of vertical, tilt, and depth adjustment for seamless display alignment and leveling. Kickstand provides 12°of tilt for easy cable management and maintenance. It is a perfect solution for public and commercial displays with an anti-theft design (require for a padlock).
Pop-Out Extension: provides quick access for installation and maintenance.
Post-Install Display Alignment: for seamless digital signage (height, depth, tilt adjustment).
Kickstand Design: allows space for cable management and maintenance.
Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs.
Lateral Shift Brackets: enable width adjustment and fast alignment.
Lock & Unlock Switch Knob: locks/releases display out of the wall plate.
Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required).
Lateral Shift Brackets, Video Wall Mount, Pop-Out Video Wall Mount, Anti-Theft Video Wall Mount, Video Wall Mounting System.
| Quantity per Carton | 1 units |
| Gross Weight | 15 |
| Net Weight | 13 |
| CBM per Carton | 0.106 |
| Carton Dimension | 103.5X51X20 |
