SH 44T
Classic Tilting TV Wall Mount
Screen Size23"~60"
Max VESA400x400mm
Weight Capacity45kg
Tilt Range+15° ~ -15°
Profile68mm
Overview
| Product Category | Tilt TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Mounting Hole Pattern | VESA & Universal |
|---|---|
| Max. VESA | 400x400mm |
| Weight Capacity | 45kg |
| Profile | 68mm |
| Tilt range | +15° ~ -15° |
| Product Category | Tilt TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Universal CompatibilitySuitable for most 23"~60" flat and curved TVs, with VESA patterns up to 400x400mm.
- Strong and DurableMade from steel with a matte black powder coating, ensuring long-lasting performance.
- Tilt RangeOffers +15°~-15° tilt for the perfect viewing angle and reduced glare.
- High Weight CapacitySupports TVs up to 45kg, providing reliable strength and stability.
- Easy InstallationIncludes a detachable panel, fixed wall plate, and hook-on bubble level for simple setup and alignment.
Description
The SH 44T Classic Tilting TV Wall Mount is designed for versatility and durability, fitting most 23"~60" flat and curved TVs. Crafted from strong steel with a matte black powder-coated finish, it supports up to 45kg and is VESA-compatible up to 400x400mm. Its 68mm low-profile design and +15° ~ -15° tilt range allow for flexible viewing. Includes a detachable panel, fixed wall plate, and a hook-on bubble level for hassle-free installation.

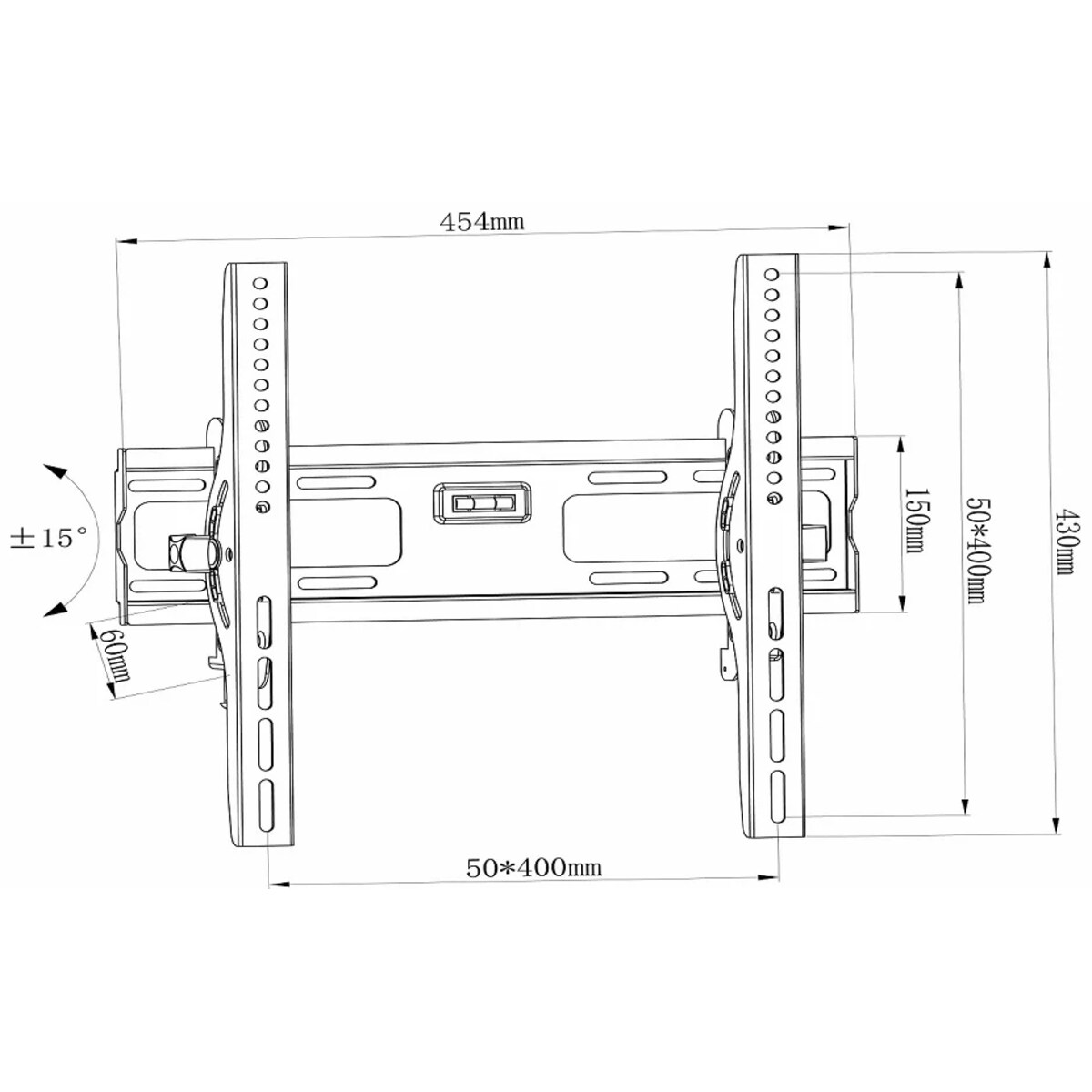

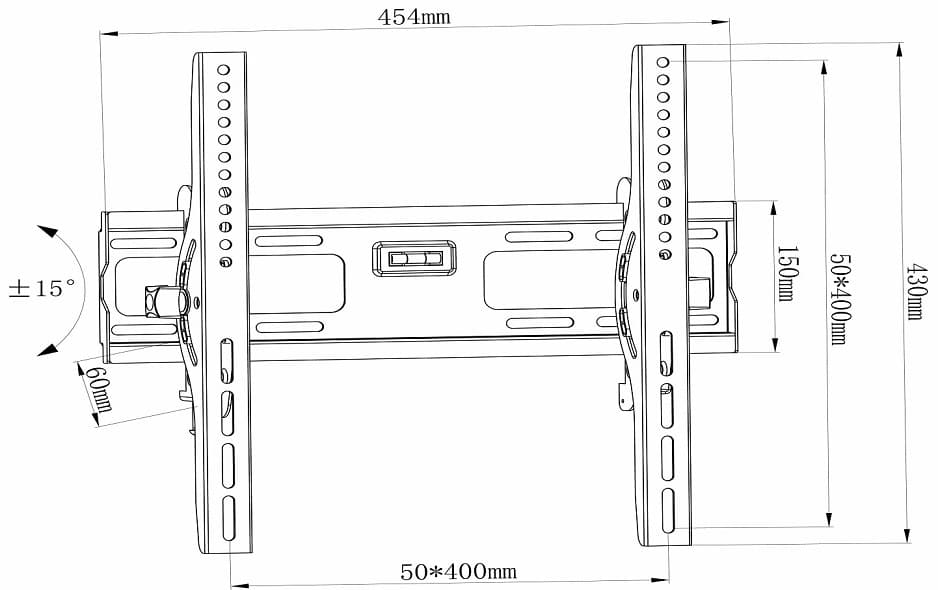

Drawing
