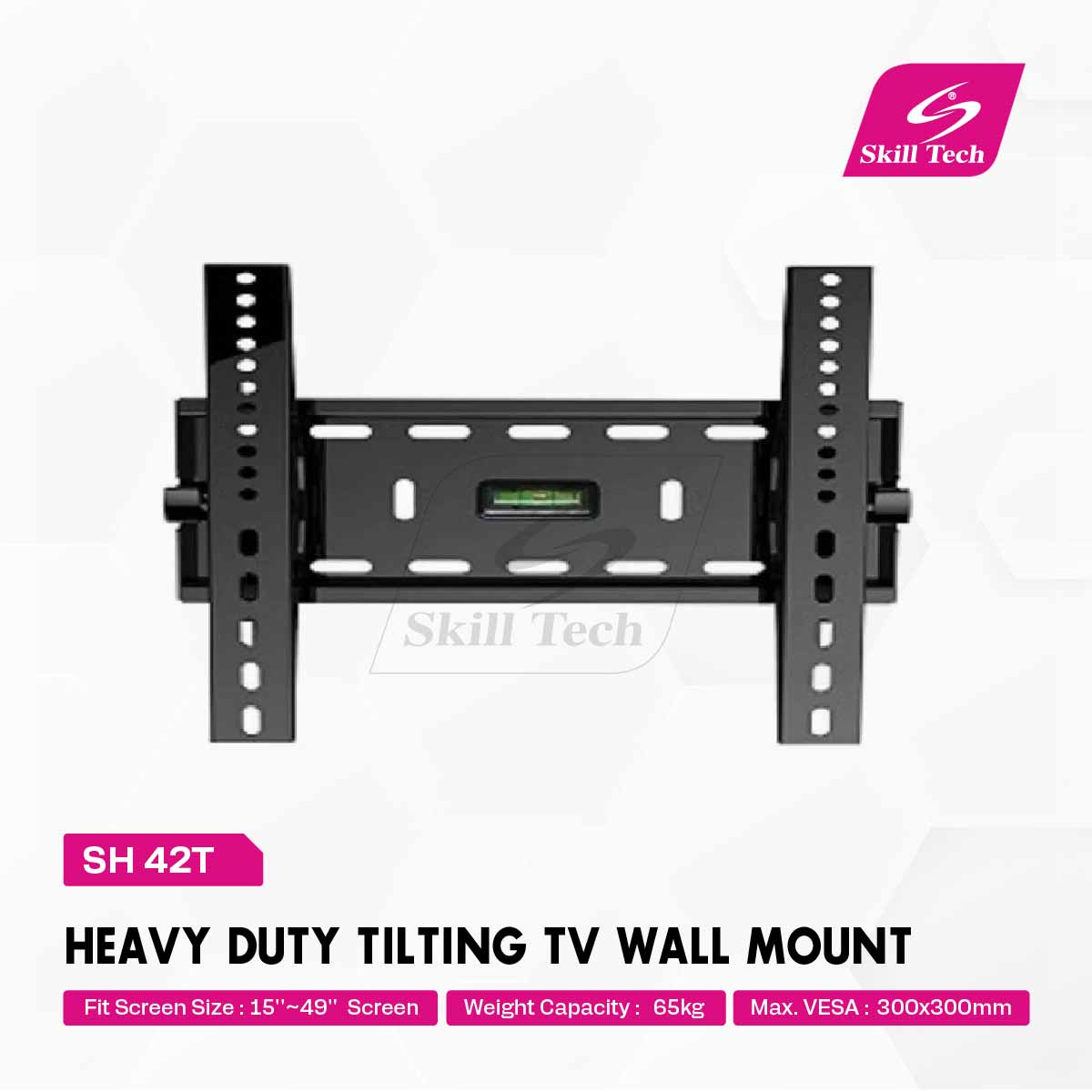

SH 42T
Heavy Duty Tilting TV Wall Mount
Screen Size15"~49"
Max VESA300x300mm
Weight Capacity65kg
Tilt Range+15° ~ -15°
Profile70mm
Overview
| Product Category | Tilt TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Max. VESA | 300x300mm |
|---|---|
| Weight Capacity | 65kg |
| Strength Tested | 3 Times Approved |
| Profile | 70mm |
| Tilt range | +15° ~ -15° |
| Product Category | Tilt TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Universal CompatibilityFits most 15"~49" screens, including curved TVs, with a maximum VESA of 300x300mm.
- Heavy-Duty ConstructionBuilt with durable steel and a matte black powder coating for long-lasting strength and stability.
- Tilt FunctionalityOffers a tilt range of +15°~-15° for customizable viewing angles.
- High Weight CapacitySupports up to 65kg, providing secure mounting for larger displays.
- Easy InstallationIncludes a hook-on bubble level and detachable panel for hassle-free setup.
Description
The SH 42T Heavy Duty Tilting TV Wall Mount is designed for 15"~49" screens, including curved TVs. With a robust steel construction and matte black powder coating, it offers a weight capacity of 65kg and a tilt range of +15°~-15° for optimal viewing angles. The mount features VESA & universal mounting patterns, a detachable panel, and a fixed wall plate. A hook-on bubble level is included for easy installation.

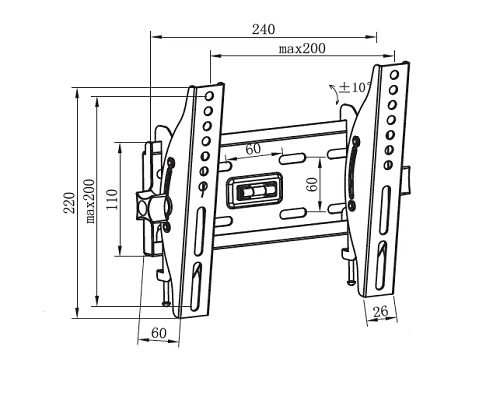

Drawing
