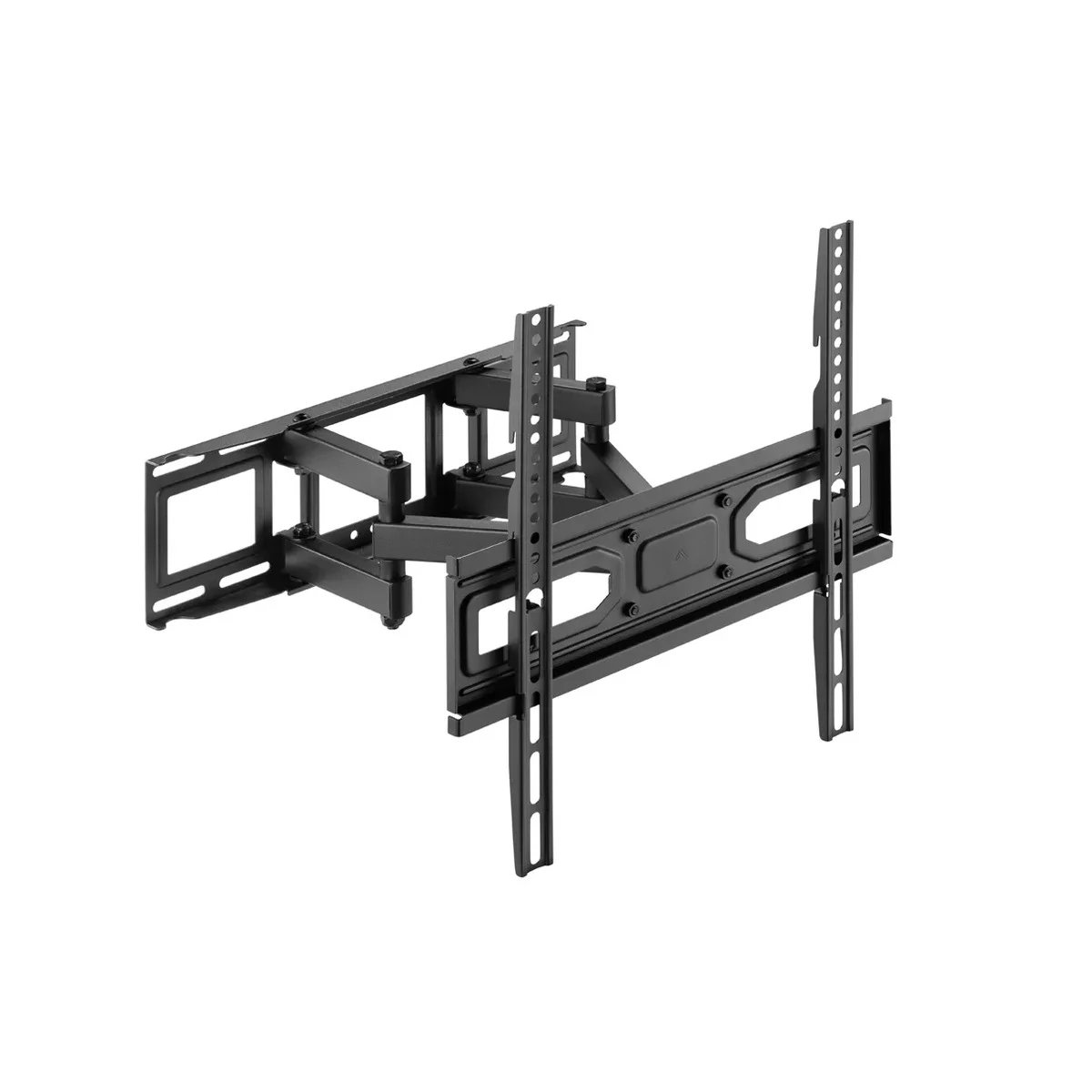

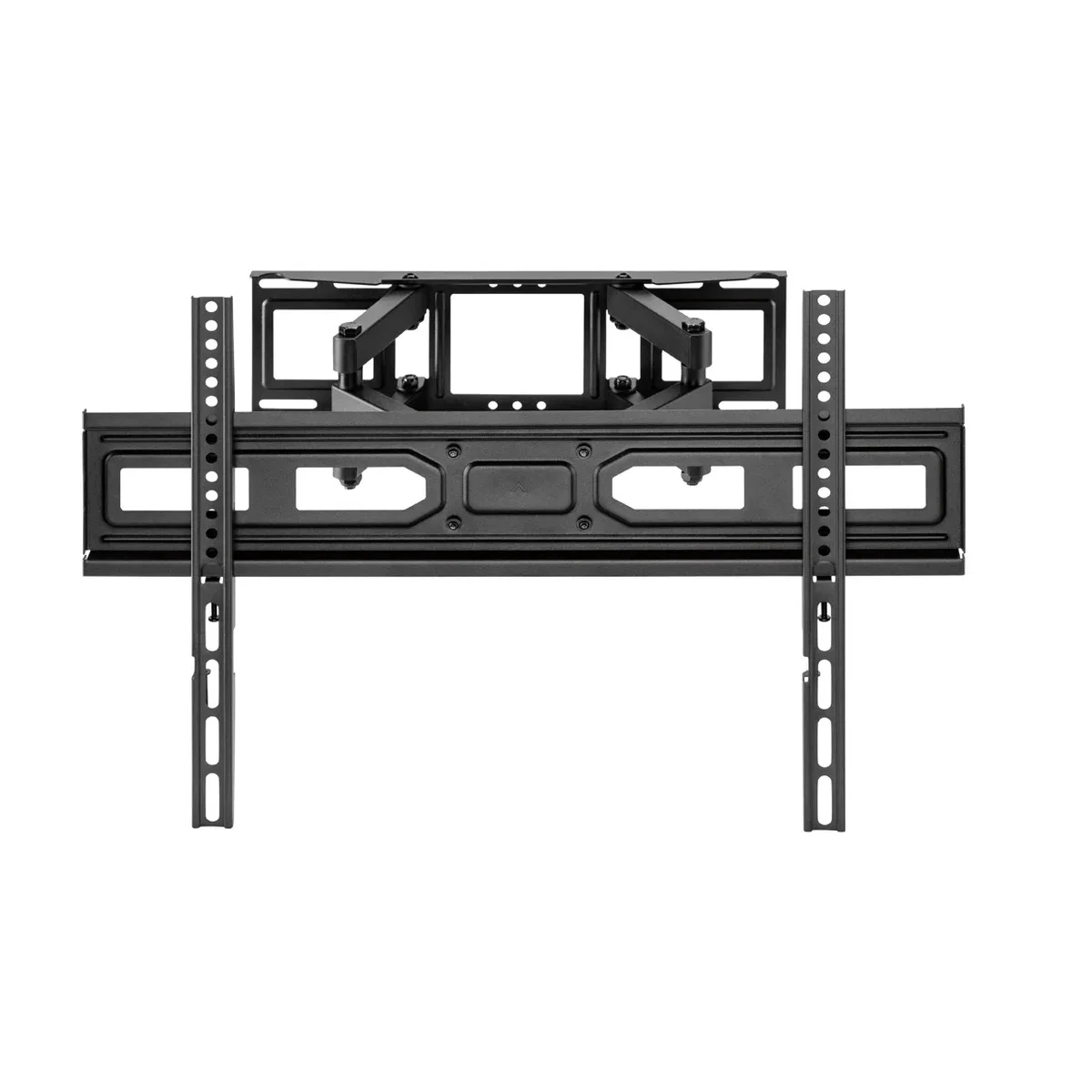

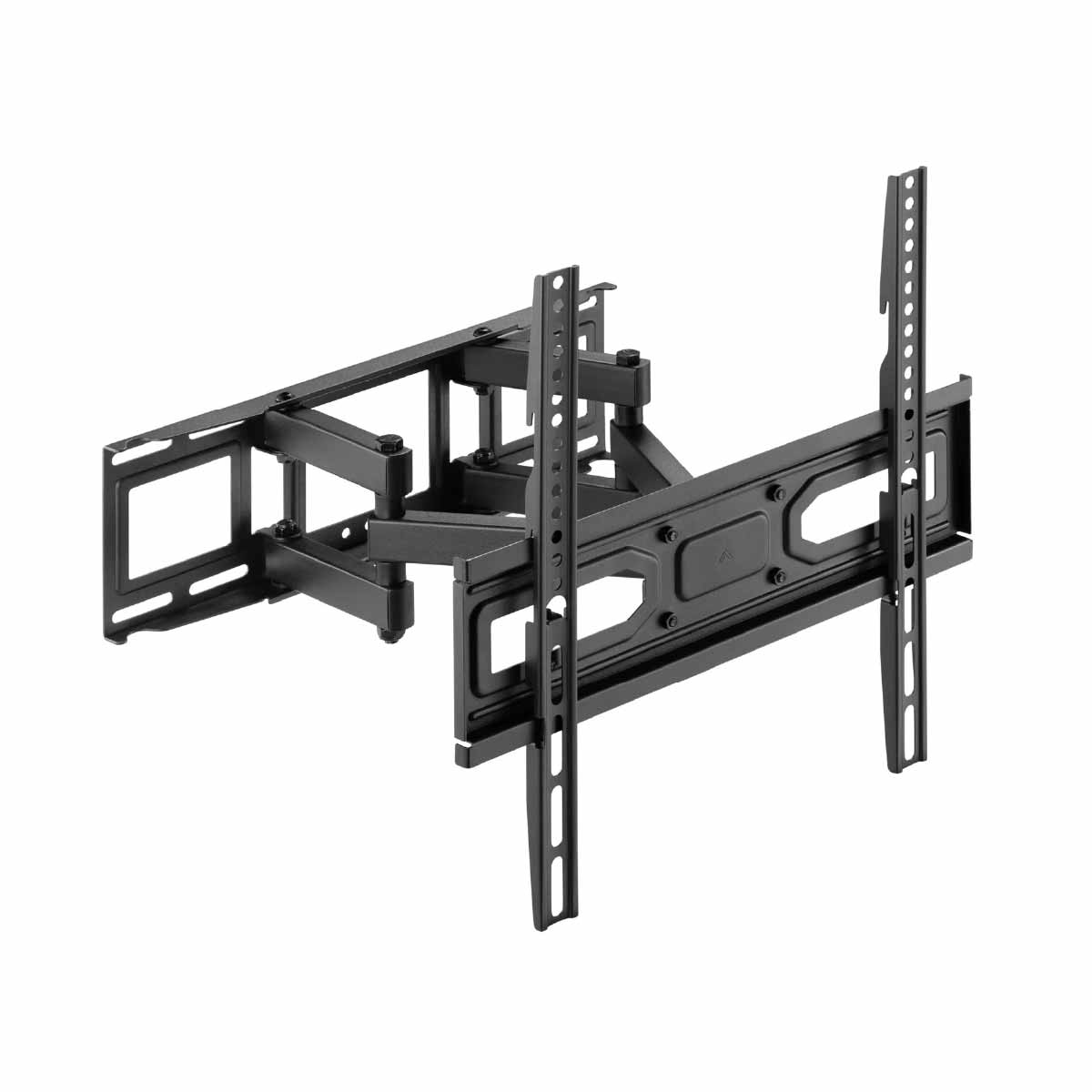

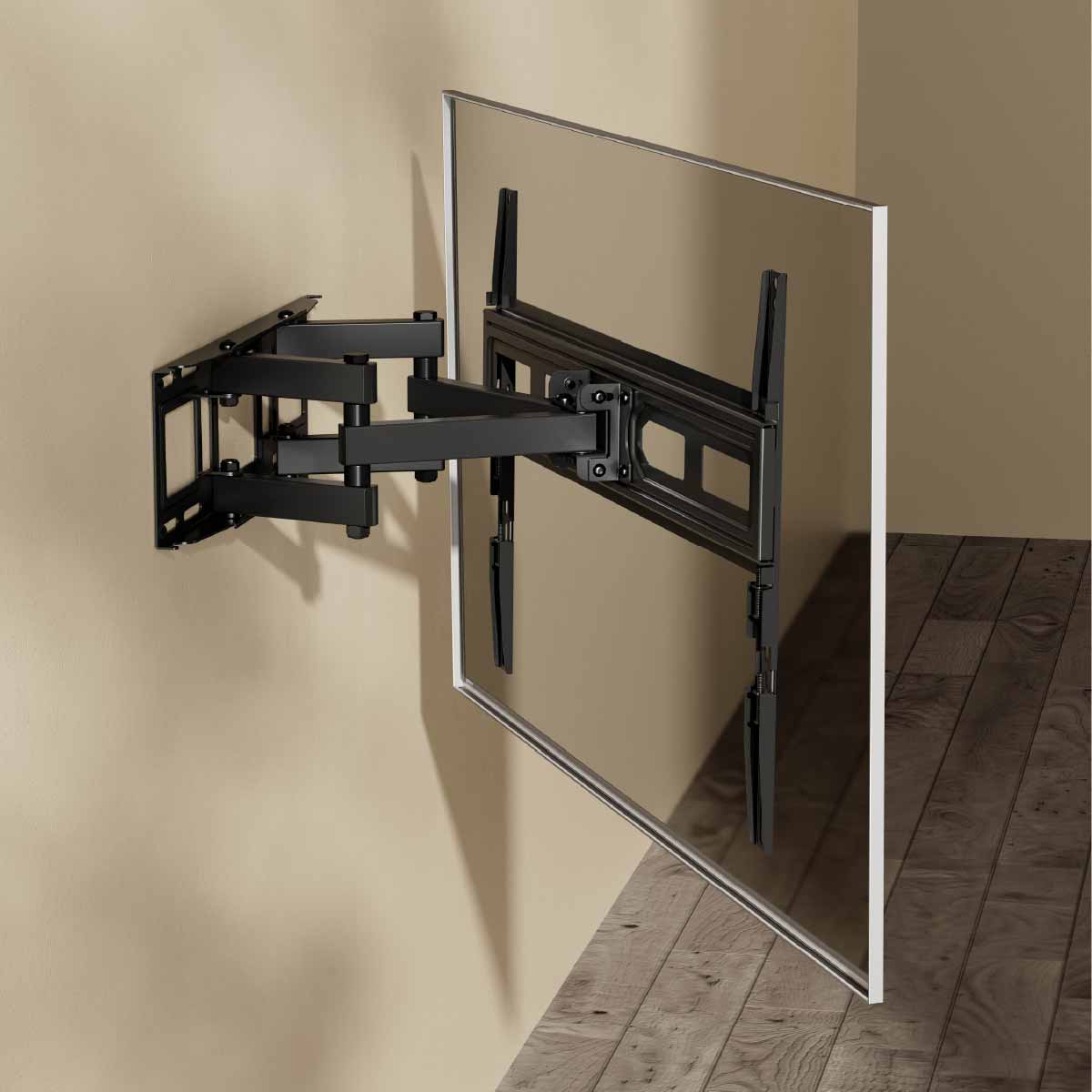

Full Motion LED / Curve TV Wall Mount

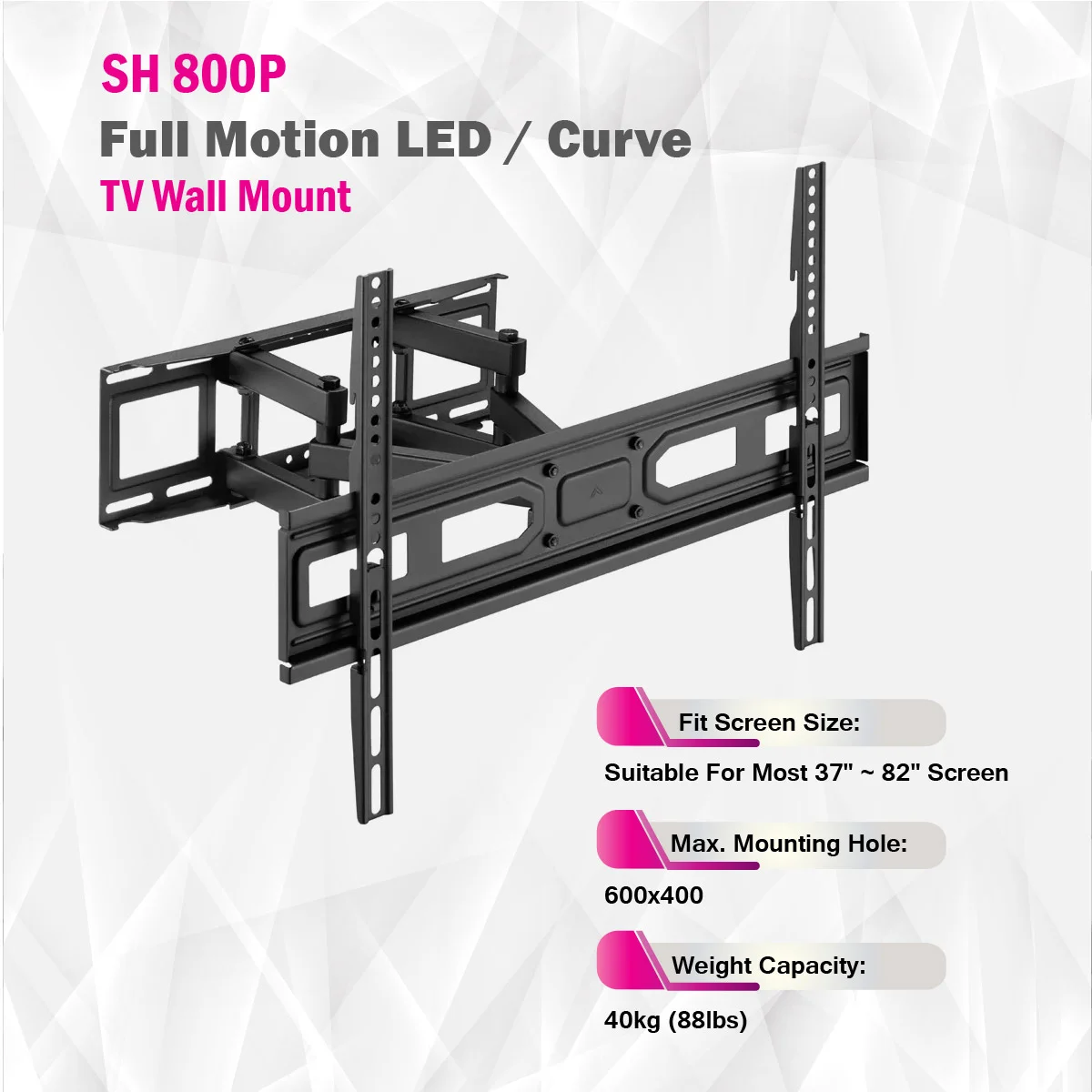

SH 800P Full Motion LED / Curve TV Wall Mount

Product Category:	Full-motion TV Wall Mount
Rank:	Economy
Material:	Steel,Plastic
Metal Sheet Thickness:	Bracket Arm THK=1.2mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.047" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.071" cold-rolled sheet)
Pipe Size:	30x20x1mm Square Steel Tube,30x20x1.5mm Square Steel Tube (1.2"x0.79"x0.039" Square Steel Tube,1.2"x0.79"x0.059" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black

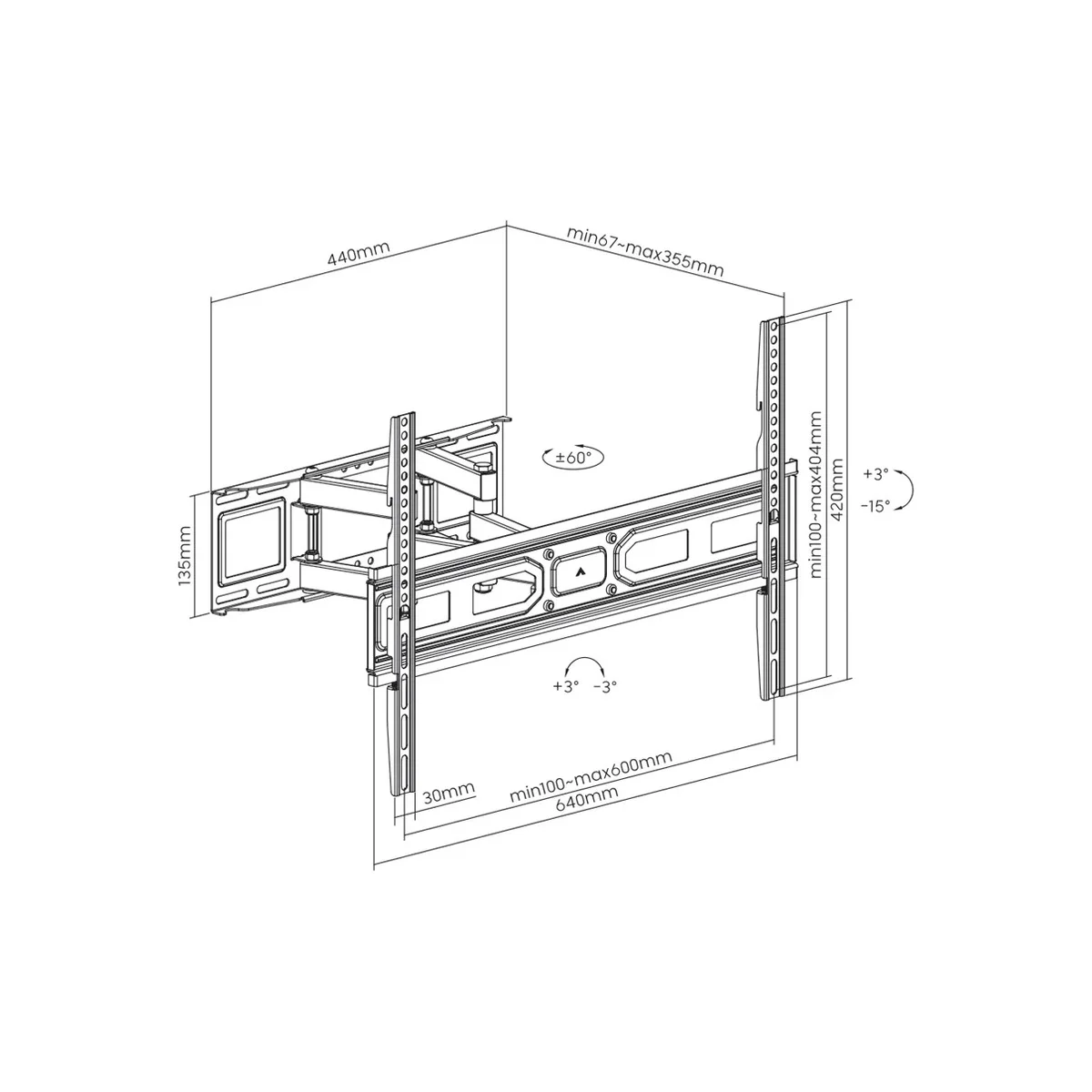

Dimensions:	355x640x420mm (14"x25.2"x16.5")
Fit Screen Size:	37"-80"
Fit Curved TV:	Yes
Mounting Hole Pattern :	VESA & Universal
VESA Compatible:	100x100,100x150,150x100,100x200,200x100,150x150,200x200,300x200,400x200,300x300,400x300,600x200,400x400,600x300,600x400
Max. Mounting Hole:	600x400
Weight Capacity:	40kg (88lbs)
Strength Tested:	2 Times Approved

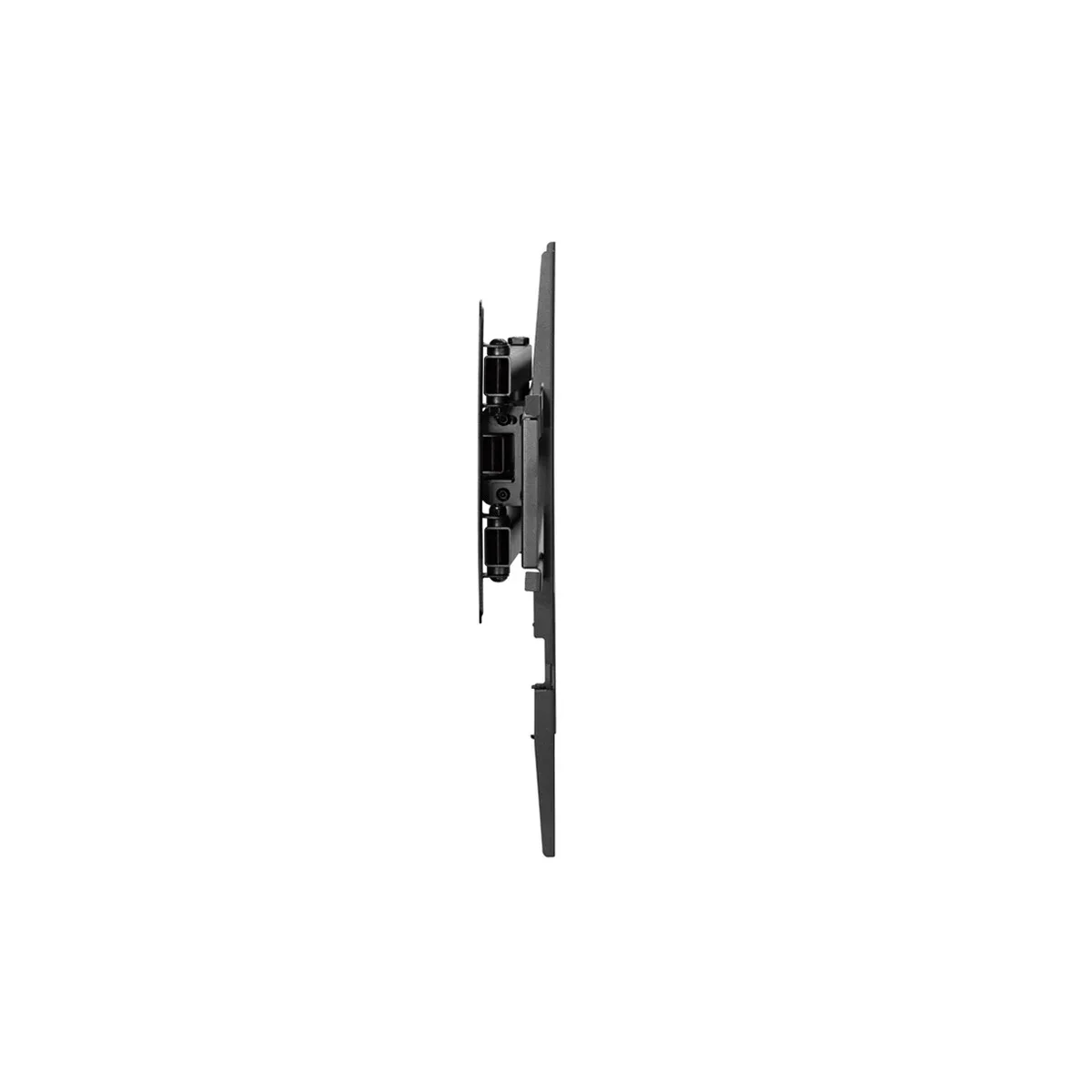

Profile:	67~355mm (2.6"~14")
Tilt Range:	+3°~-15°
Swivel Range:	+60°~-60°
Screen Level:	+3°~-3°
Screen Freely Tilting:	No
Installation:	Solid Wall,Double Stud(406mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Direction Indicator:	Yes
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
