DATA SHEET

Share on Social Media

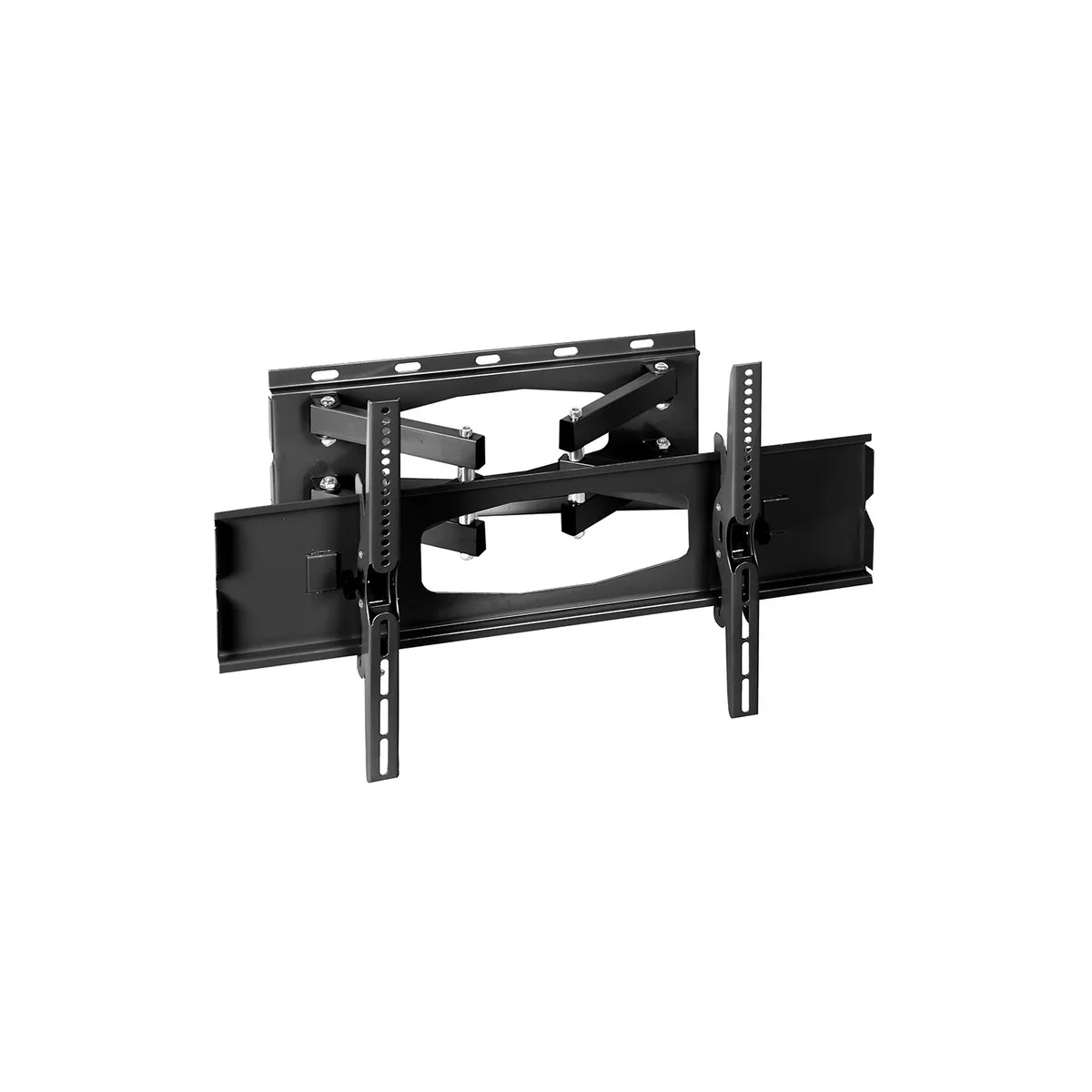

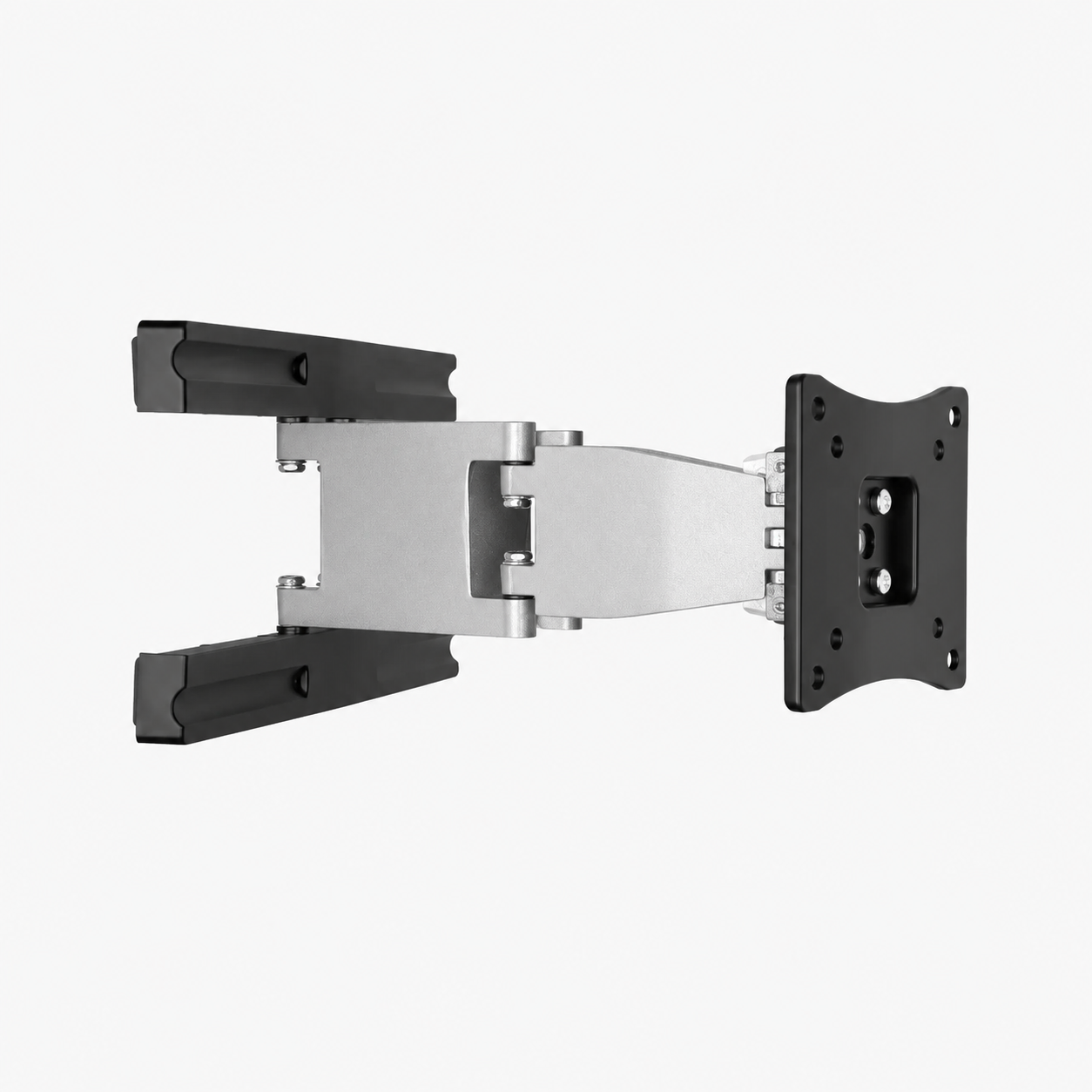

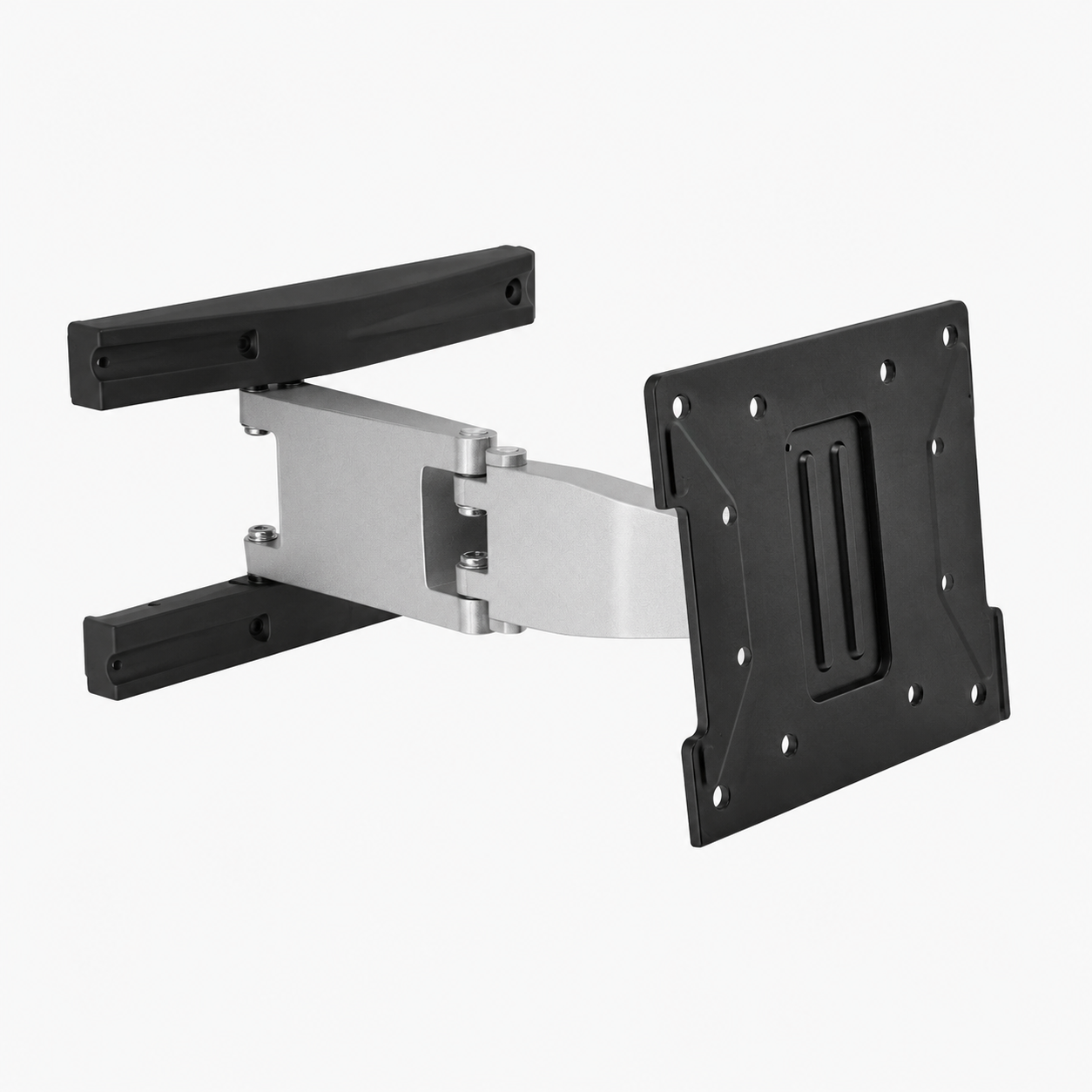

SH-666P Super Economy Double Arm Full-motion Tv Wall Mount

Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel,Aluminum,Plastic
Surface Finish: Powder Coating
Color: Metallic Grey, Matte Black

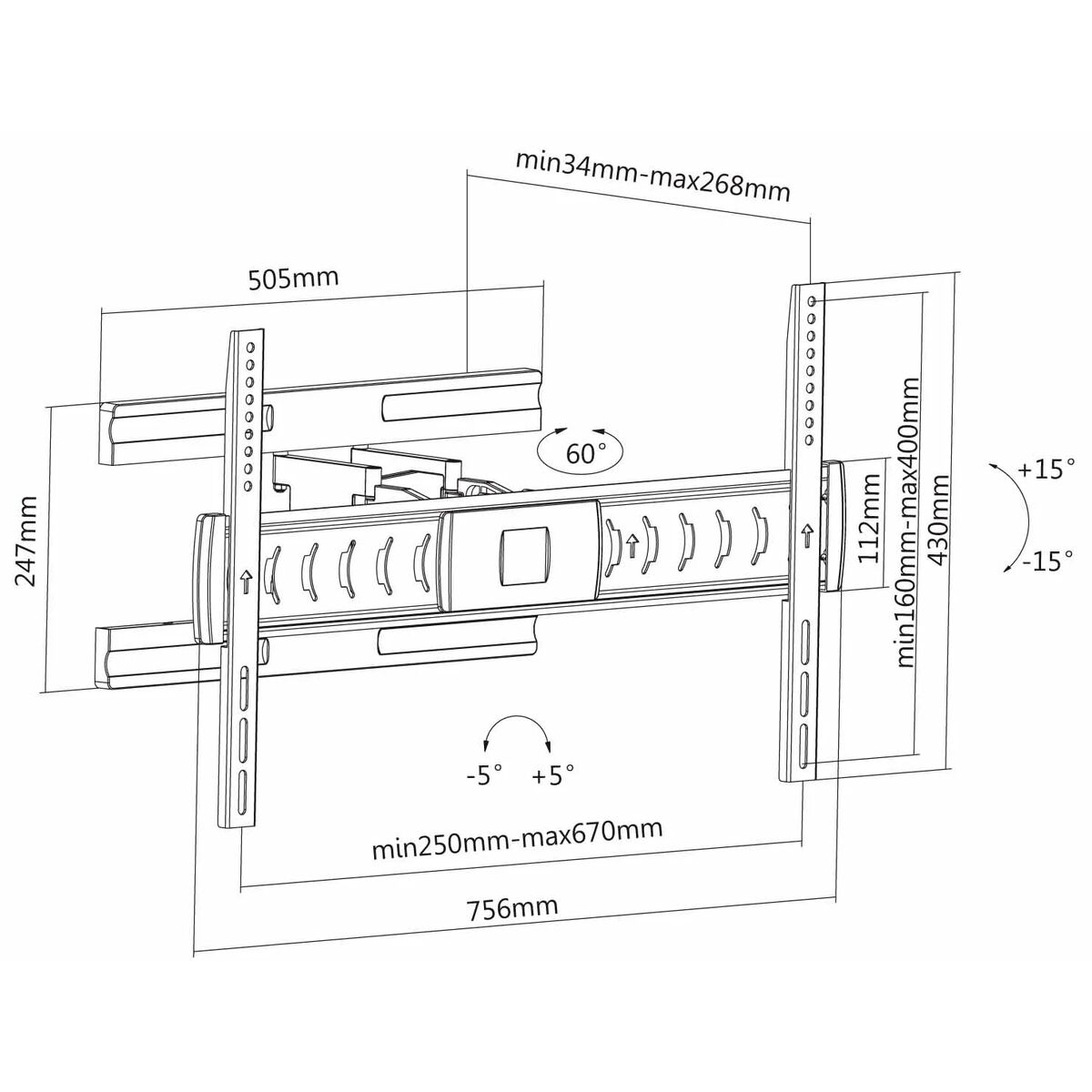

Dimensions: 430x756x268mm(16.9"x29.8"x10.6")
Fit Screen Size: 37"-70"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 300x300, 400x200,400x400, 600x400
Max. VESA: 670x400mm
Weight Capacity: 30kg
Strength Tested: 4 Times Approved
Profile: 34~268mm
Tilt Range: +15°~-15°
Swivel Range: +30° ~ -30°
Screen Level: +5°~-5°
Screen Freely Tilting: Yes
Installation: Double Stud(406mm/450mm),Solid Wall
Panel Type: Detachable Panel
  • DESCRIPTION
  • FEATURES
  • IMAGE

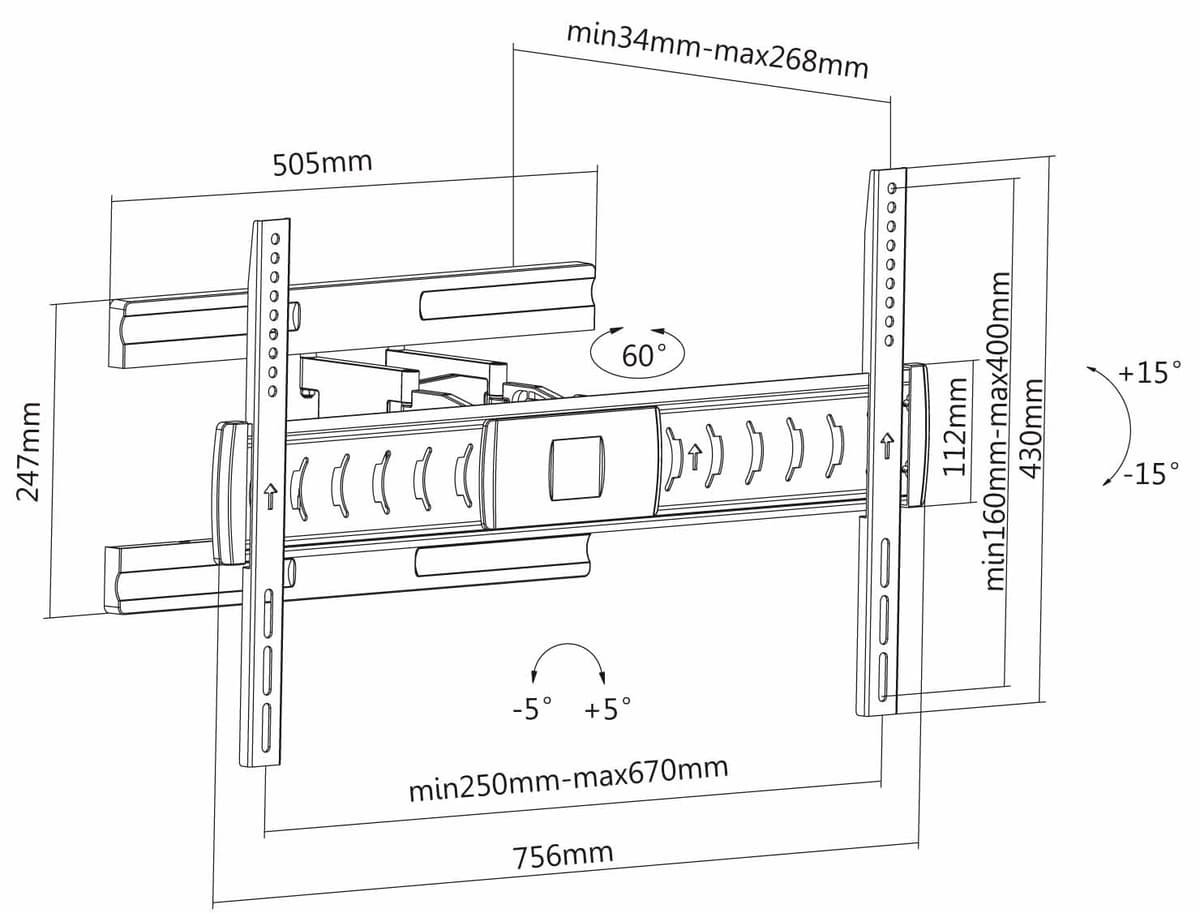

  • DRAWING

DESCRIPTION

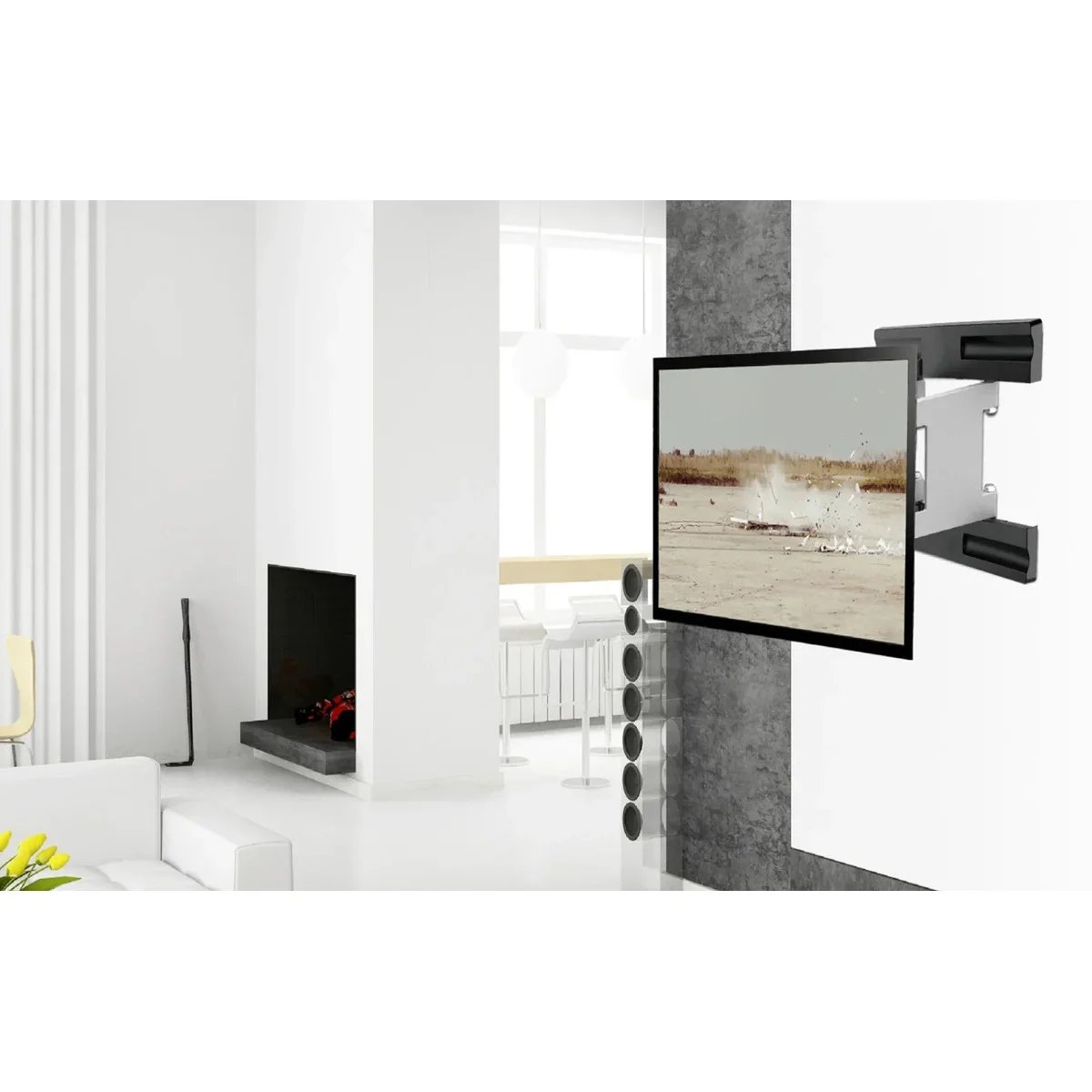

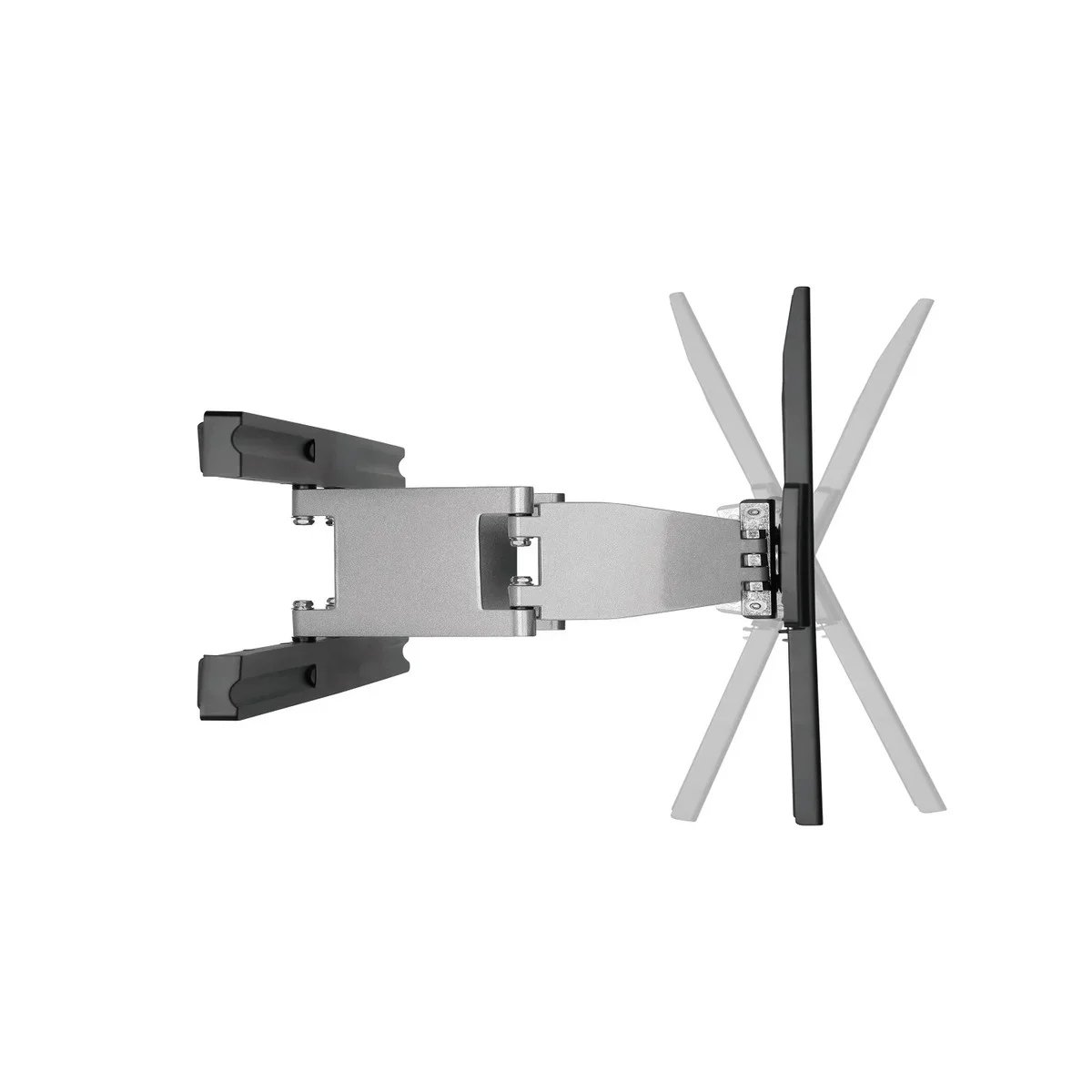

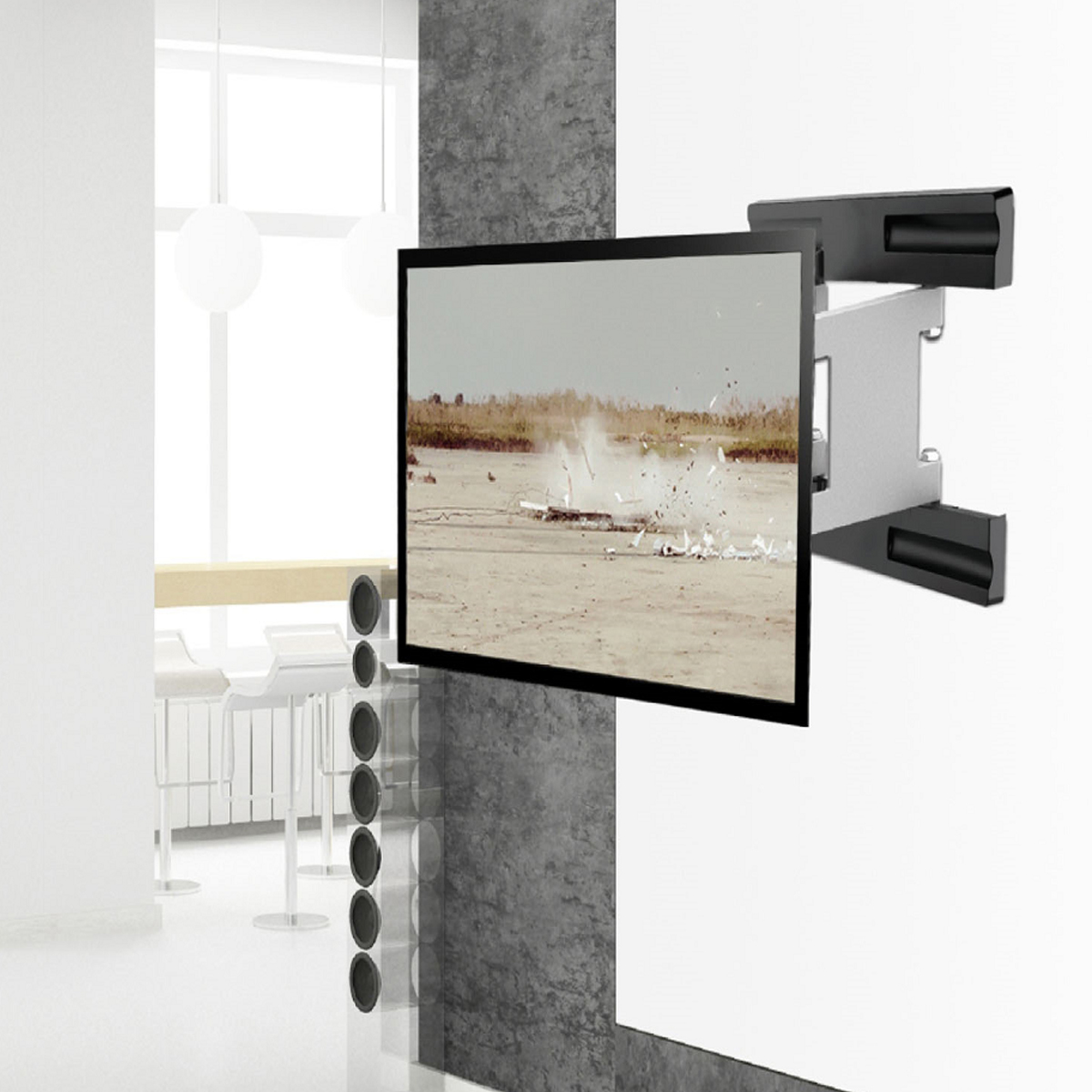

The Skill Tech’s SH 666P full-motion mount places 37"-70" TVs with a profile of 34 mm from the wall. it supports up to 30kg/66lbs, has passed a four times weight test, and got GS/UL approved. The cutting-edge gliding system makes ideal TV positioning effortless. The TV can easily extend away from the wall and shift left or right on the wall plate. The SH 666P always has a finished appearance with a decorative cover that conceals assembly and mounting hardware. Fit for 406/450mm stud.

FEATURES

Decorative Covers: for a more elegant look.

Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat).

Built-In Level Adjustment: ensures perfect positioning.

Slim Design: provides low profile.
