Back to Back Heavy-Duty TV Ceiling Mount

Home » TV Ceiling Mounts » TV Ceiling Mounts » Back to Back Heavy-Duty TV Ceiling Mount

DATA SHEET Quick Enquiry CBM CALCULATION

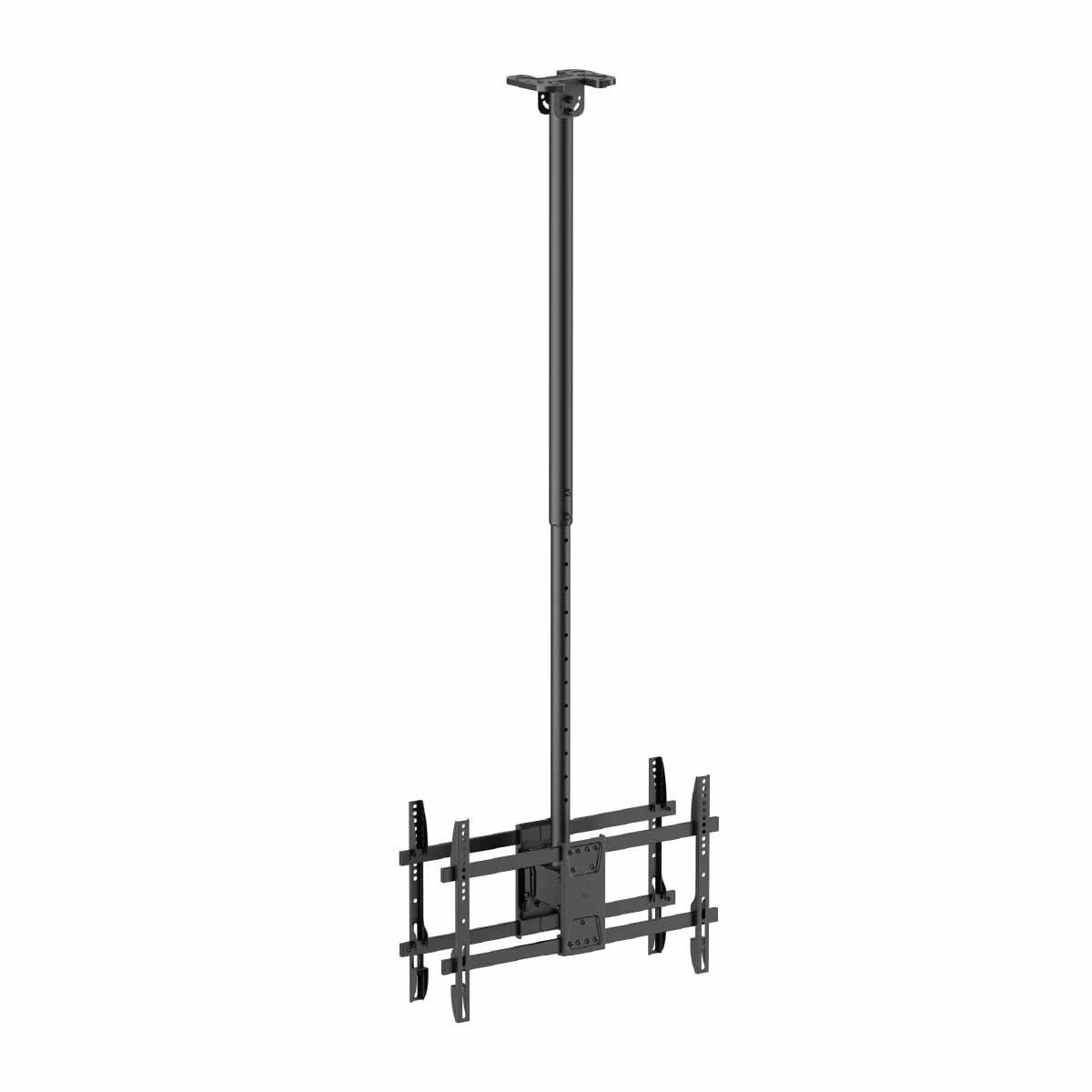

SH 024DC Back To Back Heavy-Duty TV Ceiling Mount

Product Category:	TV Ceiling Mount
Rank:	Standard
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Fit Screen Size:	Suitable for Most 43"~86" Screen
Fit Curved TV:	Yes
Max. VESA:	600x400mm
Weight Capacity:	50kgx2/110lbsx2
Tilt Range:	+5°~-20°
Screen Level:	+3°~-3°
Swivel Range:	+180°~-180°
Cable Management:	Yes

TV-CEILING-MOUNTS

Wide Compatibility – Fits most 43"–86" flat and curved TVs with max. VESA 600×400?mm.
Flexible Viewing – Offers +5° to -20° tilt, ±180° swivel, and ±3° screen leveling.
Heavy-Duty Capacity – Supports up to 50?kg (110?lbs) per side for secure mounting.
Durable Finish – Fine texture black powder coating for a sleek, modern look.
Cable Management – Keeps cables neatly organized and out of sight.

The SH 024DC is a heavy-duty TV ceiling mount designed for most 43"–86" screens, including curved TVs. With a robust weight capacity of 50kg per side, it ensures secure installation. Featuring a sleek fine texture black powder-coated finish, it offers flexible viewing with a tilt range of +5° to -20°, swivel range of ±180°, and screen leveling of ±3°. Integrated cable management keeps your setup neat and organized.
