SH 08PB
Solid Ceiling Projector Bracket
Max VESA130x470mm
Weight Capacity35kg
Profile745-1145mm
Tilt Range+20° ~ -20°
Swivel Range+8° ~ -8°
Overview
| Product Category | Projector Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte White |
| Tilt Range | +20° ~ -20° |
|---|---|
| Swivel Range | +8° ~ -8° |
| Rotation | +180° ~ -180° |
| Extension Range | 400mm |
| Installation | Ceiling Mounted |
| Product Category | Projector Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte White |
Features
- Heavy-Duty SupportHolds projectors up to 35kg securely.
- Flexible AdjustmentOffers ±20° tilt, ±8° swivel, and 360° rotation for precise positioning.
- Extension RangeExtends up to 400mm for optimal projector placement.
- Durable ConstructionMade from steel and plastic with a matte white powder-coated finish.
- Integrated Cable ManagementKeeps cables organized and hidden for a clean installation.
Description
The SH 08PB is a sturdy solid ceiling projector bracket designed for secure overhead installations. Made from steel and plastic with a matte white powder-coated finish, it supports projectors up to 35kg. Featuring ±20° tilt, ±8° swivel, and full 360° rotation, it offers flexible positioning. With a 400mm extension range, integrated cable management, and VESA compatibility up to 130x470mm, this bracket is ideal for professional AV setups and home theaters.

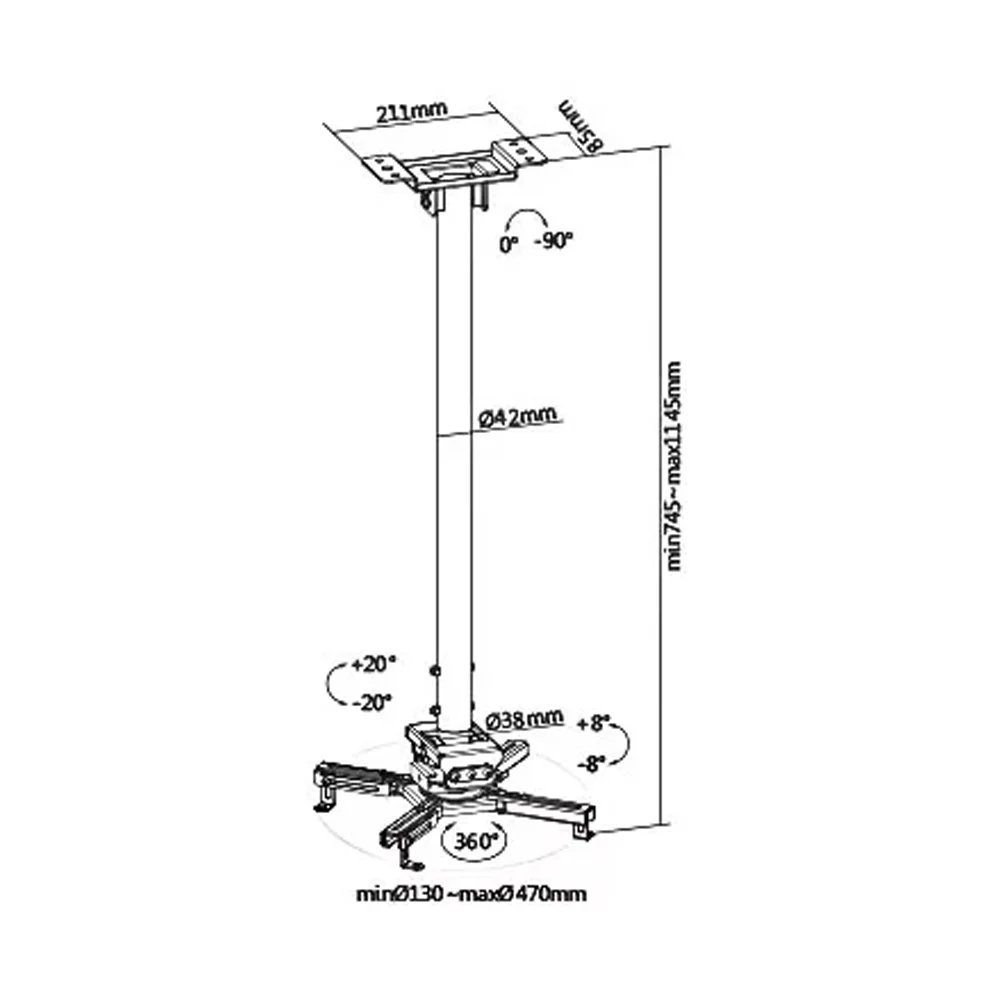

Drawing
