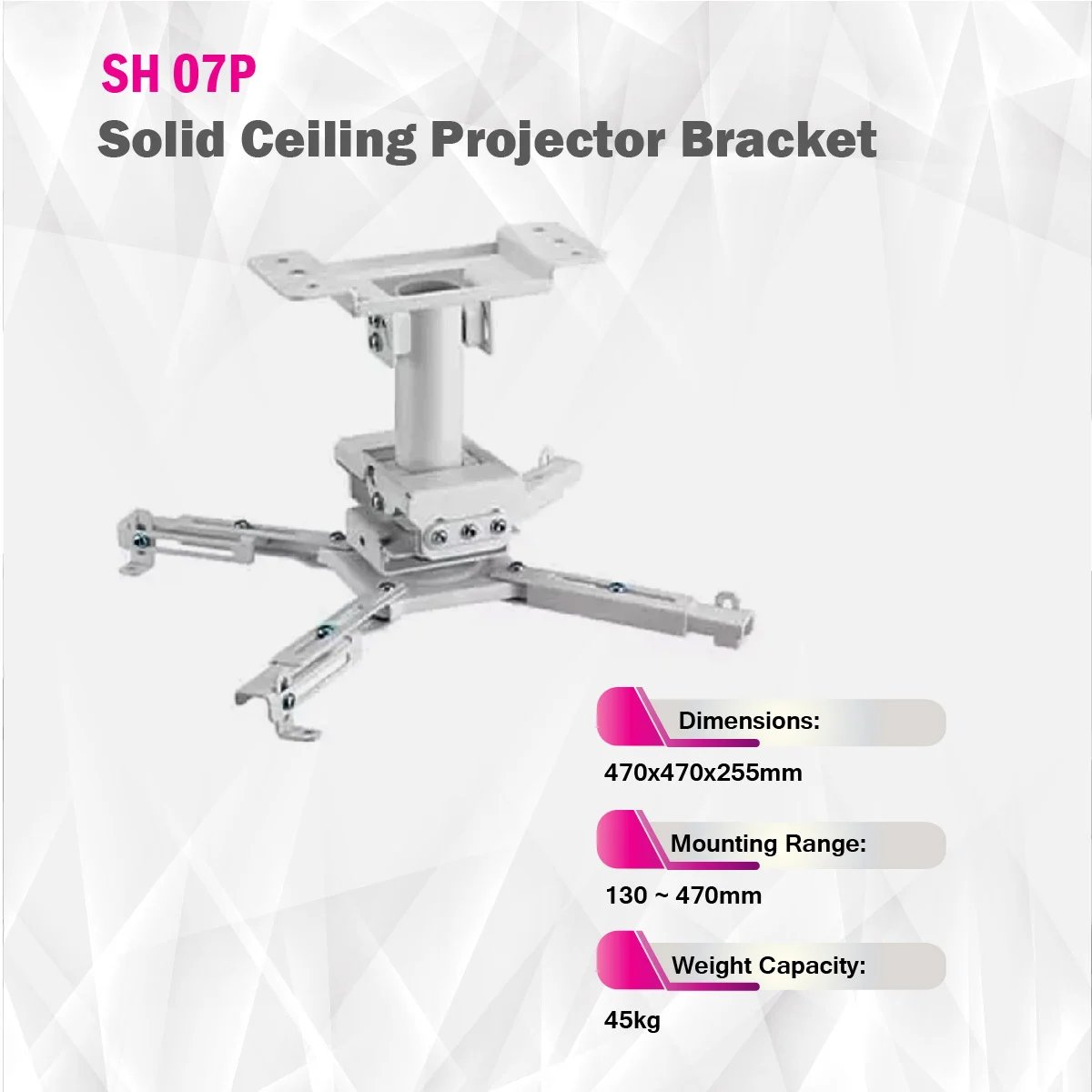

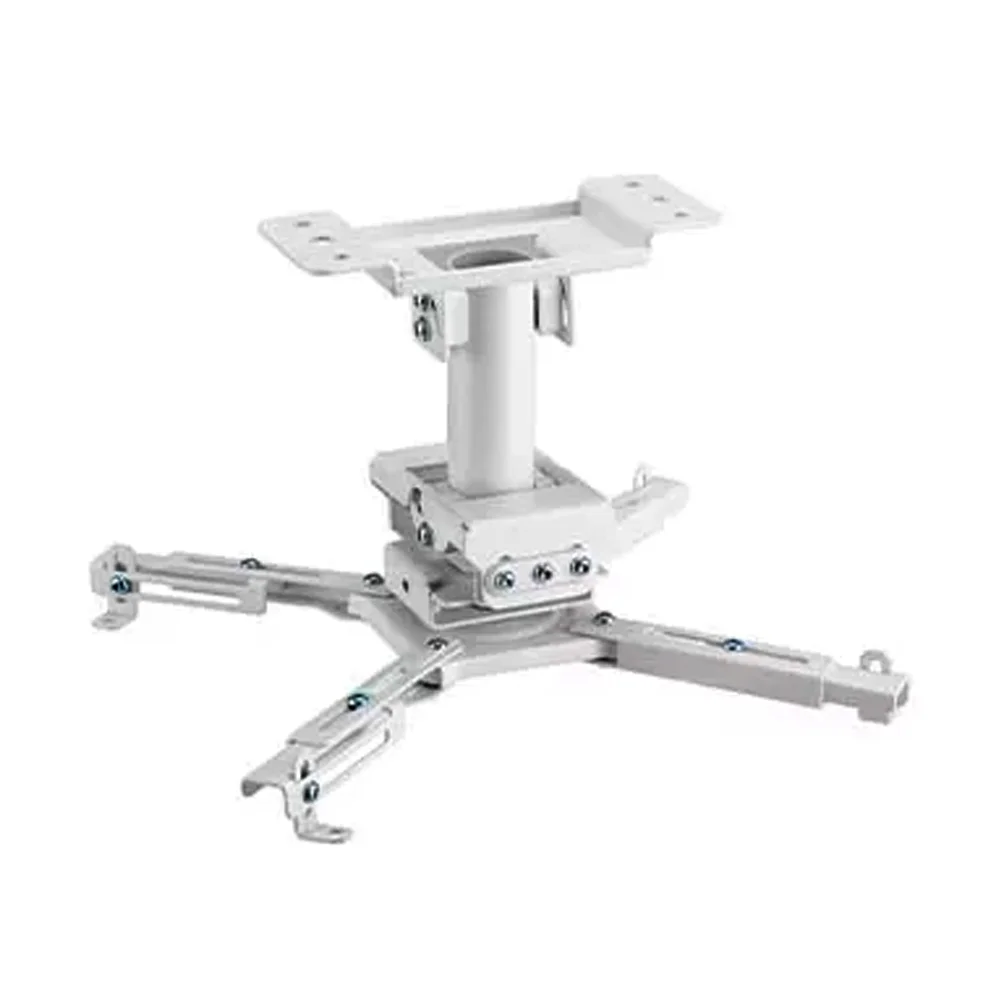

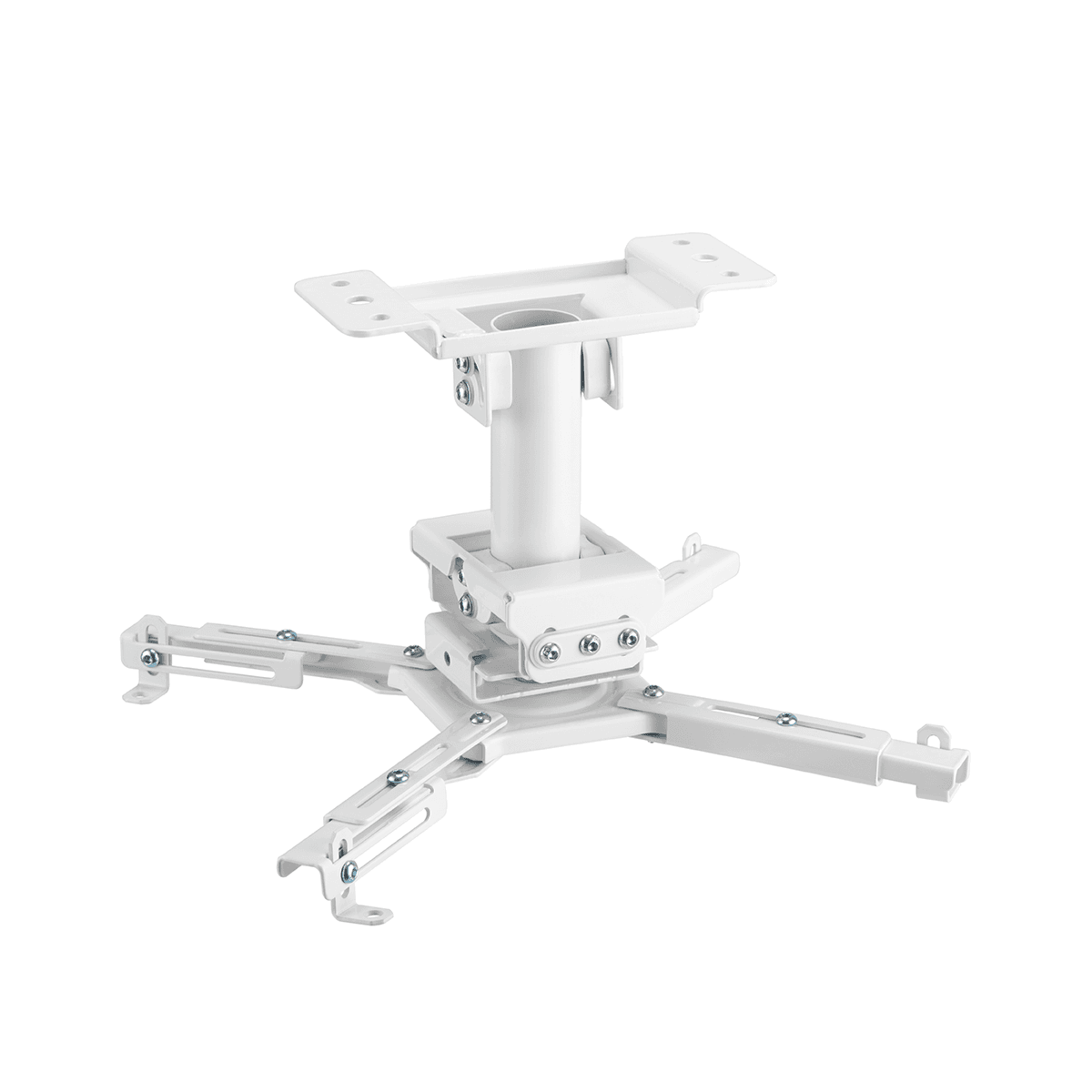

SH 07P
Solid Ceiling Projector Bracket
Max VESA130x470mm
Weight Capacity45kg
Profile255mm
Tilt Range+20° ~ -20°
Swivel Range+8° ~ -8°
Overview
| Product Category | Projector Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black,Matte White |
| Tilt Range | +20° ~ -20° |
|---|---|
| Swivel Range | +8° ~ -8° |
| Rotation | +180° ~ -180° |
| Extension Range | 255mm |
| Installation | Ceiling Mounted |
| Product Category | Projector Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black,Matte White |
Features
- High Weight CapacitySupports projectors up to 45kg for heavy-duty mounting.
- Flexible PositioningOffers ±20° tilt, ±8° swivel, and full 360° rotation for precise alignment.
- Compact ExtensionExtends up to 255mm for optimal projector placement.
- Durable ConstructionMade from steel and plastic with a powder-coated finish in matte black or white.
- Integrated Cable ManagementKeeps cables organized and concealed for a neat setup.
Description
The SH 07P is a solid ceiling projector bracket designed for secure mounting of projectors up to 45kg. Available in matte black and white finishes, it features a sturdy steel and plastic construction with a powder-coated surface. Offering ±20° tilt, ±8° swivel, and 360° rotation, along with a 255mm extension range, this ceiling-mounted bracket includes integrated cable management for a clean, professional installation in any AV setup.
Product Video

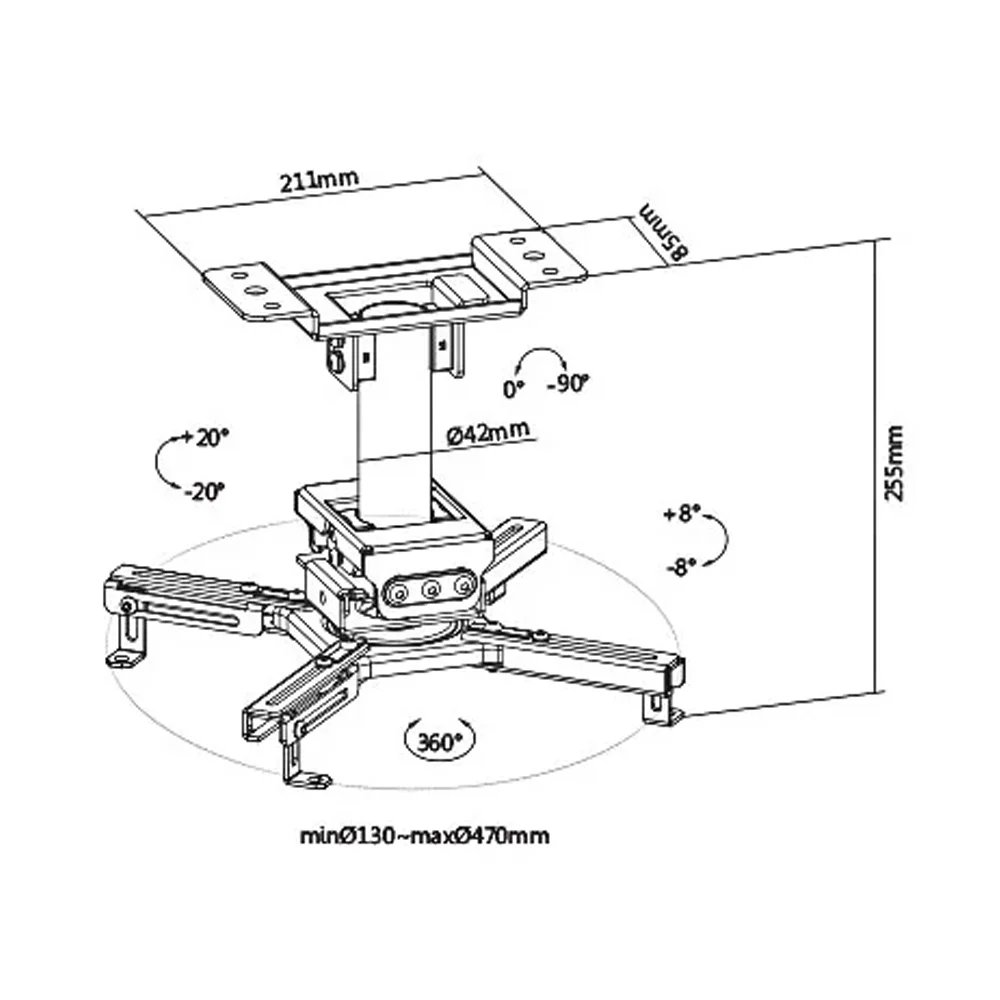

Drawing
