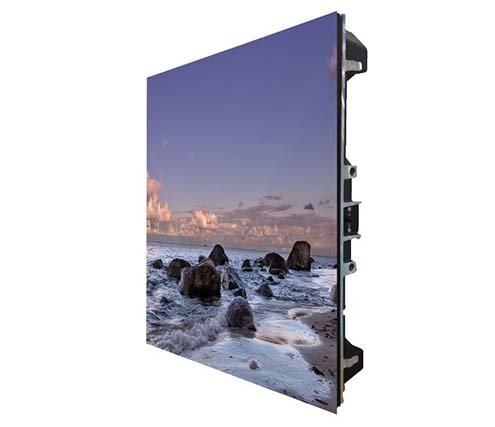

MW7818-FI-YC
Indoor Fixed LED Display Unit
Overview
| Pixel Pitch | P1.8 |
|---|---|
| Module Resolution (W*H) | 172x86 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | 640x480x67.6 |
| Warranty | 2 year |
| Viewing Angle | 140°/140° |
|---|---|
| Brightness | 600 |
| Power Supply | AC 100-240V |
| Pixel Density ; | 288906 |
| Single Pixel Brightness Correcti on | Support |
| Pixel Pitch | P1.8 |
|---|---|
| Module Resolution (W*H) | 172x86 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | 640x480x67.6 |
| Warranty | 2 year |
Features
- Ultra-Fine Pixel PitchP1.8 with 288,906 pixels/m² for detailed image quality.
- Advanced Visual Performance344×258 cabinet resolution and brightness correction support.
- Wide Viewing Angle140° horizontal and vertical ensures consistent visibility.
- Durable & LightweightDie-cast aluminum cabinet for strength and heat dissipation.
- Reliable OperationLong lifespan, 600 nits brightness, and 2-year warranty for peace of mind.
Description
The MW7818-FI-YC is a premium indoor fixed LED display unit with a fine pixel pitch of P1.8 and ultra-high pixel density of 288,906 pixels/m². Featuring a 344×258 cabinet resolution and a die-cast aluminum body, it delivers vivid, sharp visuals with 600 nits brightness and a wide 140° viewing angle. Designed for professional indoor applications, it includes single pixel brightness correction and comes with a 2-year warranty for dependable performance.
Drawing
No drawing available
