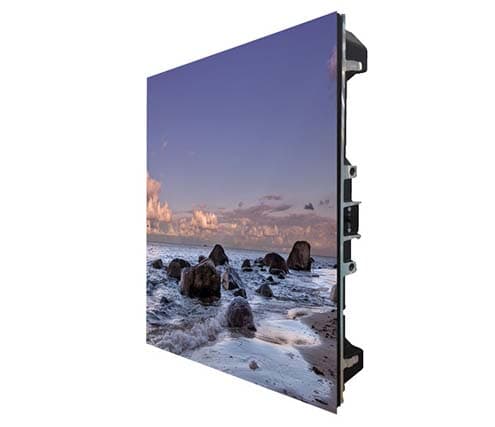

MW7712-FI-EC
Indoor Fixed LED Display Unit
Overview
| Pixel Pitch | P1.2 |
|---|---|
| Module Resolution (W*H) | 240x135 |
| Module Dimension (mm) | 300x168.75 |
| Cabinet Dimension (W*H*D) (mm) | 600x337.5x32.3 |
| Warranty | 2 year |
| Viewing Angle | 160°/140° |
|---|---|
| Brightness | 600 |
| Power Supply | AC 200 to 240V |
| Pixel Density | 640000 |
| Grayscale | 14bit |
| Pixel Pitch | P1.2 |
|---|---|
| Module Resolution (W*H) | 240x135 |
| Module Dimension (mm) | 300x168.75 |
| Cabinet Dimension (W*H*D) (mm) | 600x337.5x32.3 |
| Warranty | 2 year |
Features
- Ultra-High Pixel DensityP1.2 pitch with 640,000 pixels/m² for exceptional clarity.
- Wide Viewing Angle160° horizontal and 140° vertical visibility for maximum audience coverage.
- Lightweight DesignOnly 4.3 kg per cabinet with a slim 32.3 mm depth.
- Vivid Image Quality14-bit grayscale and 600 nits brightness for smooth, rich visuals.
- Durable & EfficientDie-cast aluminum body with AC 200–240V power and RoHS-compliant build.
Description
The MW7712-FI-EC is an ultra-fine pixel pitch indoor LED display with P1.2 resolution, delivering stunning detail with a pixel density of 640,000 pixels/m². Its compact, lightweight die-cast aluminum cabinet (only 4.3 kg) features a resolution of 480×270 and 600 nits brightness. With a wide 160°/140° viewing angle, 14-bit grayscale, and 2-year warranty, it’s ideal for premium indoor installations like control rooms, conference halls, and retail environments.
Drawing
No drawing available
