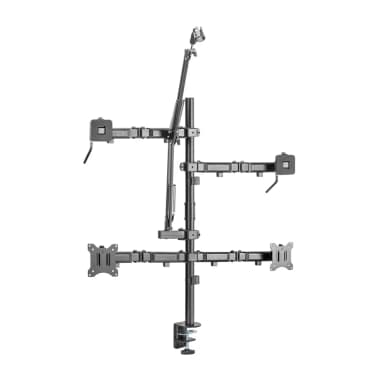

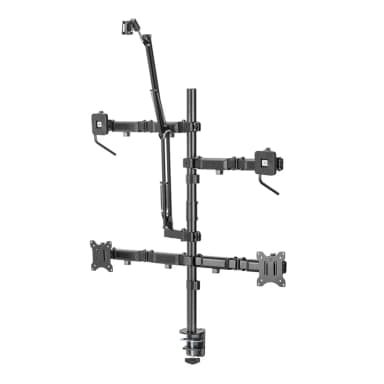

SH MDS10 Dual-Monitor All-In-One Studio Setup Steel Desktop Mount

Product Category: All-In-One Studio Setup Desktop Stand
Rank: Standard
Material: Steel
Surface Finish: Powder Coating
Colour: Fine Texture Black

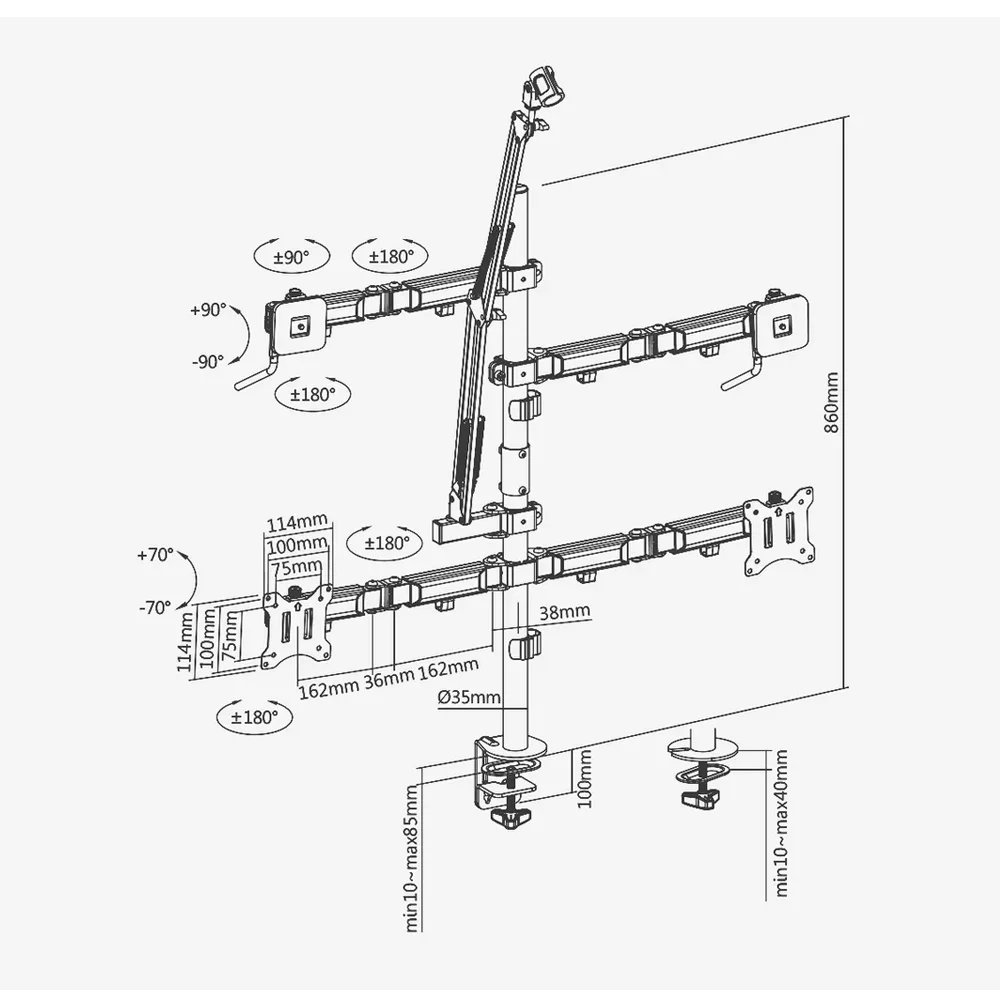

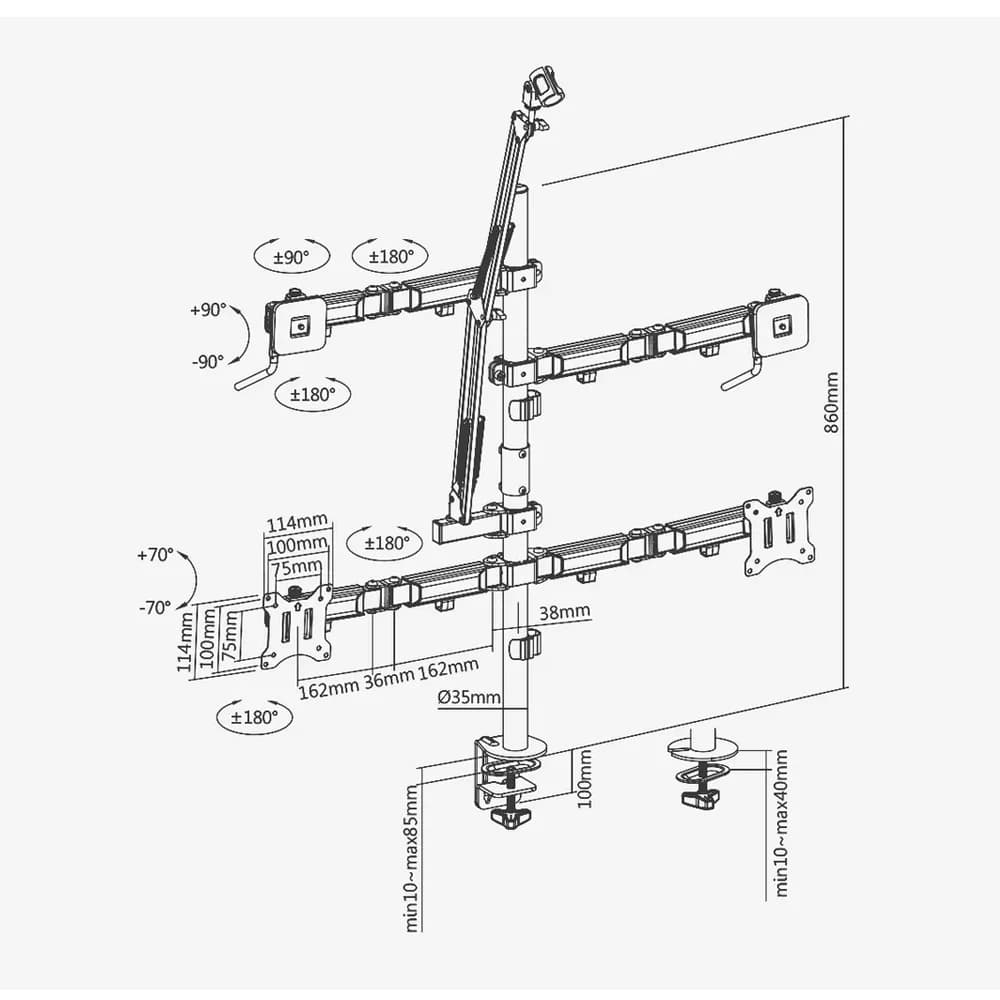

Dimensions: 910x120x1000mm (35.8"x4.7"x39.4")
Vertical Shaft Tube Height: 860mm (33.9")
Arm Full Extension: 398mm (15.7")
Quick Release VESA Plate: Yes
Cable Management: Yes
Installation: Clamp, Grommet
Weight Capacity (Microphone): 1kg (2.2lbs)
Microphone Holder Type: 3/8'',5/8''
Microphone Boom Arm Length: 640mm (25.2")
Vertical Shaft Locking Type: Plastic?PA) Twist Lock
Microphone Height Range: 680mm (26.8")
Microphone Base Type: Steel Base
Fit Screen Size: Suitable For Most 17" ~ 32" Screen
Fit Curved Monitor: Yes
Screen Quantity: 2
Weight Capacity (per screen): 9kg (19.8lbs)
VESA Compatible: 75x75,100x100
Screen Tilt Range: +70° ~ -70°
Screen Swivel Range: +90° ~ -90°
Screen Rotation: +180° ~ -180°
Weight Capacity (Light): 7kg (15.4lbs)
Light Holder Type: 1/4'',3/8''
Weight Capacity (Camera) : 7kg (15.4lbs)
Camera Holder Type: 1/4'',3/8''
Camera Tilt Range: +90° ~ -90°
Camera Swivel Range: +90° ~ -90°
Camera Rotation: +180° ~ -180°
Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag
Instruction Manual Included: Yes

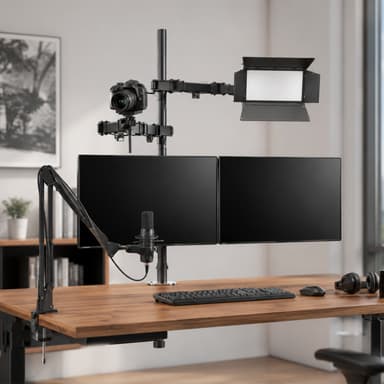

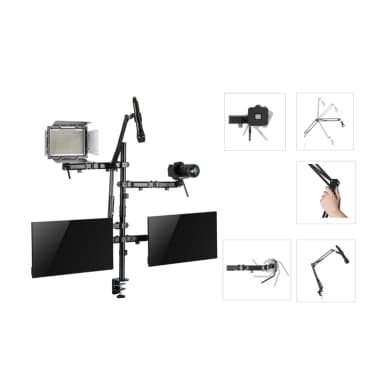

The SH MDS10 is an all-in-one studio setup steel desktop mount designed to provide comprehensive support for a dual-monitor configuration along with additional equipment. This versatile setup features a robust steel construction with a fine texture black powder-coated finish, ensuring stability and durability.The mount is equipped to hold two screens ranging from 17" to 32" in size, including curved monitors, with a weight capacity of up to 9kg (19.8lbs) per screen. It offers a wide range of ergonomic adjustments, including a +70° to -70° tilt range, +90° to -90° swivel range, and 180° screen rotation, allowing users to customize their screen positions for optimal viewing comfort.In addition to dual monitors, the SH MDS10 accommodates a microphone and a camera with dedicated holders and adjustable features. The microphone holder supports 3/8'' and 5/8'' microphone boom arms with a maximum weight capacity of 1kg (2.2lbs). The camera holder supports 1/4'' and 3/8'' camera attachments with a weight capacity of 7kg (15.4lbs) and provides versatile tilt, swivel, and rotation adjustments for camera positioning.Cable management features are included to help keep cables organized and tidy. The mount can be installed using either a clamp or grommet, and it comes with a vertical shaft tube with a height of 860mm (33.9") for flexible setup options. A quick-release VESA plate simplifies screen attachment, and the package includes an accessory kit with normal/ziplock polybags and a compartment polybag. The SH MDS10 offers a comprehensive studio setup solution, ideal for content creators and professionals seeking a versatile and organized workspace.

Space-Saving Design: free up and gain additional desktop workspace.

High Compatibility: support most popular devices.

Full Range of Motion: live stream in total comfort.

Sturdy Steel Construction provides a solid and long-lasting performance.

Cable Management: keep everything organized.

All-In-One Studio Setup Mount, Mic Arm, Microphone Boom Arm, Live Broadcast Desk Mount, Camera Desk Mount, Light Desk Mount, Live Streaming Desk Mount, Microphone Desk Mount.
