SH 203
200x200 VESA Extension Adapter Arm
Screen Size23''~42''
Max VESA200x200mm
Weight Capacity30kg
Overview
| Product Category | VESA Adapter |
|---|---|
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | 1.5mm (0.059") |
| Surface Finish | Powder Coating |
| Fit Screen Size | Suitable For Most 23"~42" Screen |
|---|---|
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| Max. VESA | 200x200mm |
| Profile | 10mm |
| Product Category | VESA Adapter |
|---|---|
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | 1.5mm (0.059") |
| Surface Finish | Powder Coating |
Features
- Universal CompatibilitySupports most 23"~42" flat and curved TVs with VESA and universal mounting patterns.
- Robust ConstructionMade of 1.5mm thick steel with a fine texture black powder-coated finish for durability.
- High Weight CapacityHolds up to 30kg (66lbs), ensuring strong and stable support.
- Max VESA SupportExtends mounting capability up to 200x200mm.
- Fixed DesignIncludes a fixed panel and wall plate for secure, stable installation.
Description
The SH 203 200x200 VESA Extension Adapter Arm is a durable and versatile mounting solution, crafted from 1.5mm thick steel with a fine texture black powder-coated finish. Designed for most 23"–42" flat or curved TVs, it supports up to 30kg. Compatible with VESA and universal mounting patterns up to 200x200mm, this fixed panel adapter ensures secure, stable installation with a fixed wall plate for effortless compatibility and support.

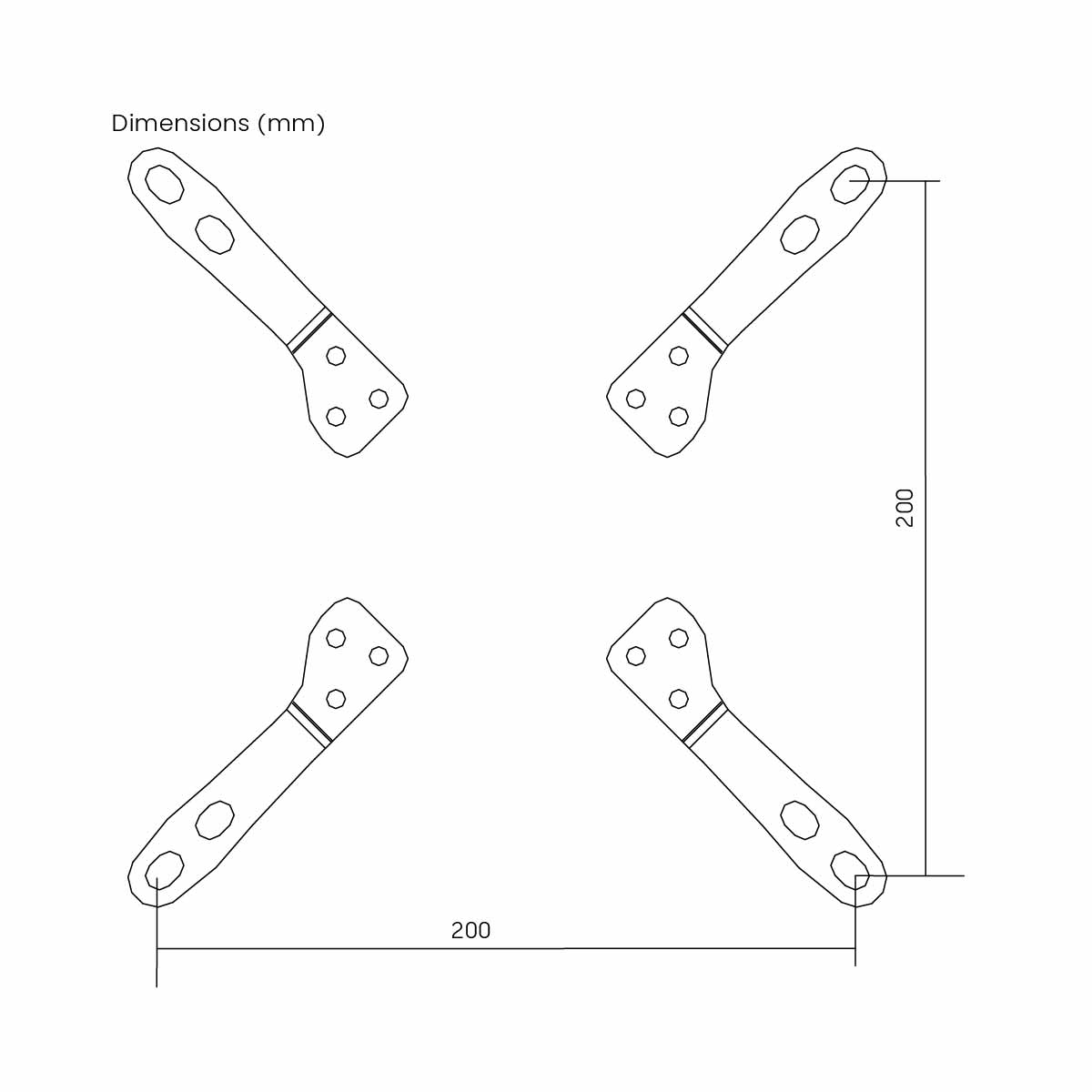

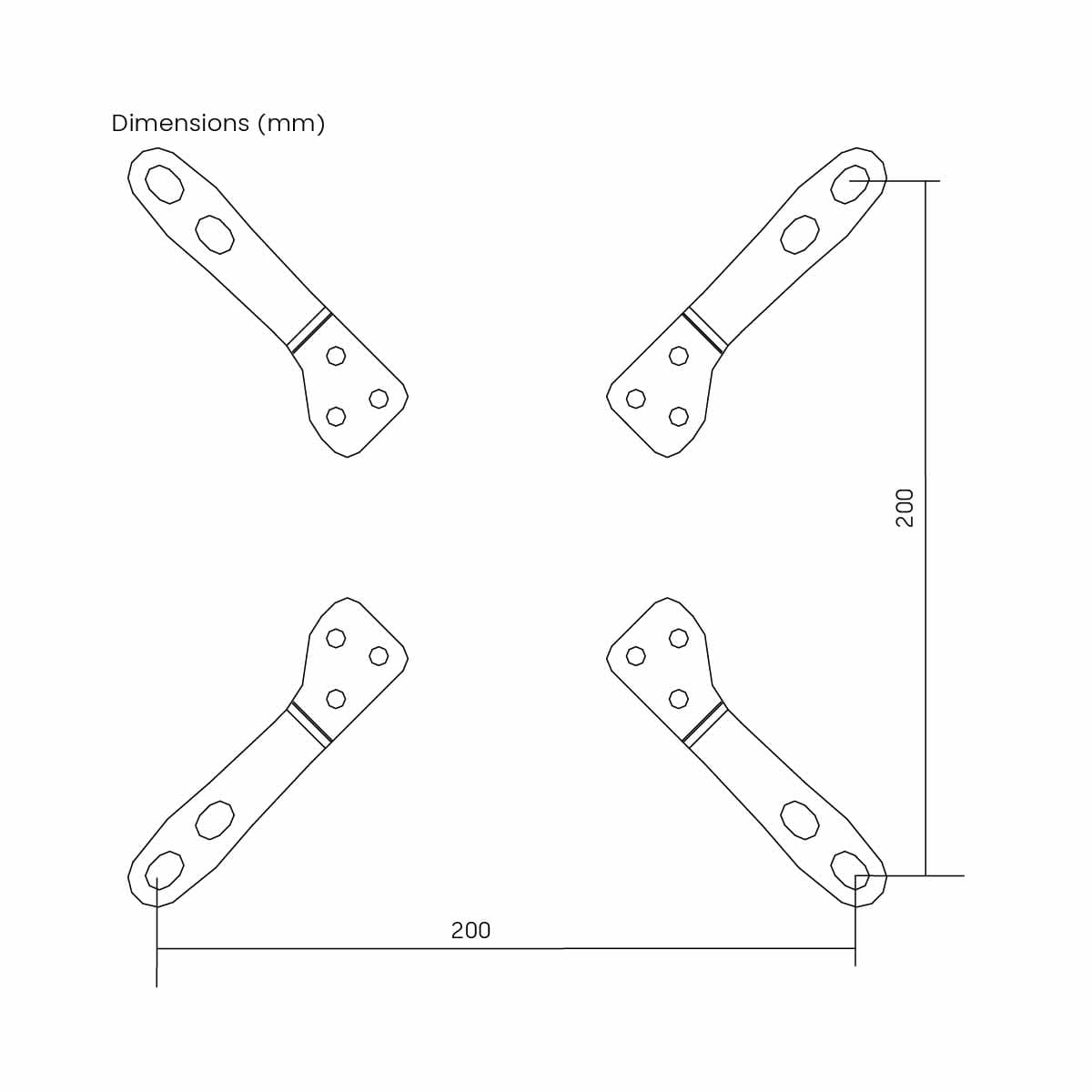

Drawing
