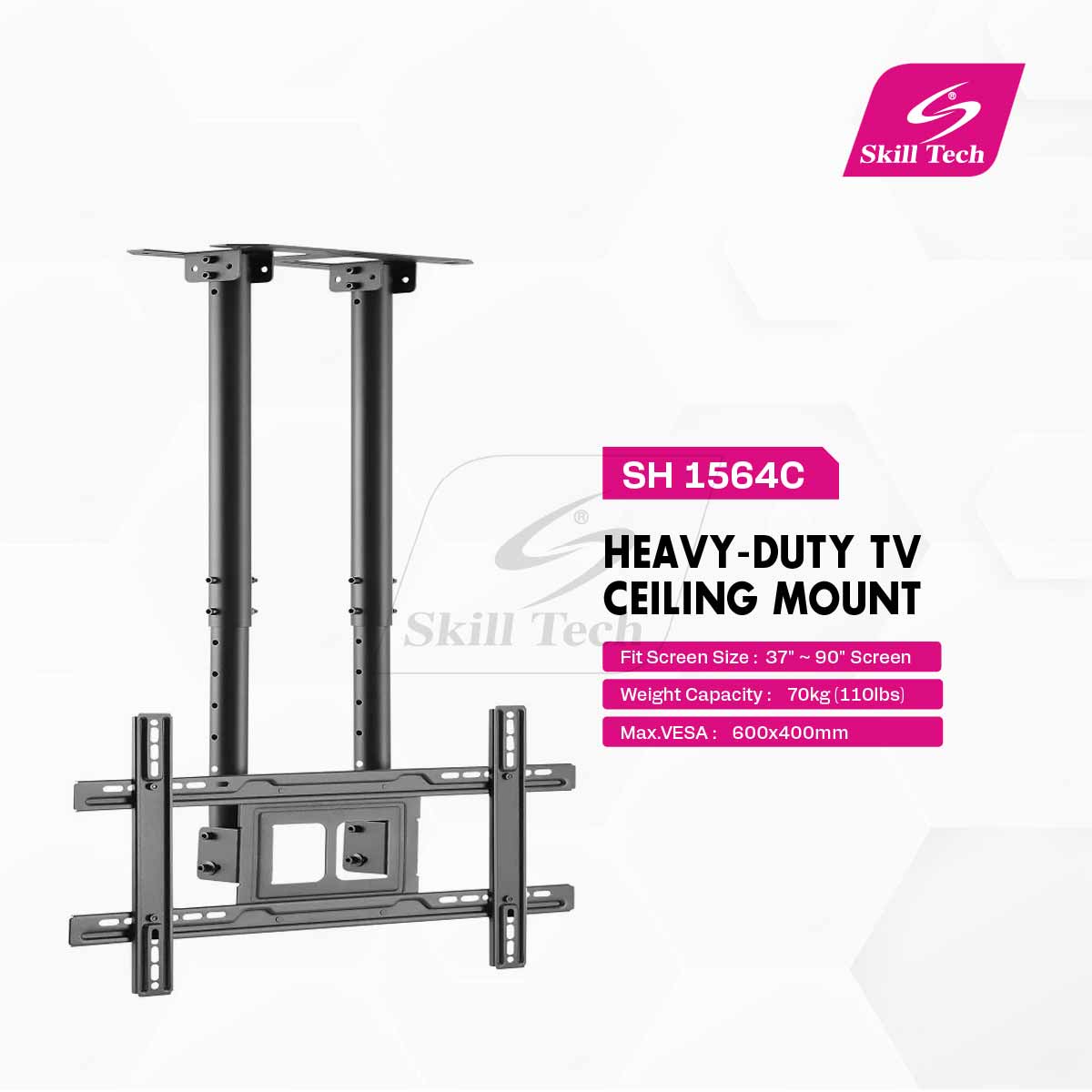

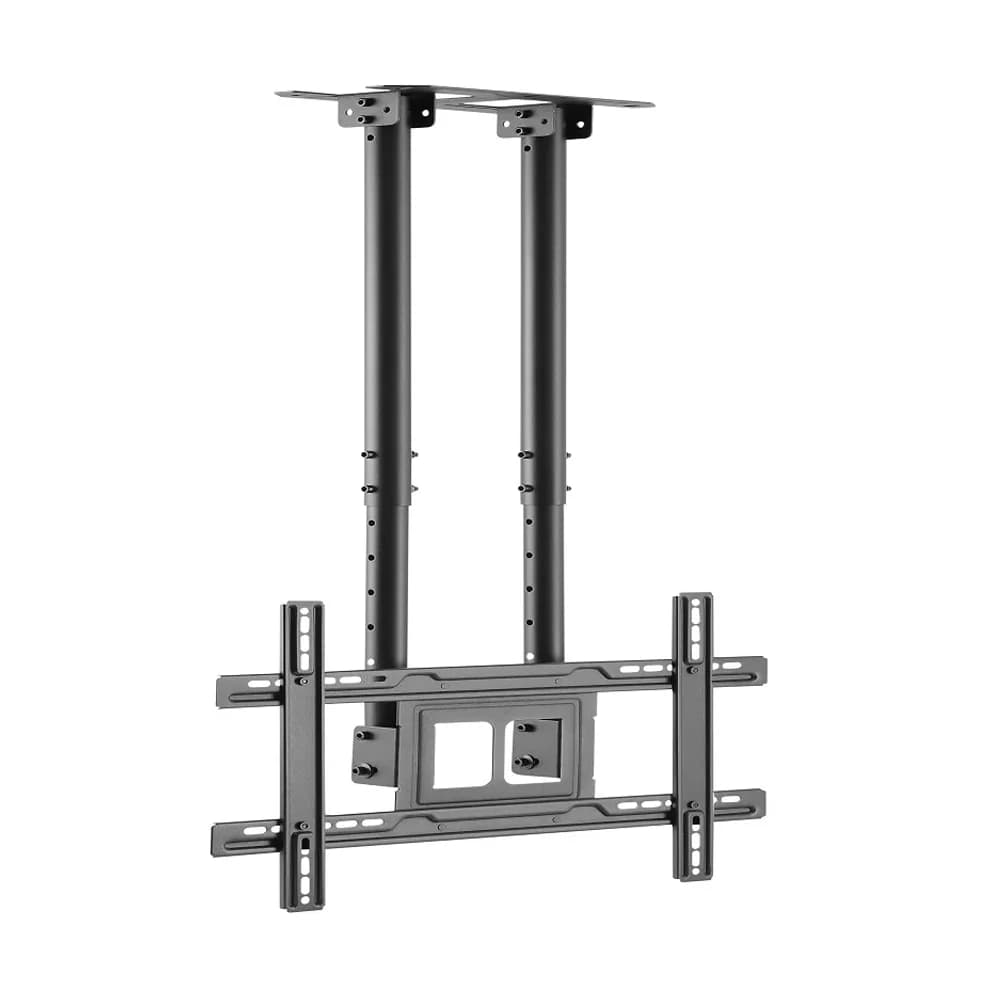

SH 1564C TV Ceiling Mount

SH 1564C

Heavy-Duty TV Ceiling Mount

37''~90' icon
Screen Size37''~90'
600x400mm icon
Max Vesa600x400mm
70kg icon
Weight Capacity70kg
698-1568mm icon
Profile to Wall698-1568mm
+3° ~ -20° icon
Tilt Range+3° ~ -20°

Tags:TV Ceiling Mounts, TV, Ceiling, Mounts, TV Ceiling Mounts in uae, TV Ceiling Mounts in dubai, Best TV Ceiling Mounts, Heavy-Duty TV Ceiling Mount, SH1564C

Download

Overview

Product CategoryTV Ceiling Mount
RankStandard
MaterialSteel,Plastic
Surface FinishPowder Coating
ColorFine Texture Black
Weight Capacity70kg (110lbs)
Strength Tested3 Times Approved
Profile698~1568mm (27.5"~61.7")
Tilt Range+3° ~ -20°
InstallationCeiling Mounted
Product CategoryTV Ceiling Mount
RankStandard
MaterialSteel,Plastic
Surface FinishPowder Coating
ColorFine Texture Black

Features

  • Broad CompatibilitySupports most 37" to 90" flat and curved TVs with VESA and universal mounting patterns up to 600x400mm.
  • Durable ConstructionMade from high-quality steel and plastic with a fine texture black powder coating for long-lasting performance.

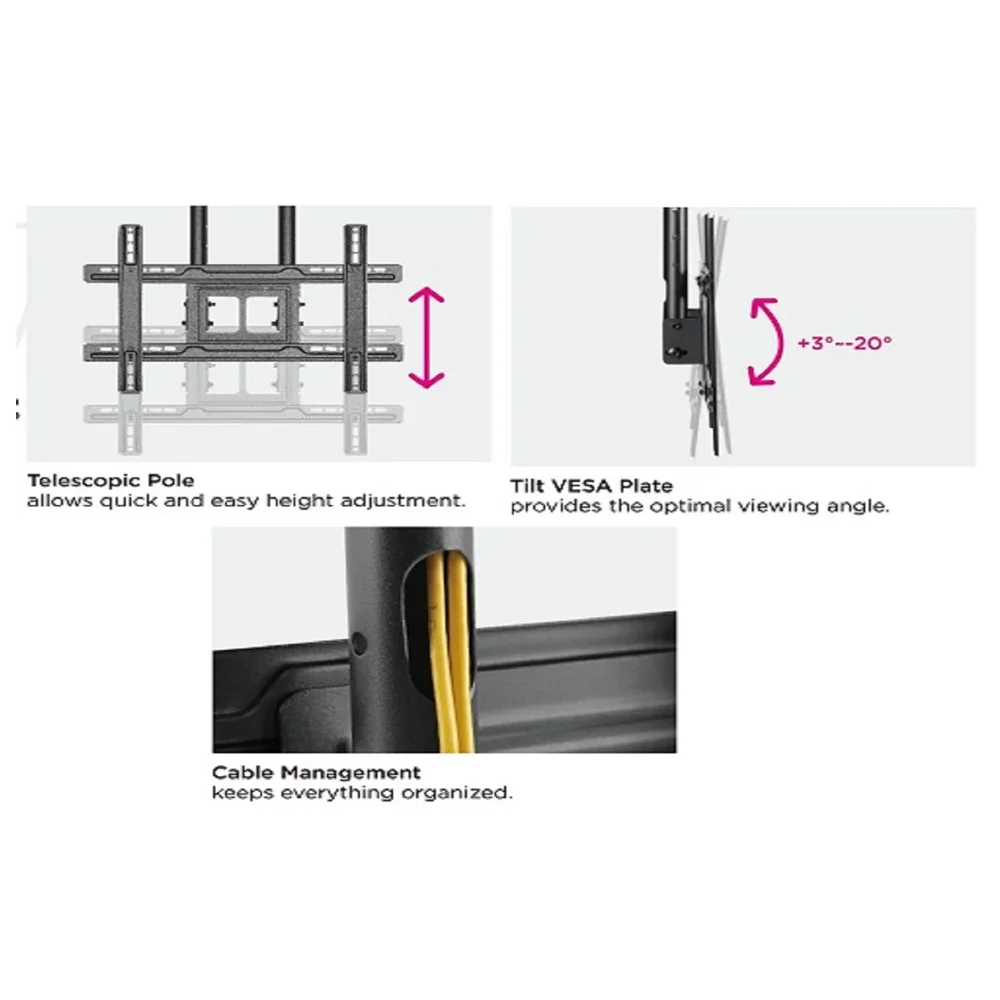

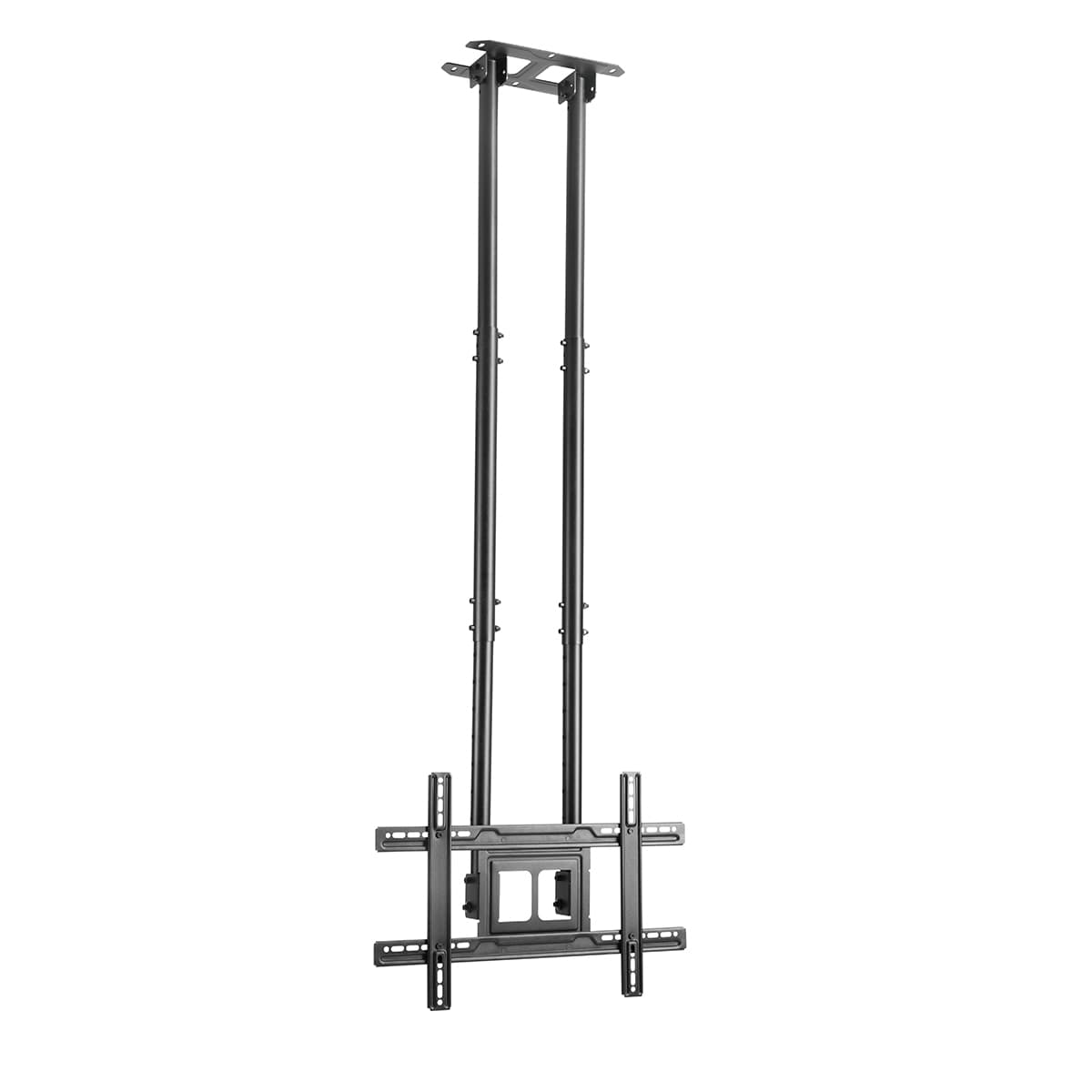

  • Height AdjustableTelescopic design allows height adjustment from 698mm to 1568mm to suit various ceiling heights.
  • Tilt FunctionalityOffers a tilt range of +3° to -20° for customized viewing angles.
  • Integrated Cable ManagementKeeps wires neatly concealed for a clean, professional appearance.

Description

The SH 1564C Heavy-Duty TV Ceiling Mount is built for 37" to 90" flat or curved TVs, supporting up to 70kg. Crafted from steel and plastic with a fine texture black powder coating, it features a detachable panel, tilt range of +3° to -20°, and height adjustment from 698mm to 1568mm. Compatible with VESA patterns up to 600x400mm, it includes cable management and a compartment polybag for organized installation.

Installation Video

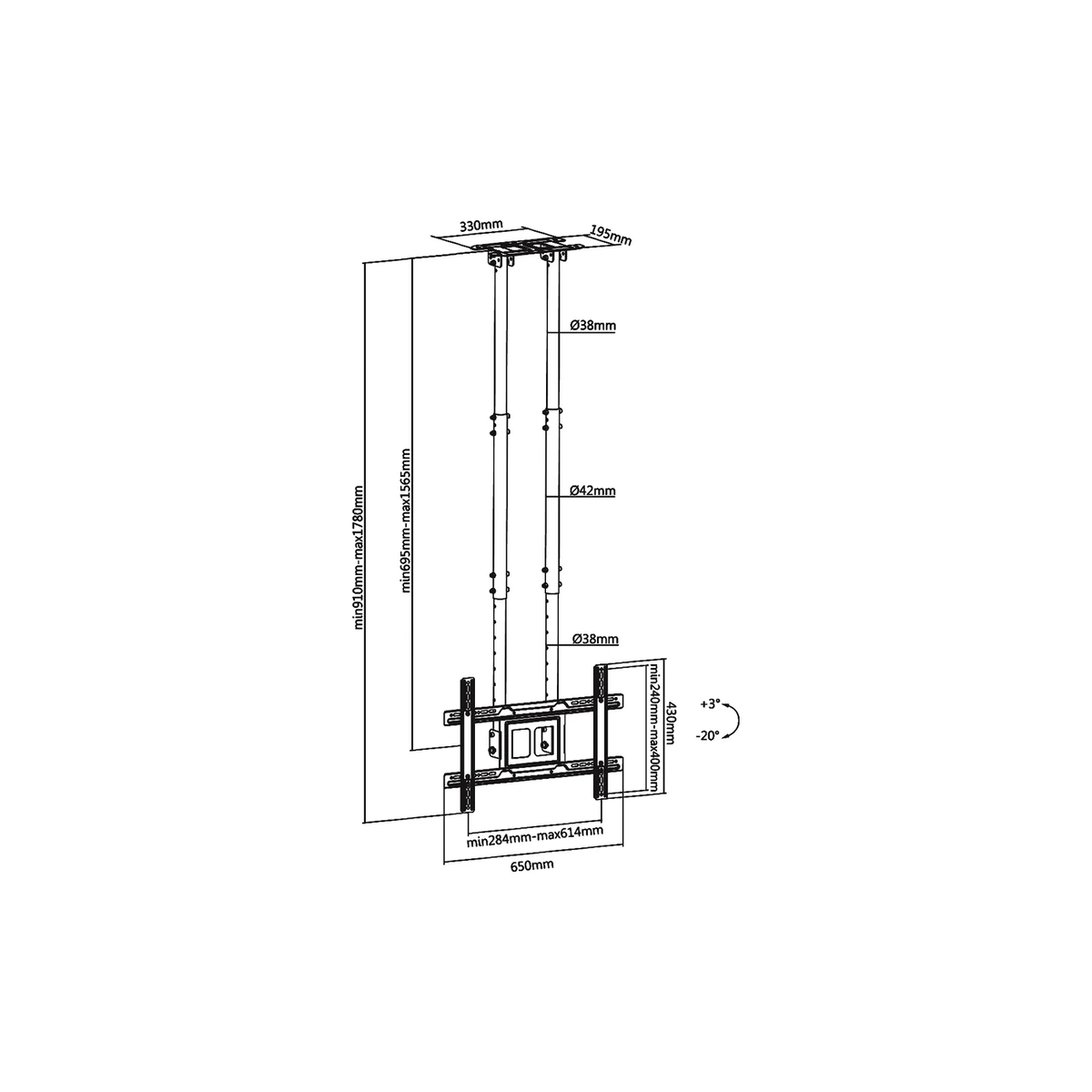

Drawing

Drawing
