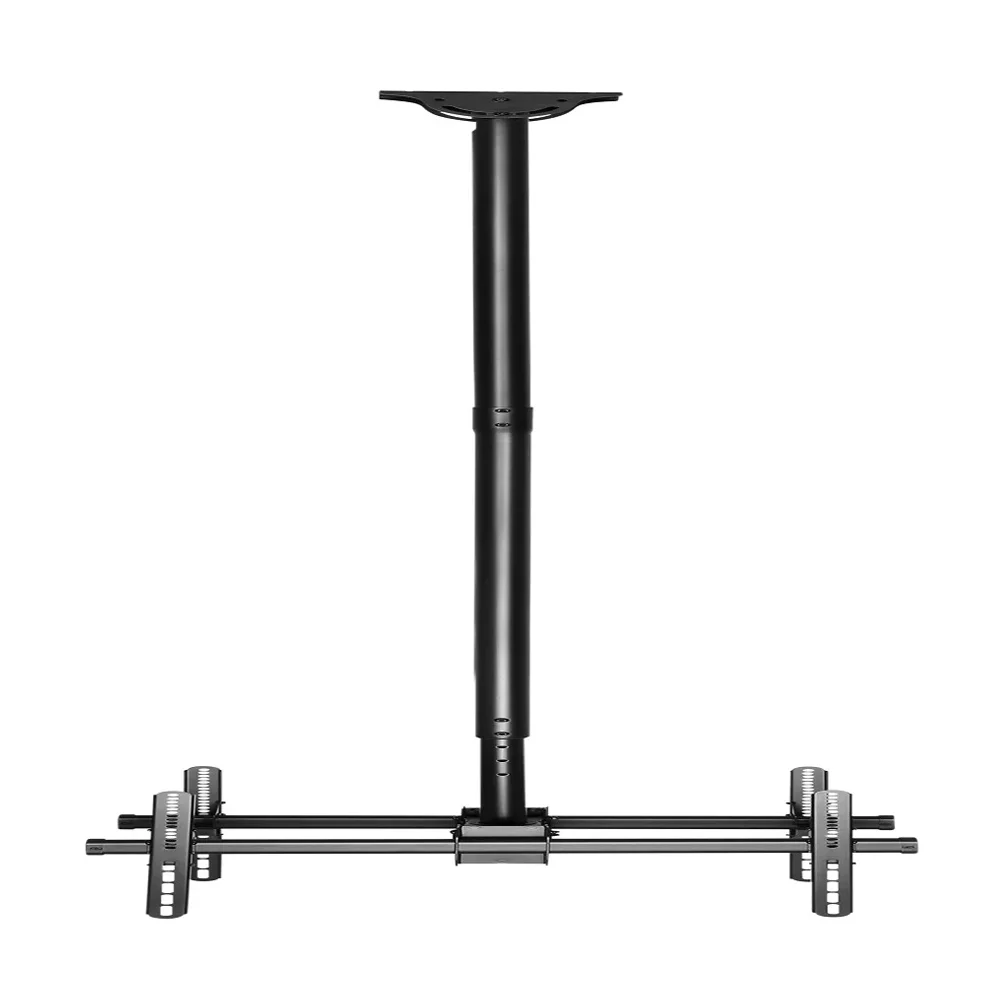

SH 034D Back-To-Back Flat Panel TV Ceiling Mount

Product Category:	TV Ceiling Mount
Rank:	Standard
Material:	Steel
Surface Finish:	Powder Coating
Color:	Matte Black

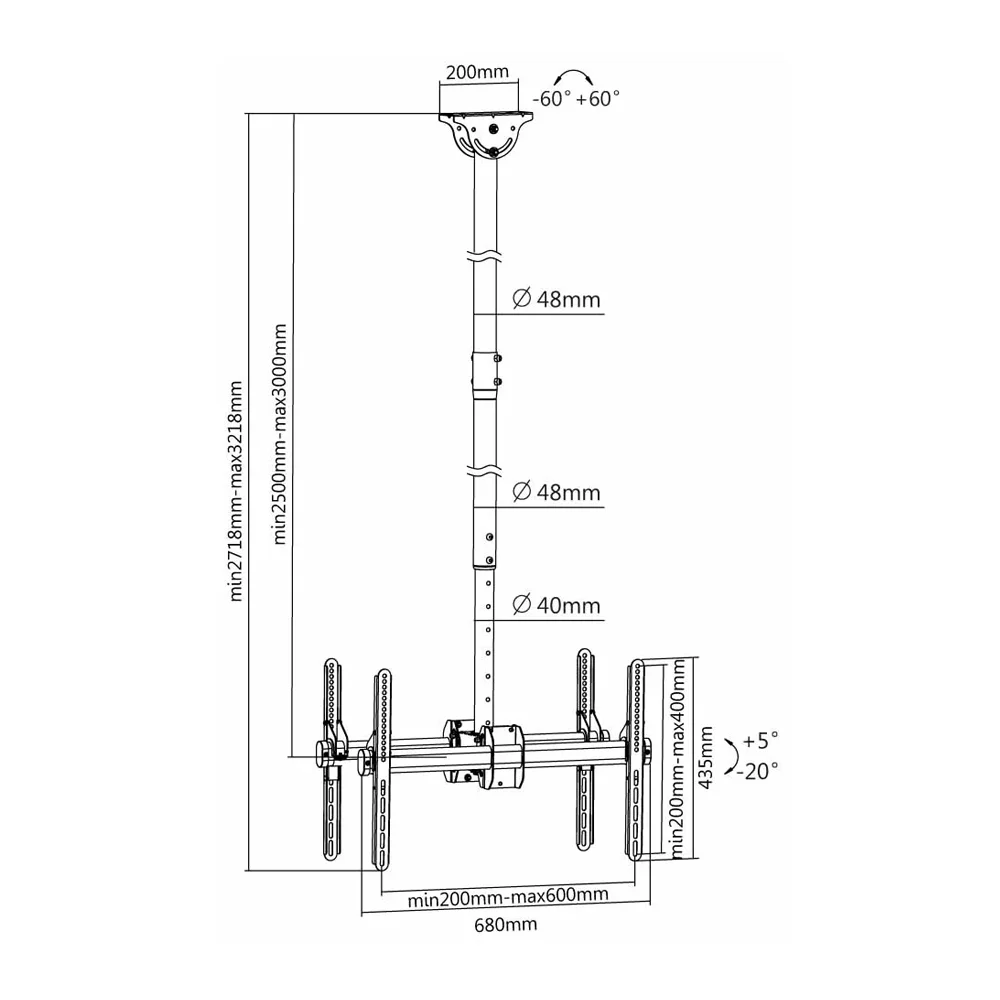

Dimensions:	680x435x3218mm (26.8"x17.1"x126.7")
Fit Screen Size:	Suitable For Most 37" ~ 75" Screen
Fit Curved TV:	Yes
Mounting Hole Pattern :	VESA & Universal
Max.VESA:	600x400mm
Weight Capacity:	45kg
Strength Tested:	4 Times Approved
Profile:	2500~3000mm (98.4"~118.1")
Tilt Range:	+5° ~ -20°
Swivel Range:	+180° ~ -180°
Screen Level:	+3° ~ -3°
Screen Freely Tilting:	No
Installation:	Ceiling Mounted
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	Yes
Rotation	360 Degree
Bubble Level:	No

Ceiling mount

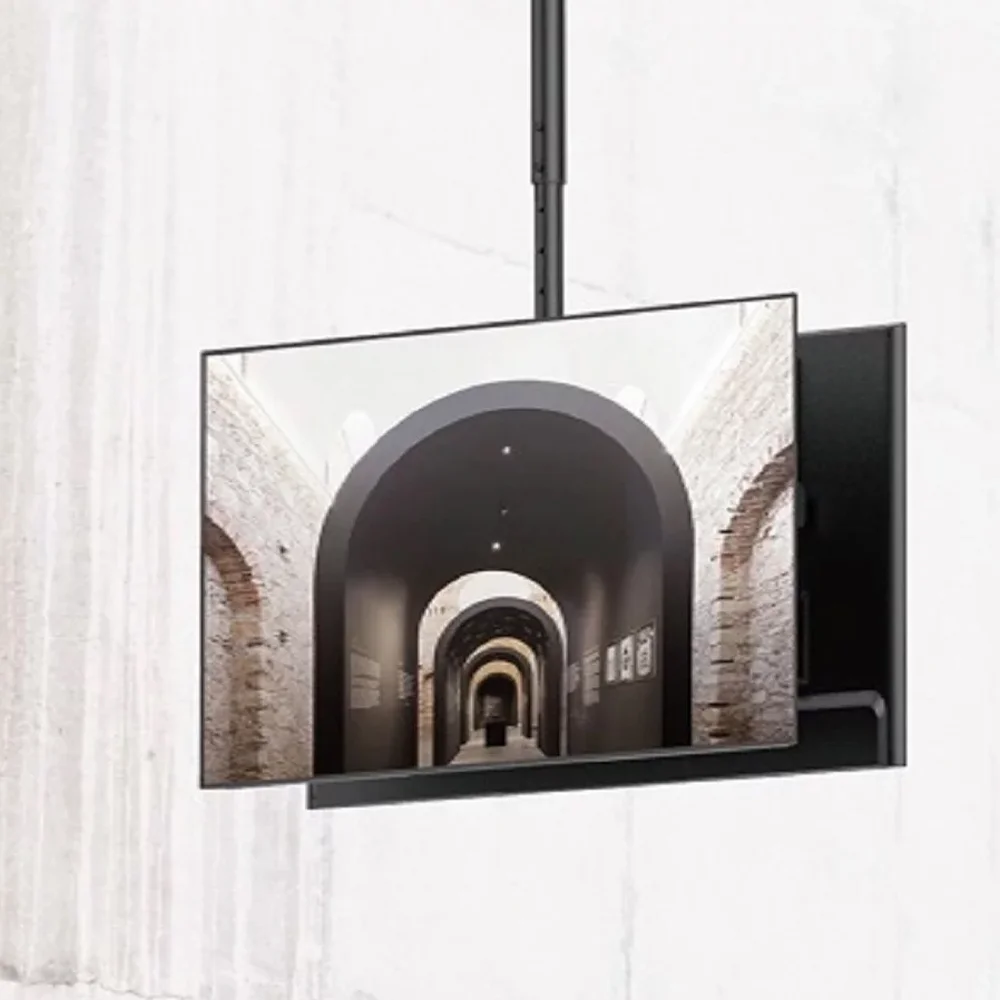

Dual-Screen Design – Supports back-to-back installation of two TVs, ideal for commercial and public spaces.
Wide Compatibility – Fits most 37" to 75" flat or curved TVs with VESA and universal mounting up to 600x400mm.
Full Motion Adjustability – Offers 360° rotation, ±180° swivel, and +5° to -20° tilt for optimal viewing angles.
Height Adjustable – Telescoping pole allows height adjustment from 2500mm to 3000mm.
Cable Management System – Built-in cable routing keeps installations neat and organized.

The SH 034D Back-to-Back Flat Panel TV Ceiling Mount is ideal for dual 37" to 75" TVs, including curved models. Made from durable steel with a matte black powder coating, it supports up to 45kg per screen. It features full 360° rotation, tilt (+5° to -20°), and swivel (+/-180°) functions. Height adjustable (2500–3000mm) with VESA compatibility up to 600x400mm and integrated cable management for a clean, professional setup.
