LVS02-40M

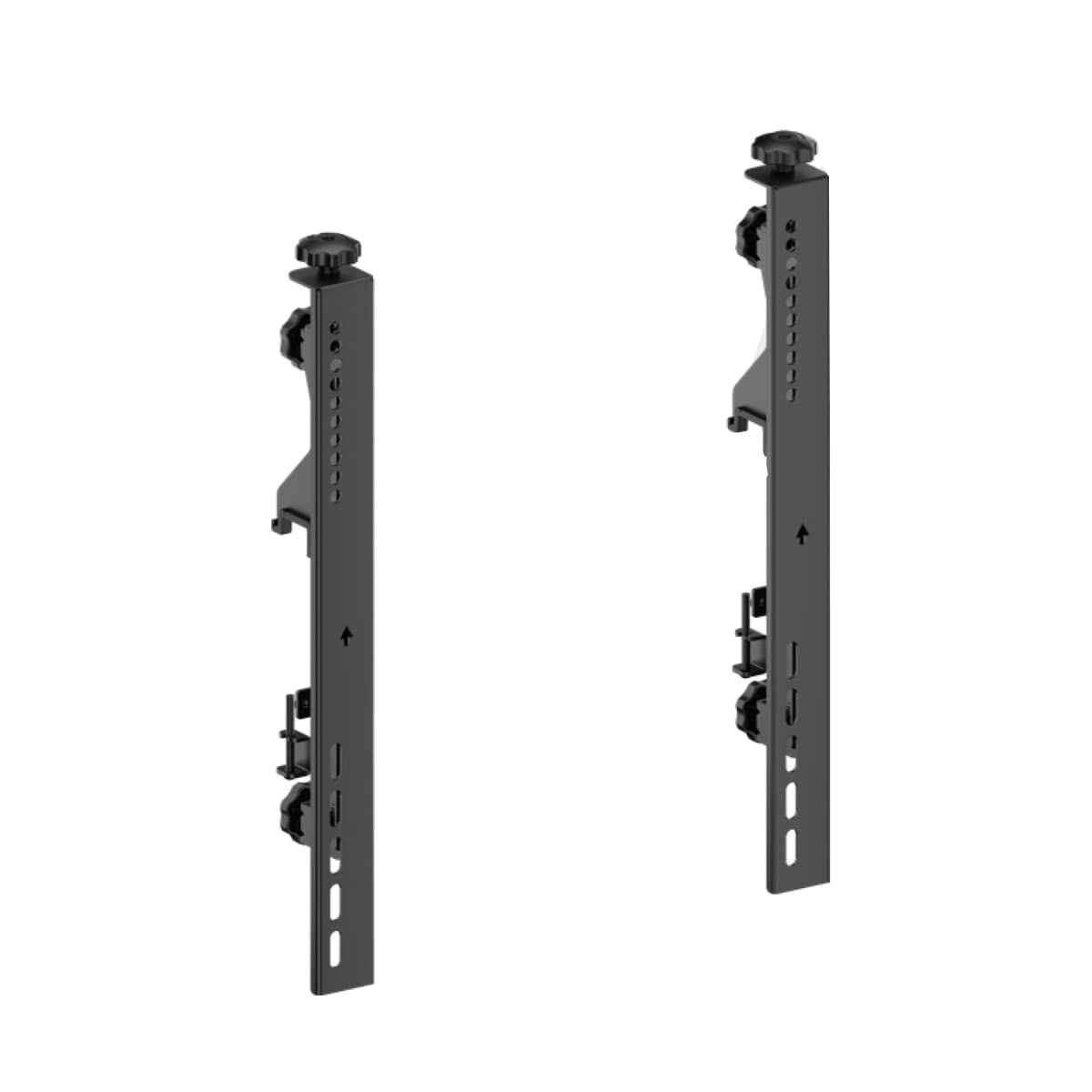

Micro-Adjustment Bracket for Video Wall Mount
Screen Size40''~70''
Tilt Range+2° ~ -2°
Overview
| Product Category | Video Wall Mount Component |
|---|---|
| Rank | Premium |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 42x472x79mm |
|---|---|
| Fit Screen Size | 40"~70" |
| Fine Adjustment | 10mm/20mm |
| Tilt Range | +2°~-2° |
| Direction Indicator | Yes |
| Product Category | Video Wall Mount Component |
|---|---|
| Rank | Premium |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Precision Micro-AdjustmentEnables accurate screen alignment for seamless video wall installations.
- Wide Screen CompatibilitySupports displays ranging from 40"~70" in size.
- Tilt Adjustment FunctionOffers +2° to -2° tilt for improved viewing flexibility.
- Heavy-Duty ConstructionProvides stable and secure mounting for professional use.
- Easy Installation DesignSimplifies setup and maintenance in commercial environments.
Description
The LVS02-40M Micro-Adjustment Bracket is designed for video wall and multi-screen installations, offering precise alignment and reliable support for displays from 40~70 inches. Its durable construction ensures stability, while the micro-adjustment feature allows accurate positioning for seamless screen layouts. With a tilt range of +2°~-2°, this bracket provides flexible viewing angles and easy installation, making it ideal for commercial, corporate, and professional display environments and venues

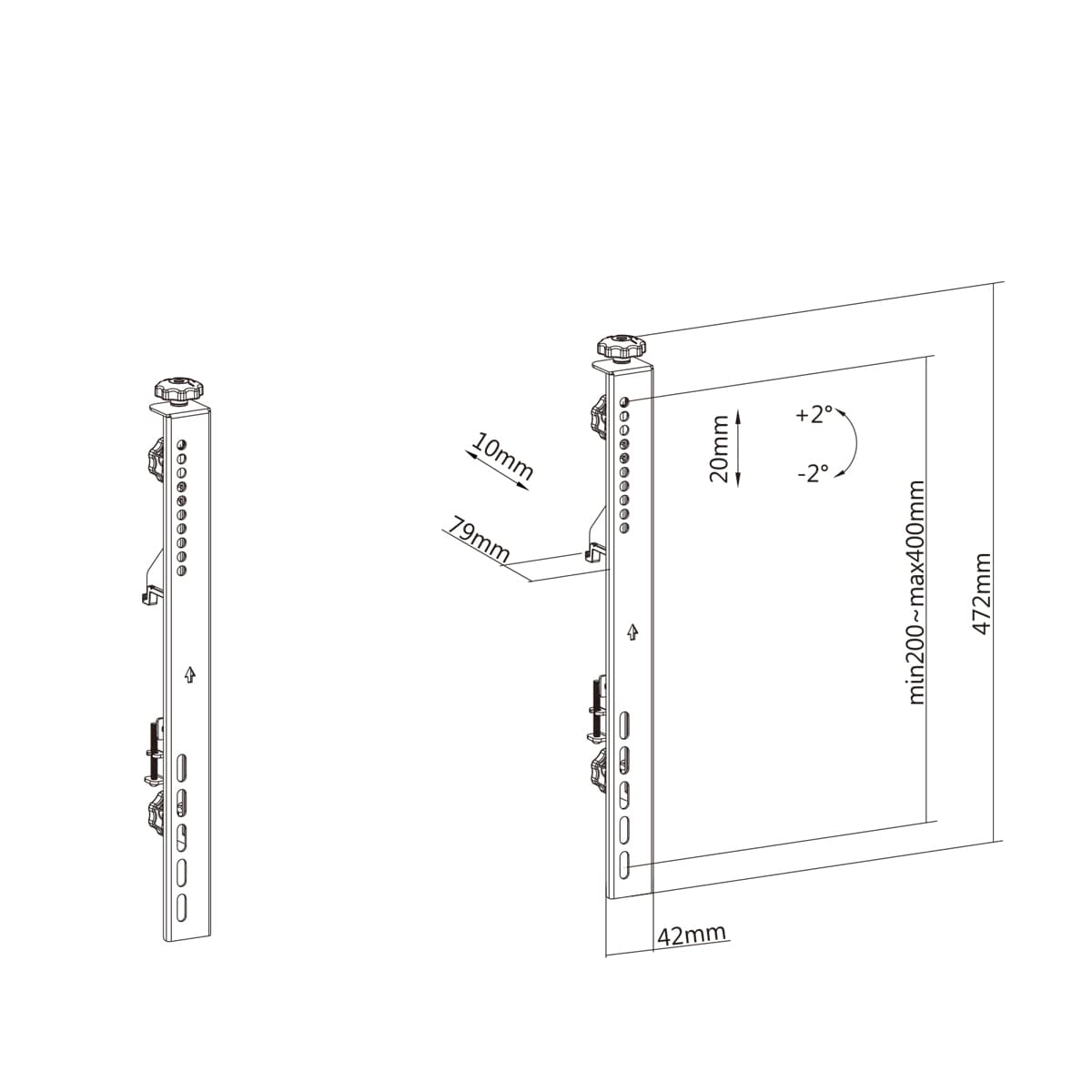

Drawing
