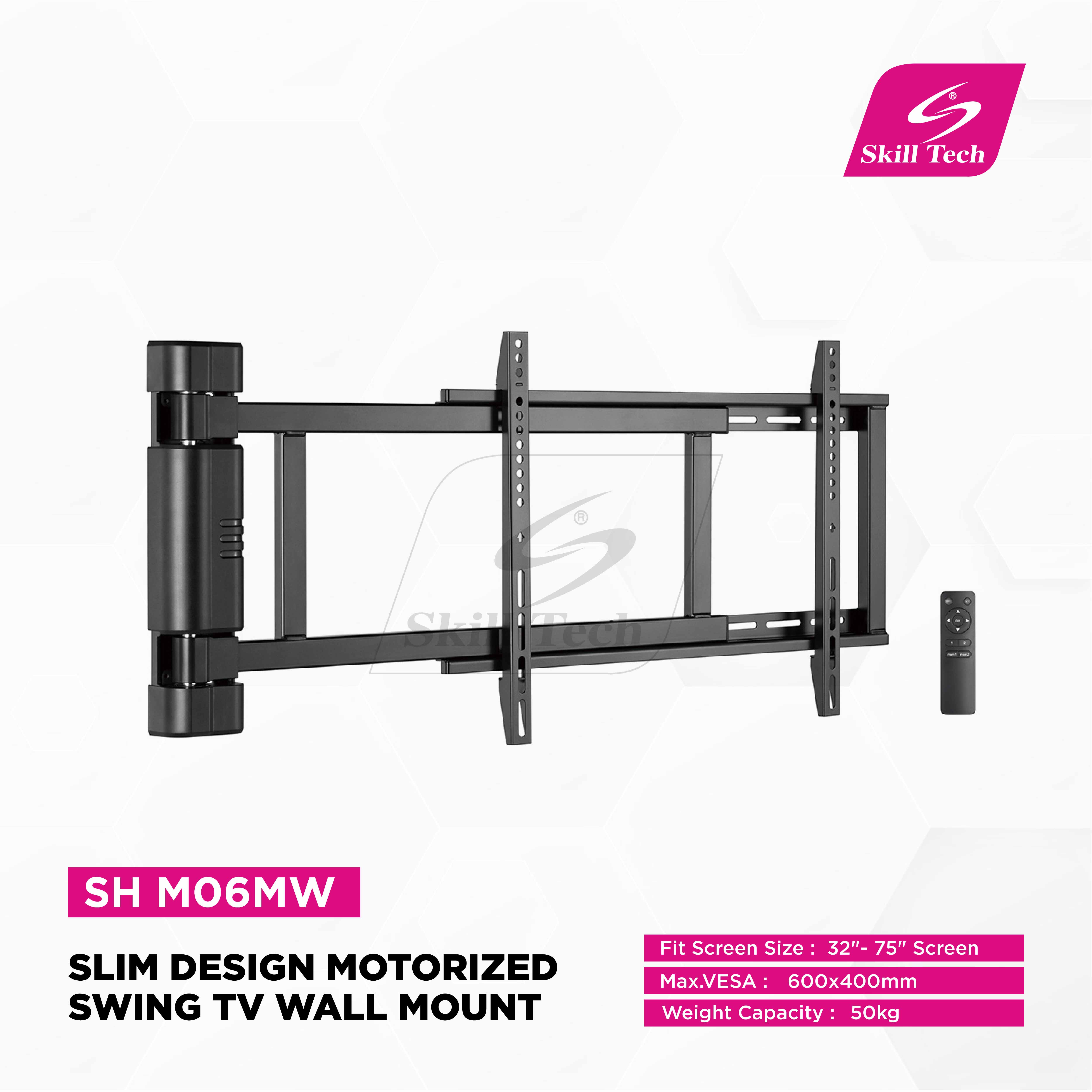

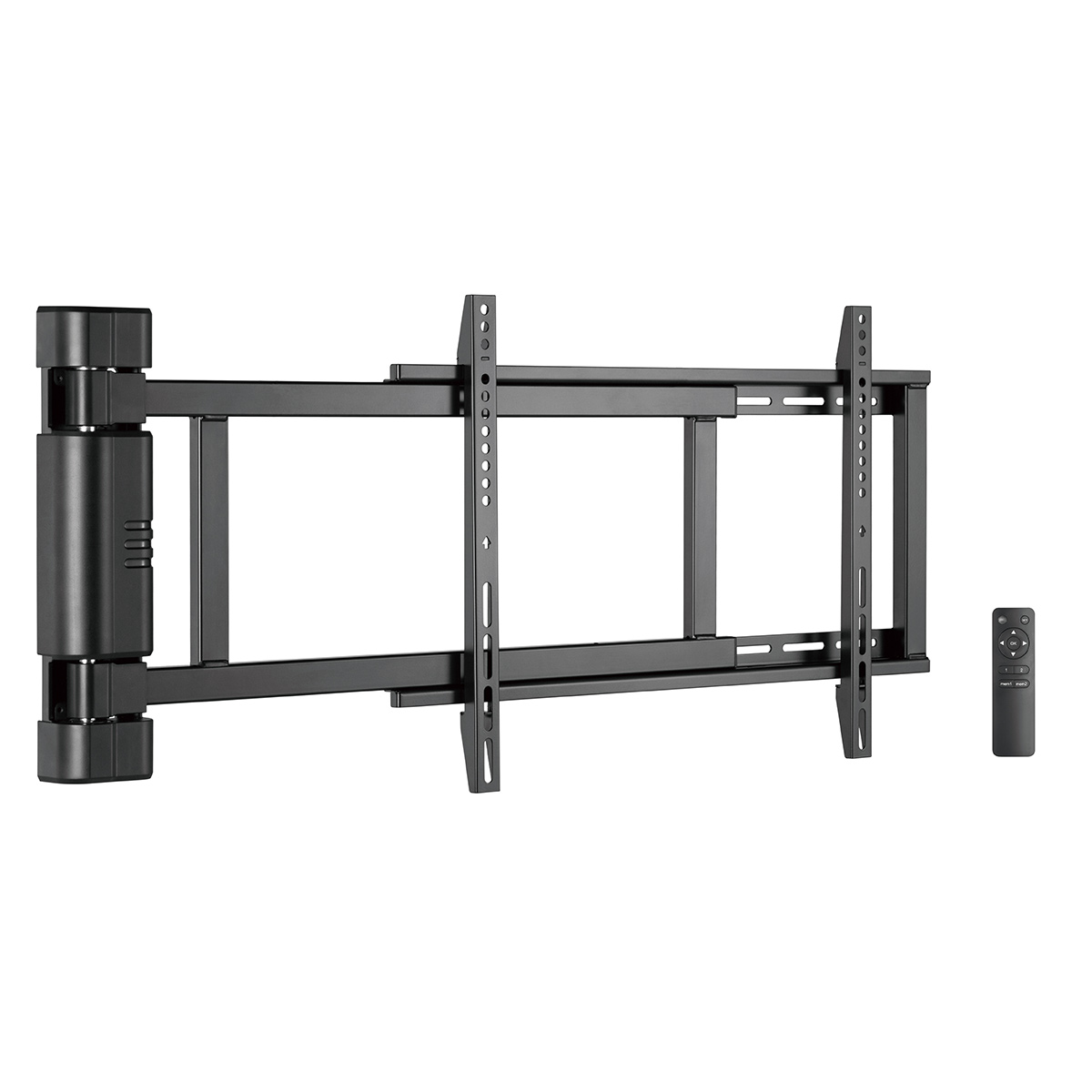

SH M06MW Motorized TV Wall Mount

SH M06MW

Slim Design Motorized Swing TV Wall Mount

32''~75'' icon
Screen Size32''~75''
600x400mm icon
Max VESA600x400mm
50kg icon
Weight Capacity50kg
null icon
Cable Management
56mm icon
Profile56mm

Tags:Motorized Mounts, Motorized, Mounts, Motorized Mounts and Stands, Stands, Motorized Mounts and Stands in uae, Motorized Mounts and Stands in dubai, Best Motorized Mounts and Stands, Fixed Motorized TV Wall Mount With Remote Controller, SHM06MW

Data Sheet

Overview

Product CategoryMotorized TV Wall Mount
RankStandard
MaterialSteel,Aluminum,Plastic
Surface FinishPowder Coating
ColorMatte Black
ProfileMin.56mm
Swivel Range0°~+170°
InstallationSolid Wall,Single Stud
Cable ManagementYes
Panel TypeDetachable Panel
Product CategoryMotorized TV Wall Mount
RankStandard
MaterialSteel,Aluminum,Plastic
Surface FinishPowder Coating
ColorMatte Black

Features

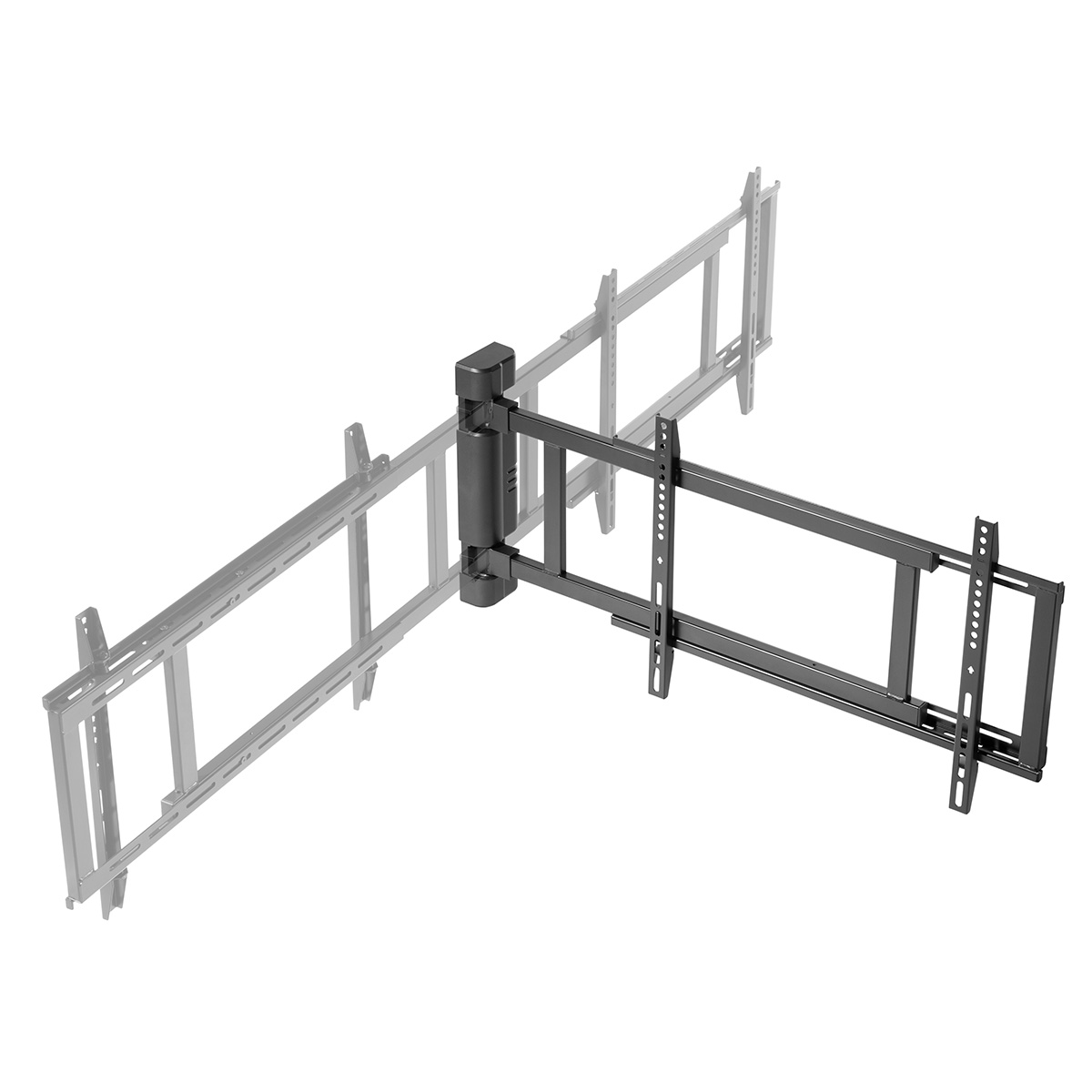

  • Motorized Swivel FunctionSmooth swivel range of 0° to +170° controlled via RF remote for flexible viewing.
  • Wide TV CompatibilityFits most 32"–75" flat and curved TVs with VESA patterns up to 600x400mm.
  • Slim Profile DesignMinimum 56 mm profile keeps the TV close to the wall for a clean look.
  • Durable & ReliableStrong steel, aluminum, and plastic build, strength-tested three times for safety.
  • Neat InstallationDetachable panel, fixed wall plate, integrated cable management, and bubble level for hassle-free setup.

Description

The SH M06MW Fixed Motorized TV Wall Mount is a versatile solution for most 32"–75" flat and curved TVs. Crafted from steel, aluminum, and plastic with a matte black powder-coated finish, it supports up to 50 kg and VESA patterns up to 600x400mm. With motorized swivel range from 0° to +170°, RF remote control, and integrated cable management, it ensures convenience, strength-tested reliability, and a slim 56 mm profile for a sleek installation.

Installation Video

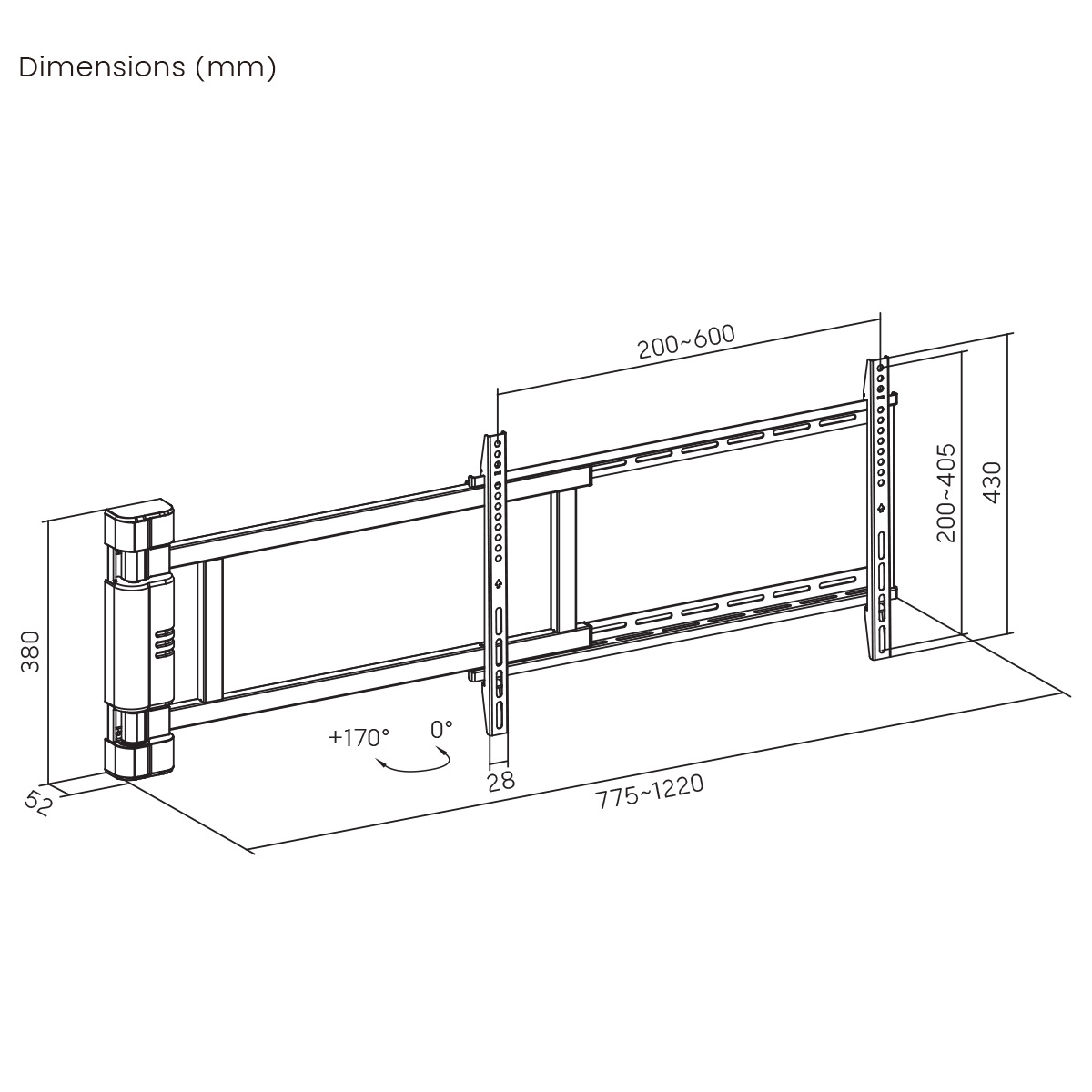

Drawing

Drawing
