| Product Category: | Mantel TV Mount |
| Rank: | Premium |
| Surface Finish: | Powder Coating |
| Color: | Matte Black |

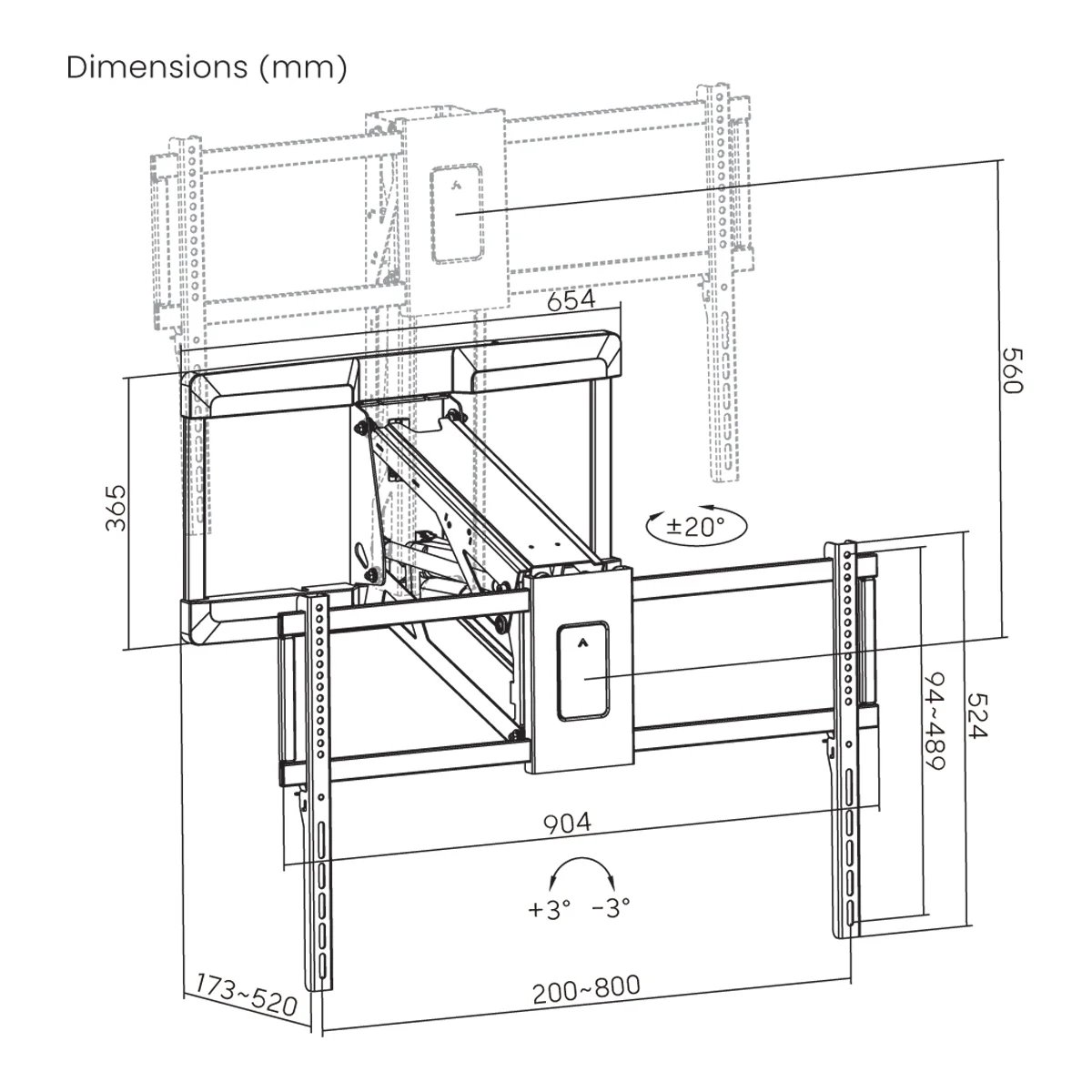

| Dimensions: | 520x704x743mm (20.5"x27.7"x29.3") |
| Fit Screen Size: | 43" ~ 90" |
| Fit Curved TV: | Yes |
| Max. Mounting Hole: | 800x400 |
| Weight Capacity: | 50kg (110lbs) |
| Strength Tested: | 4 Times Approved |
| Profile: | 155~520mm (6.1"~20.5") |
| Swivel Range: | +20°~-20° |
| Screen Level: | +3°~-3° |
| Screen Freely Tilting: | No |
| Installation: | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| AV Component Shelf: | No |
| Direction Indicator: | Yes |
| Cable Management: | Yes |

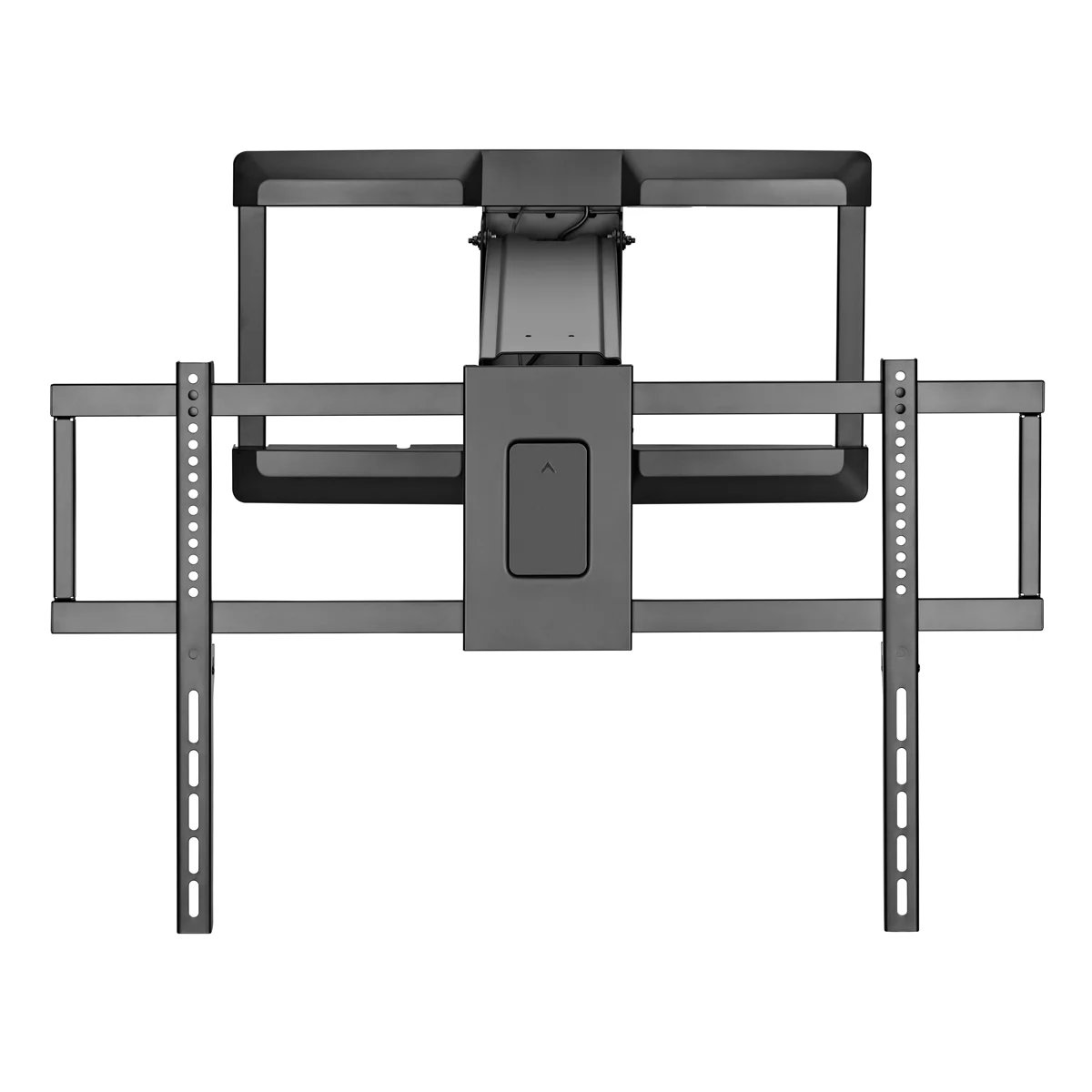

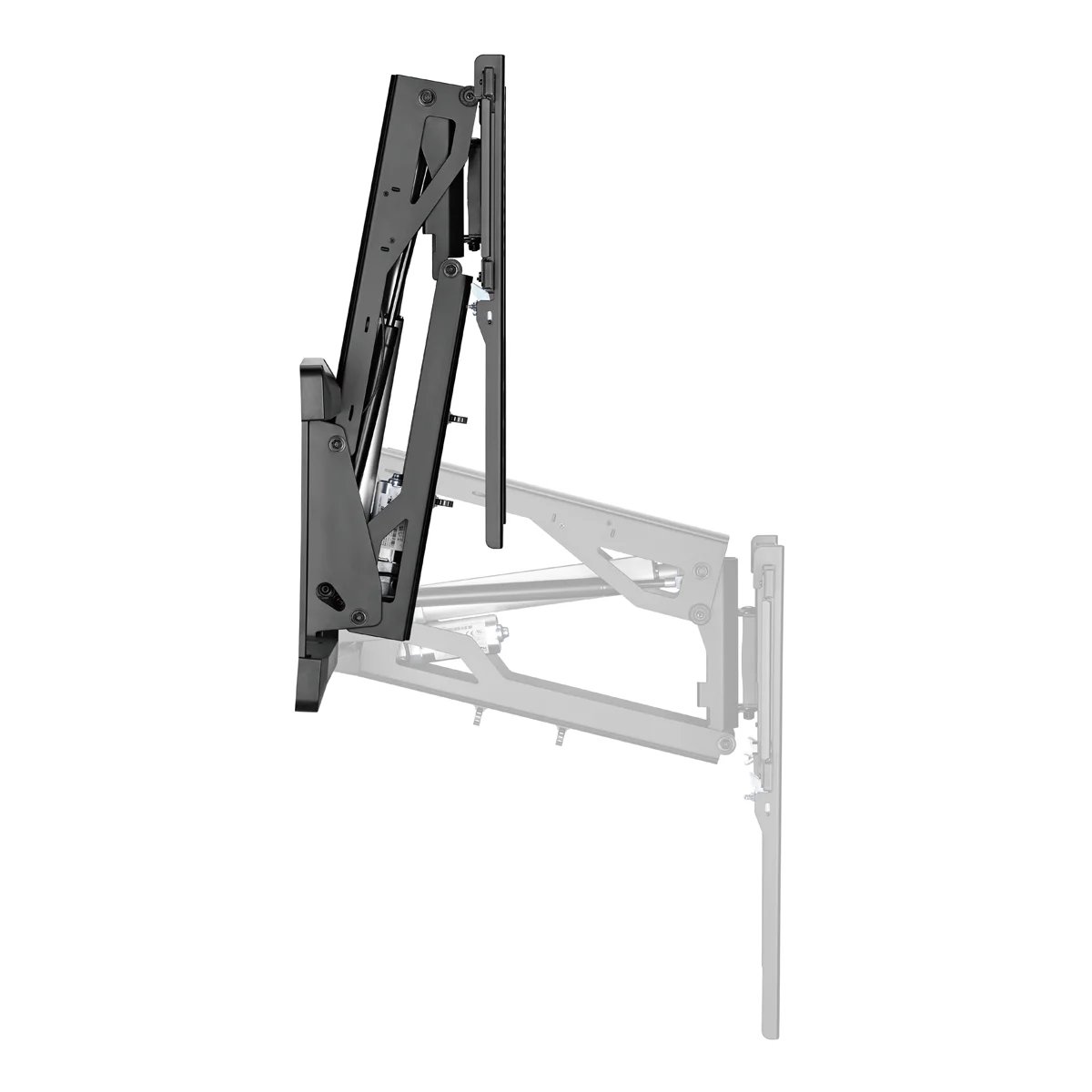

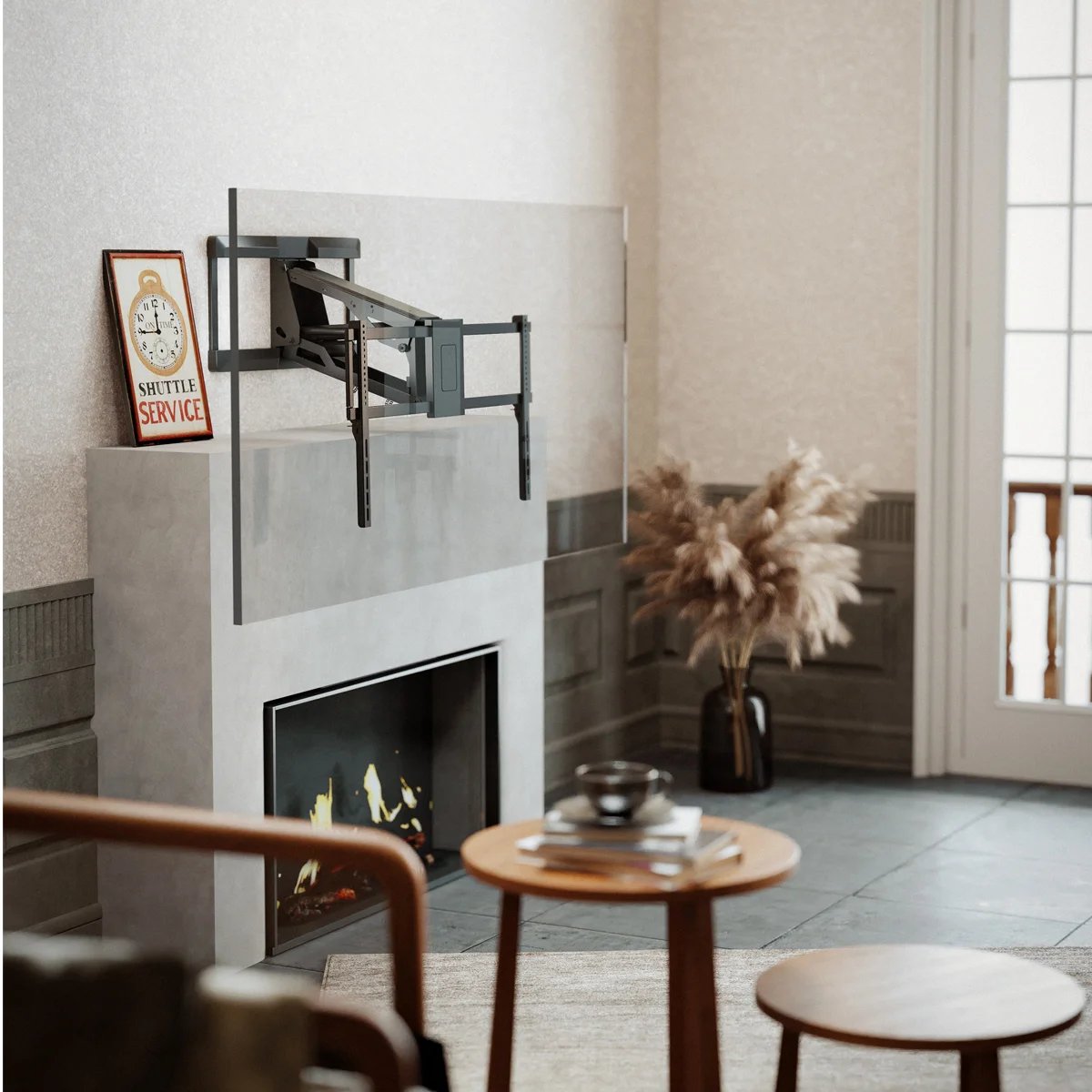

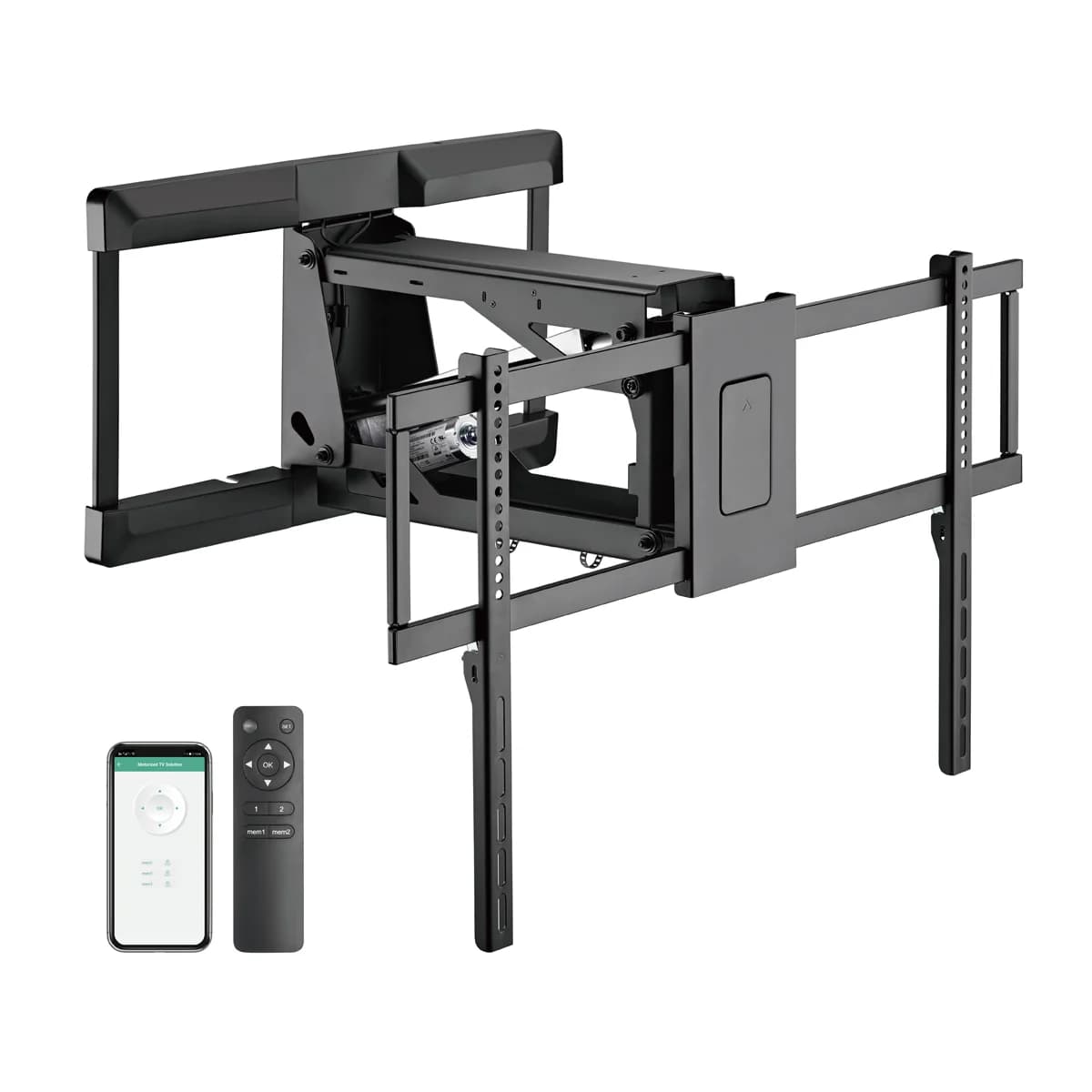

Introducing the SH 53M 481L, a Motorized Heavy-Duty Mantel TV Bracket that redefines your television viewing experience with advanced features and robust design. This premium-grade Mantel TV Mount, ranked at the top of its category, boasts a construction crafted from durable steel and plastic materials. With a thickness of 2.5mm for the bracket arm, 2mm for the VESA panel, and 4.0mm for the wall plate, this TV bracket ensures unparalleled strength and stability. The entire structure is coated with a matte black powder finish, adding a sleek and modern aesthetic to your living space.
| Product Category: | Mantel TV Mount |
| Rank: | Premium |
| Material: | Steel,Plastic |
| Metal Sheet Thickness: |
Bracket Arm THK=2.5mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=4.0mm pickling sheet (Bracket Arm THK=0.098" cold-rolled sheet,VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.16" pickling sheet) |
| Surface Finish: | Powder Coating |
| Color: | Matte Black |

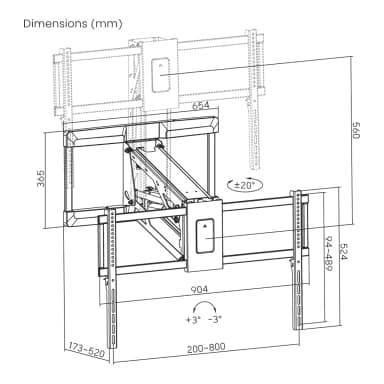

| Dimensions: | 520x704x743mm (20.5"x27.7"x29.3") |
| Fit Screen Size: | 43"-90" |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | VESA & Universal |
| VESA Compatible: |
200x100,200x200,200x300,300x200,200x400, 400x200,300x300,300x400,400x300,600x200, 400x400,600x300,600x400,800x400 |
| Max. Mounting Hole: | 800x400 |
| Weight Capacity: | 50kg (110lbs) |
| Strength Tested: | 4 Times Approved |
| Profile: | 155~520mm (6.1"~20.5") |
| Swivel Range: | +20°~-20° |
| Screen Level: | +3°~-3° |
| Screen Freely Tilting: | No |
| Installation: | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| AV Component Shelf: | No |
| Direction Indicator: | Yes |
| Cable Management: | Yes |
| Anti-theft: | No |
| Power Supply: | Input?AC 100~240V,50/60Hz?Output?DC 24V, 2.5A |
| Power Cord Length: | 1.8m (5.9ft) |
| Controller Type: | Radio Frequency(RF) Remote |
| Bubble Level: | No |
| Accessory Kit Package: | Compartment Polybag |
| Certification: | CE,FCC |
