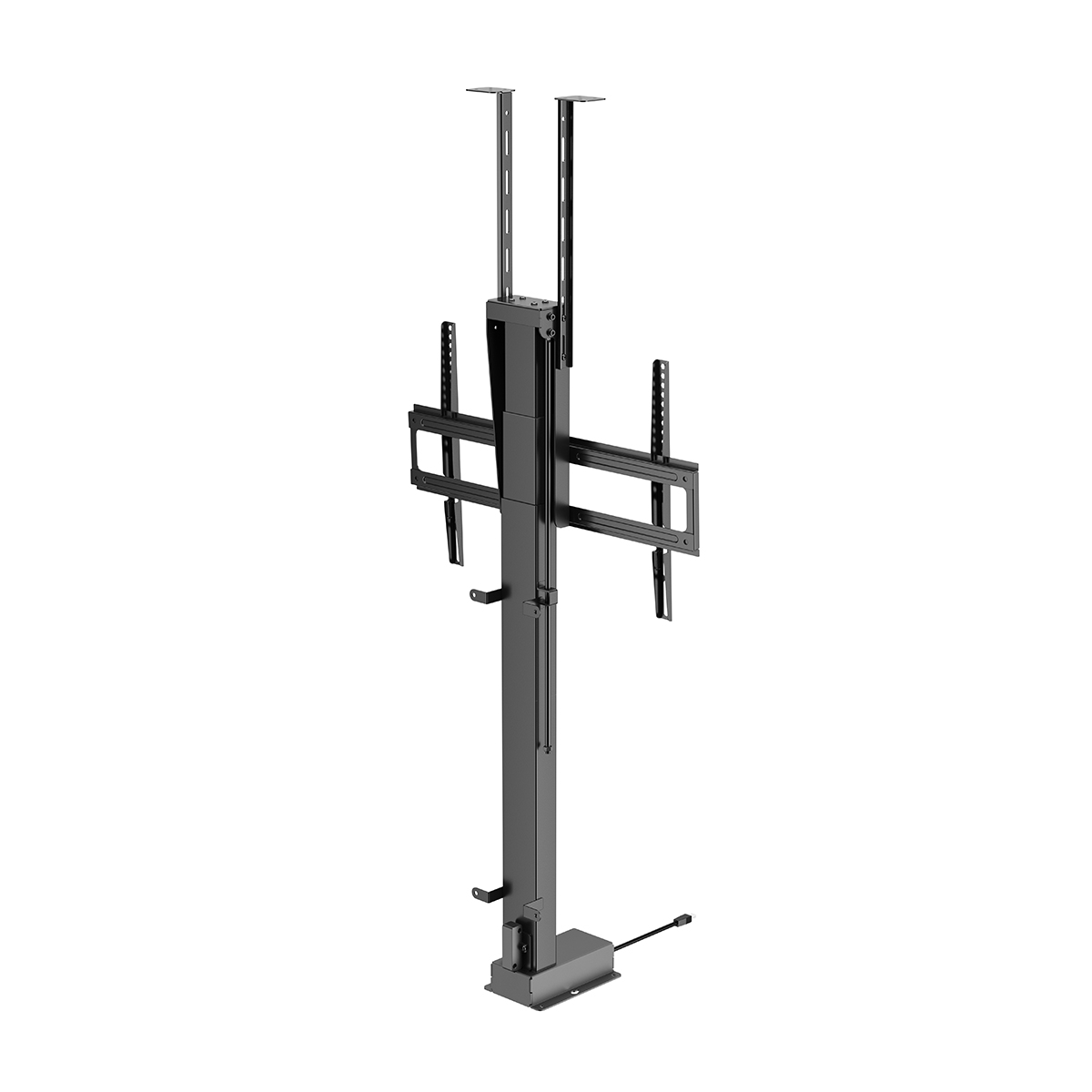

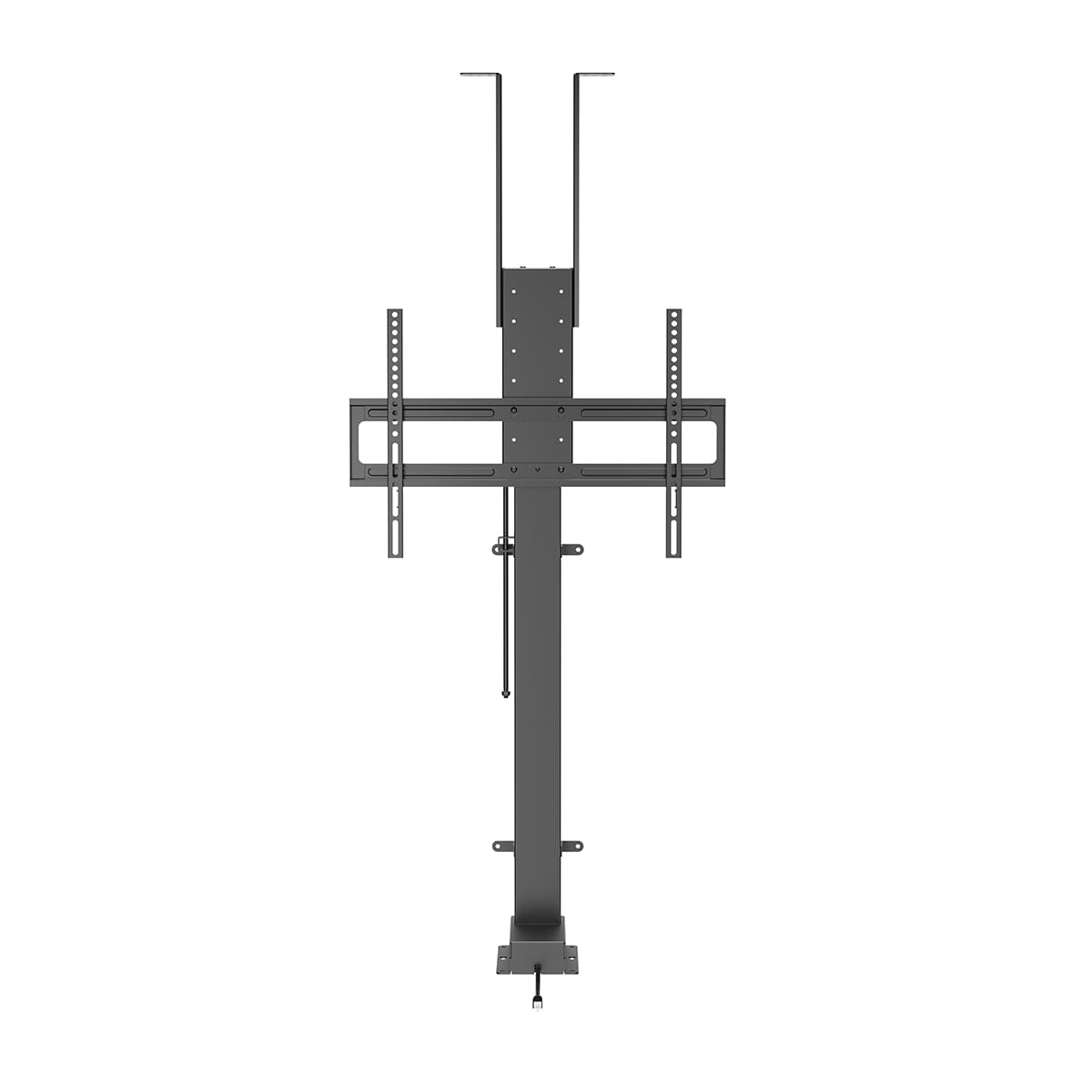

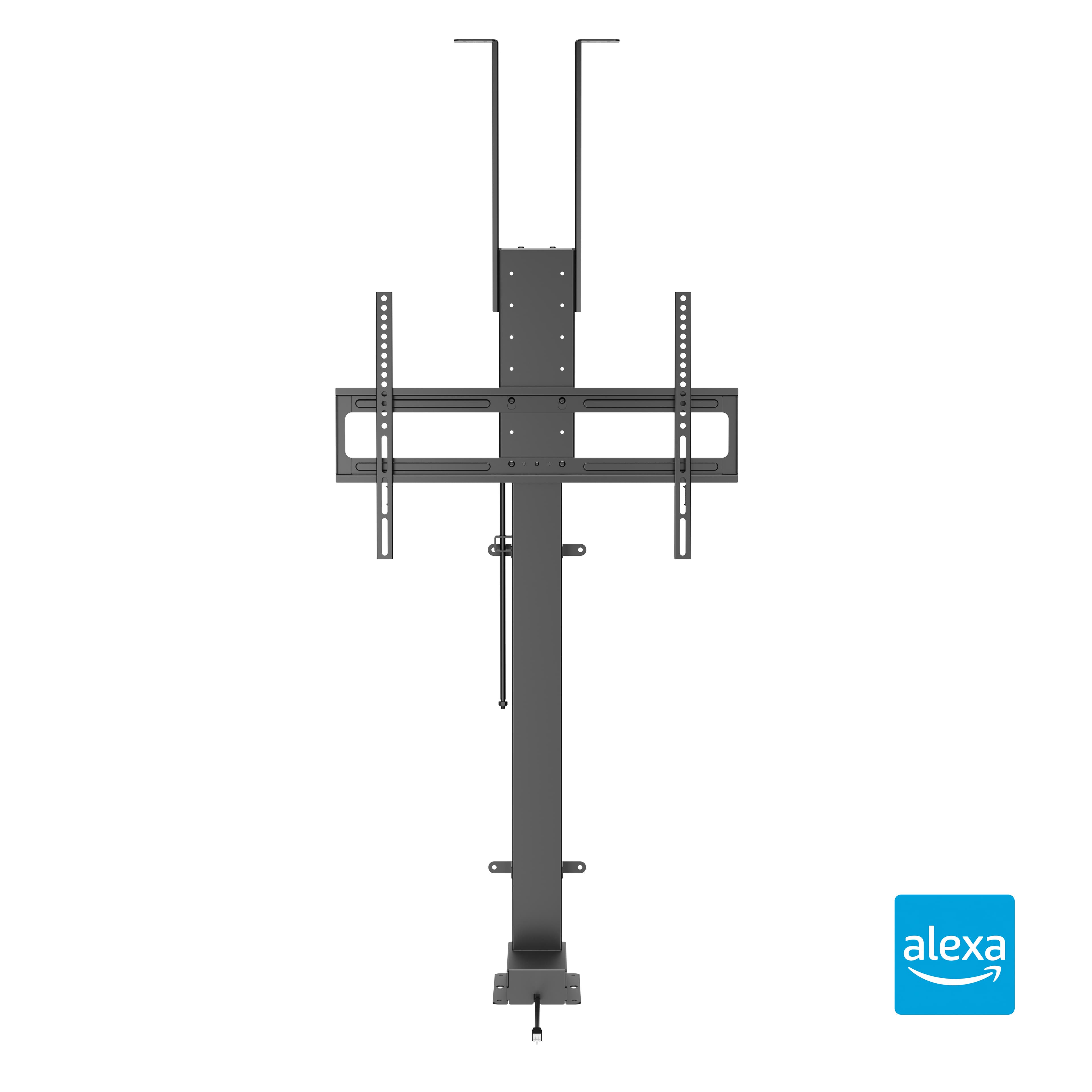

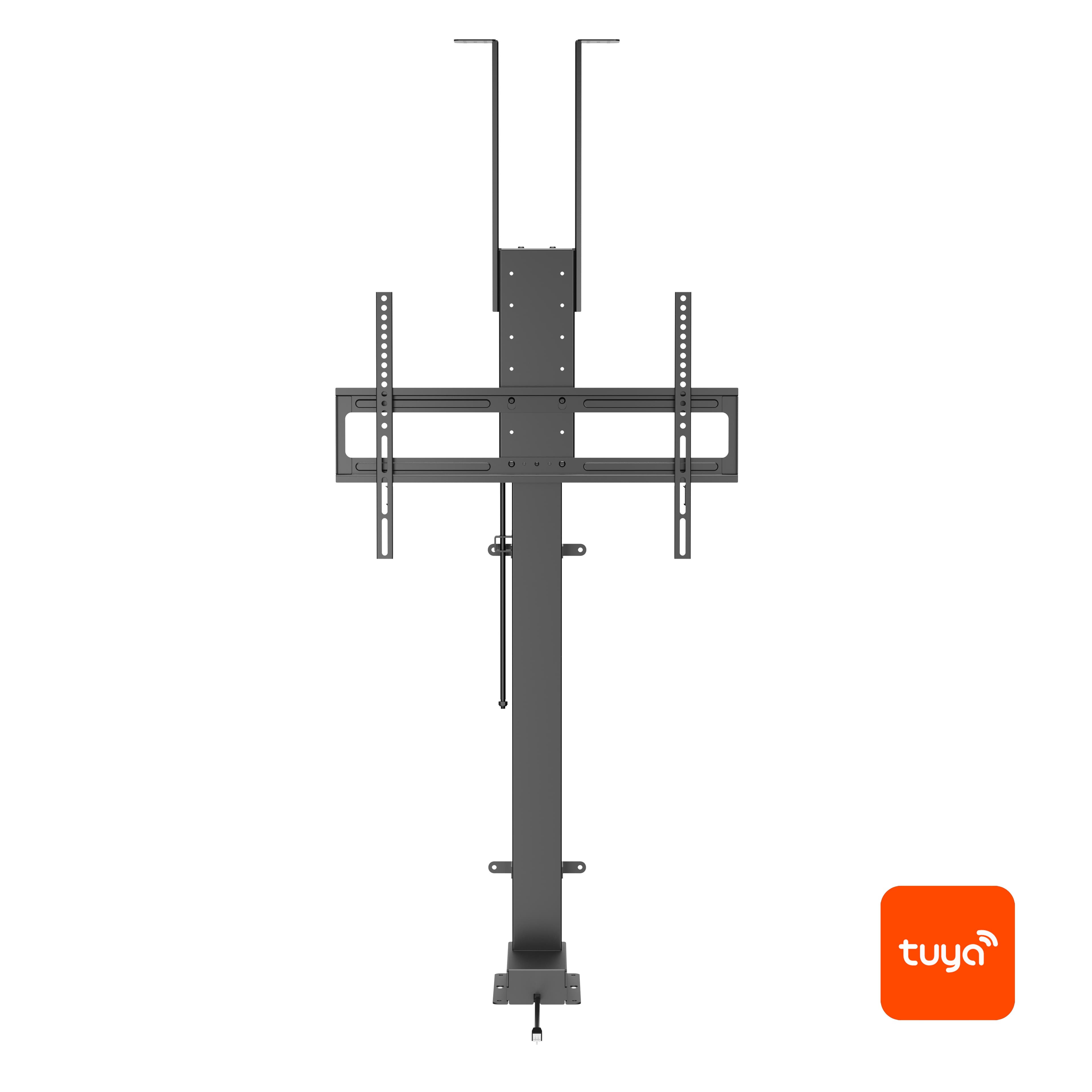

SH 48MX Pop-Up & Drop-Down Motorized TV Lift

Product Category:	Motorized TV Lift Stand
Rank:	Standard
Surface Finish:	Powder Coating
Material:	Steel,Plastic
Metal Sheet Thickness:	Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet
Color:	Matte Black
Color(accessory):	Matte Black

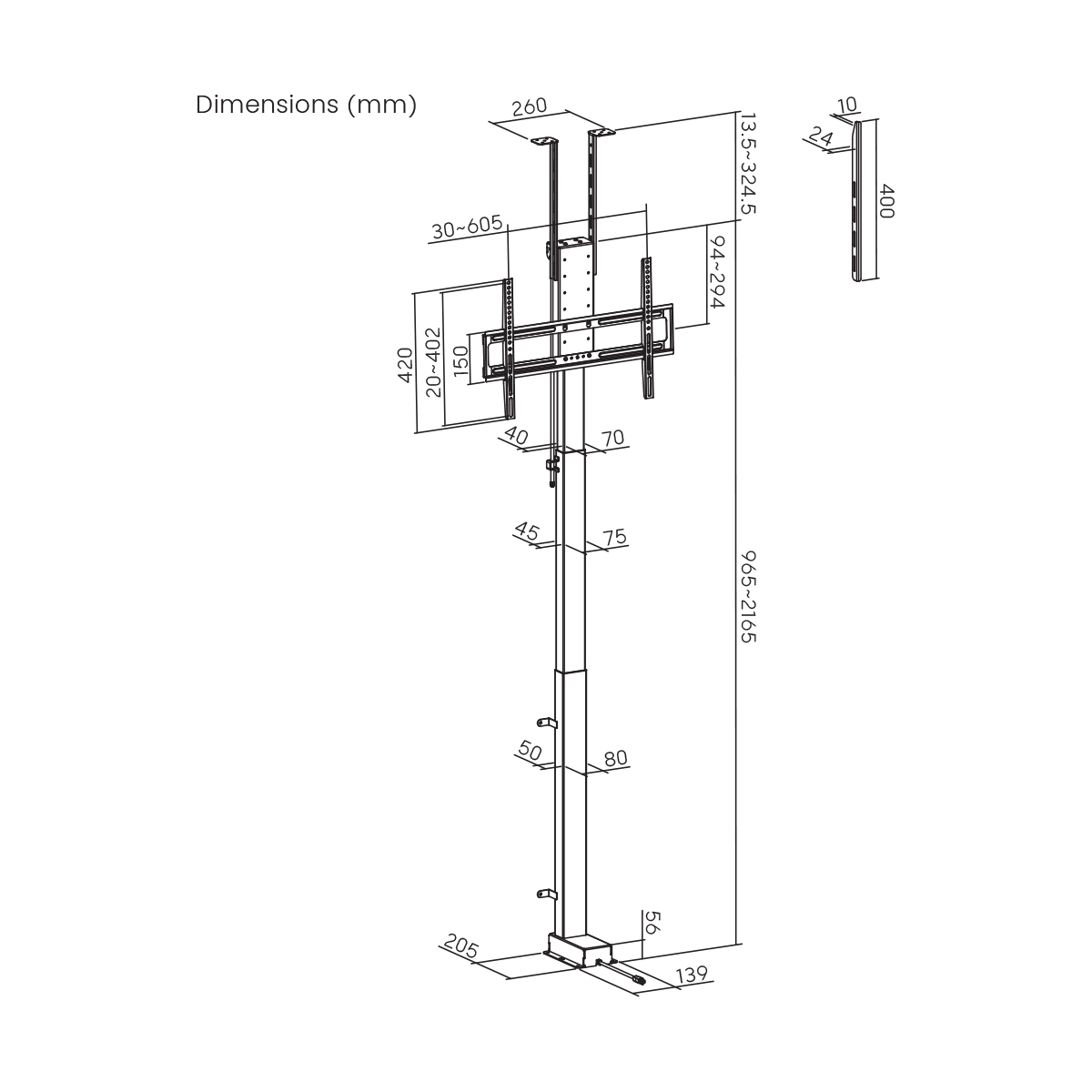

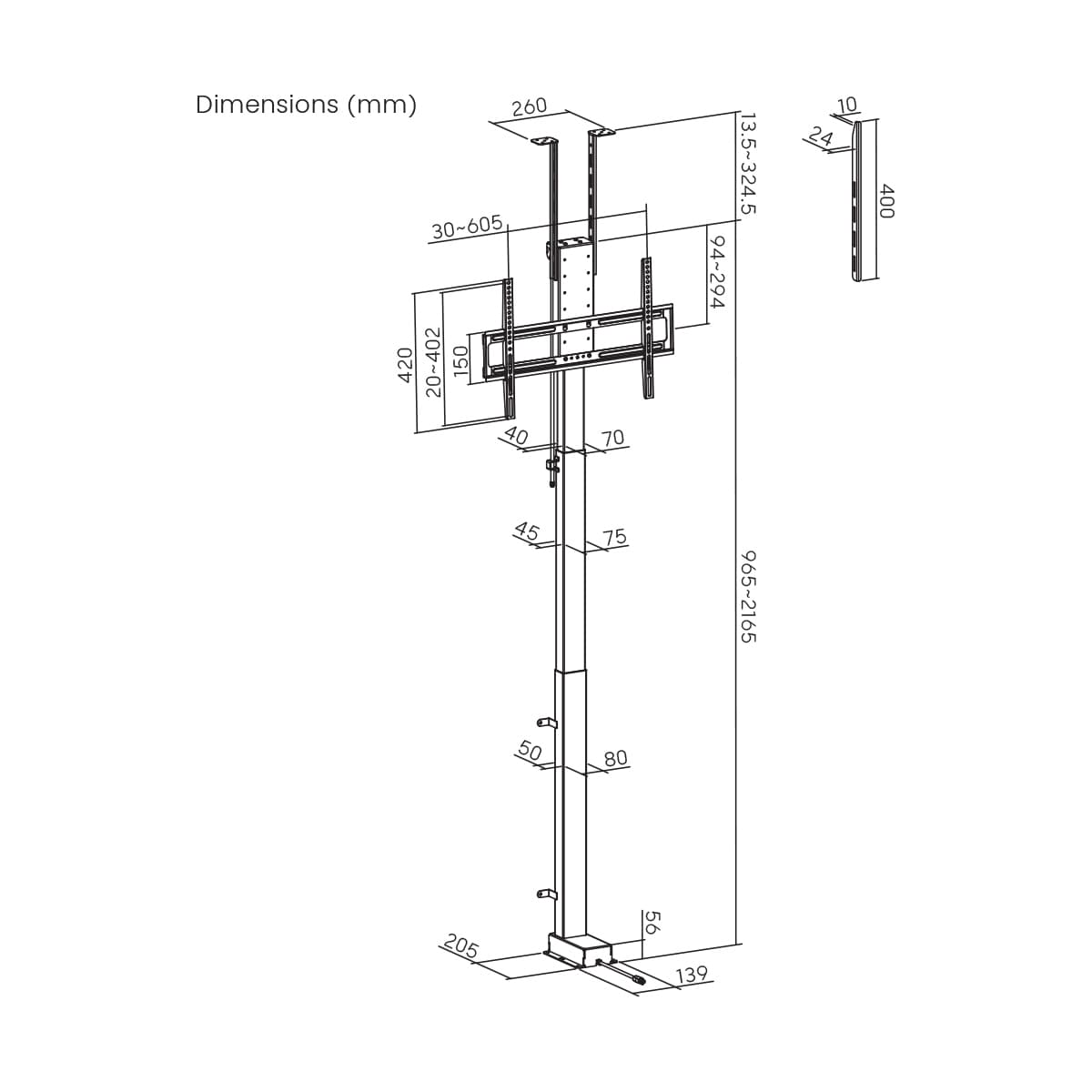

Dimensions:	216.5x635x978.5~2489.5mm
Fit Screen Size:	Suitable for most 43" ~ 88" Screen
Fit Curved TV:	Yes
Max. VESA:	600X400mm
Weight Capacity:	60kg (132lbs)
Profile:	115mm
Installation:	Ceiling Mounted,Inside the Cabinet
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Direction Indicator:	Yes
Cable Management:	No
Anti-theft:	No
Power Supply:	Input:AC 100~240V,50/60Hz;Output:DC 29V, 1.8A
Power Cord Length:	1.5m (4.9ft)
Controller Type:	Application Control,Radio Frequency(RF) Remote
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag

Motorized-Mounts

Dual Motion Design: Supports both pop-up and drop-down functionality for flexible installation options.
Wide Compatibility: Fits most 43"~88" flat and curved TVs with VESA patterns up to 600x400mm.
Heavy-Duty Build: Durable steel and plastic construction with a matte black powder-coated finish supports up to 60kg.
Smart Control Options: Operate via RF remote or mobile app for convenient adjustment.
Versatile Installation: Ideal for ceiling mounting or concealed cabinet setups, offering a clean, space-saving solution.

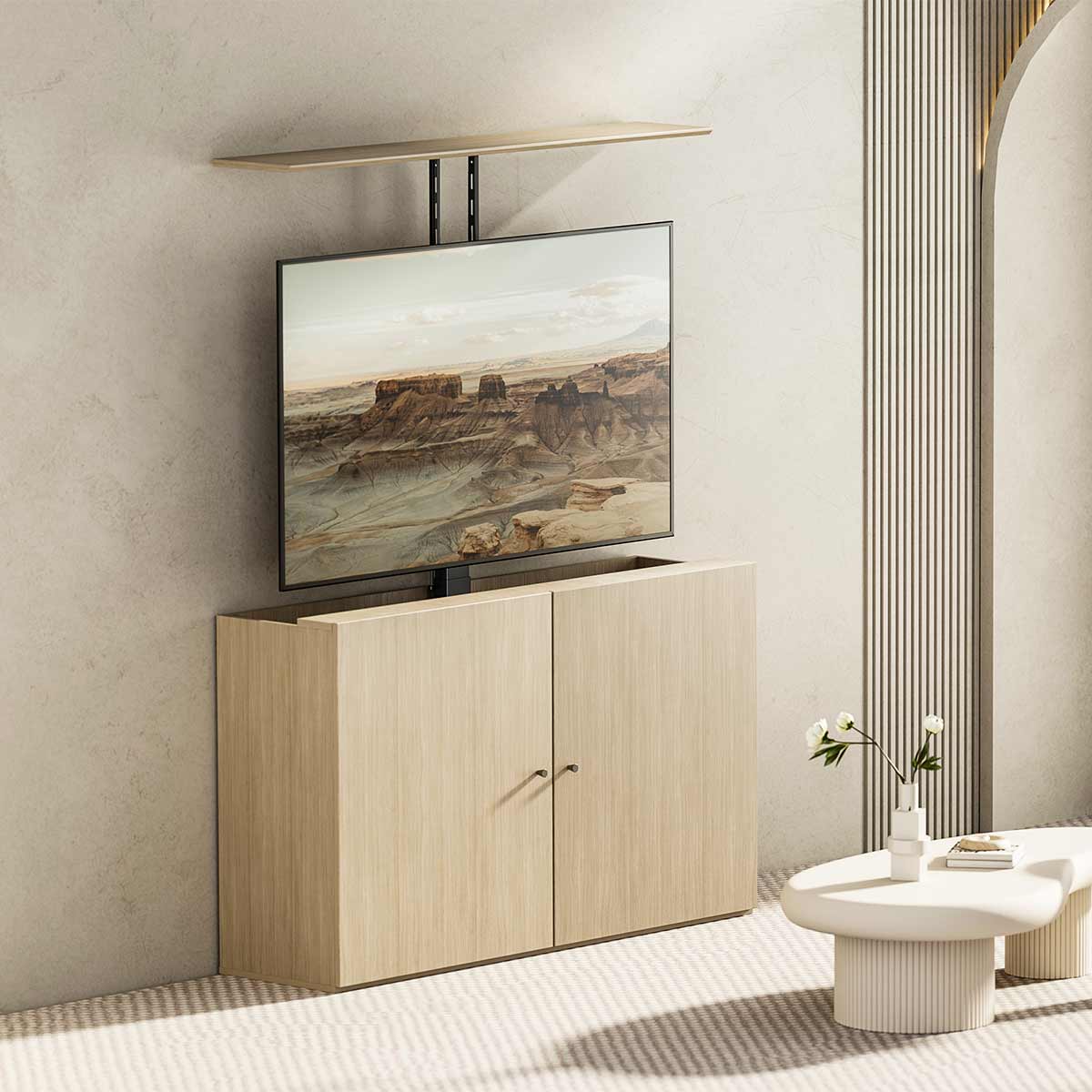

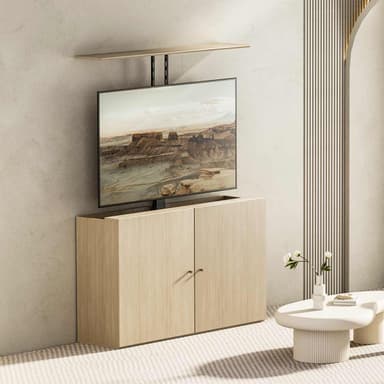

The SH 48MX Pop-Up & Drop-Down Motorized TV Lift is a versatile solution designed for hidden or ceiling-mounted TV installations. Built from durable steel and plastic with a matte black powder-coated finish, it supports most 43"~88" screens up to 60kg. Featuring smooth motorized lift and drop-down motion, detachable VESA panel (max 600x400mm), and dual control options via RF remote and app, it ensures flexible, space-saving, and modern TV integration.
