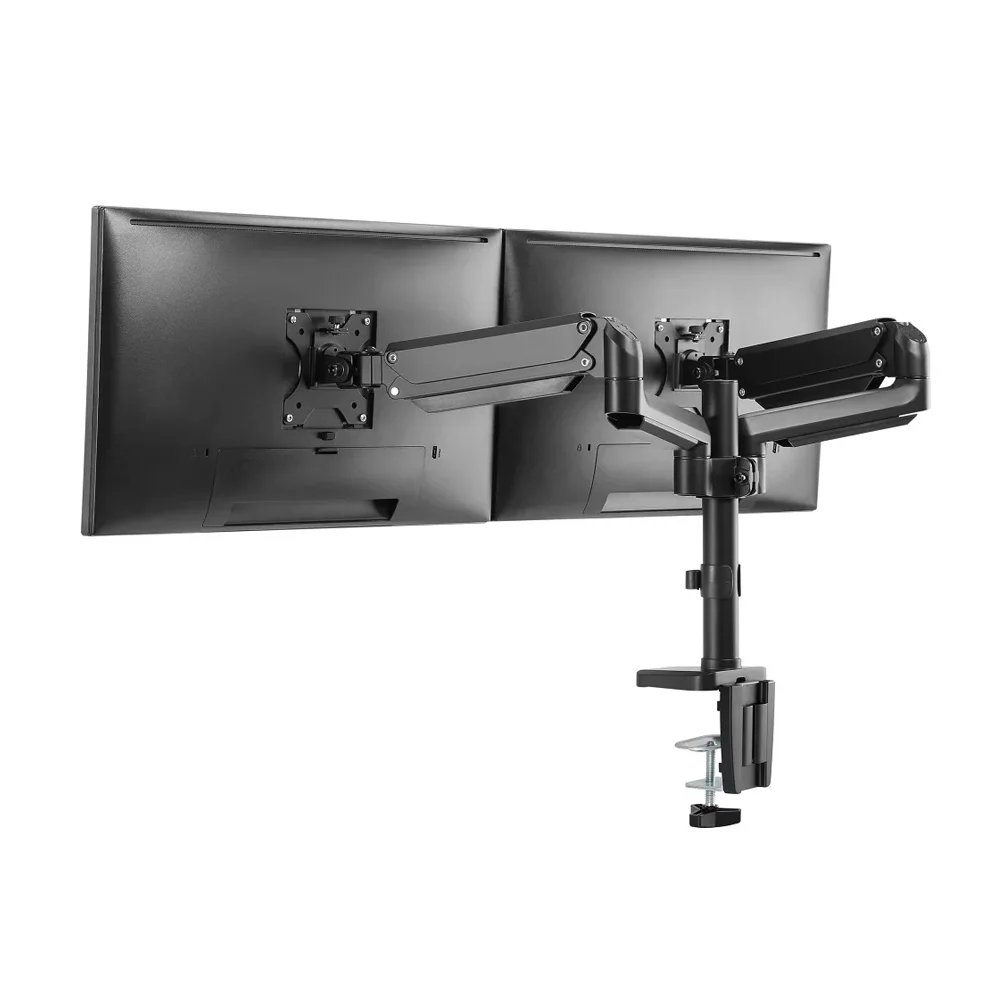

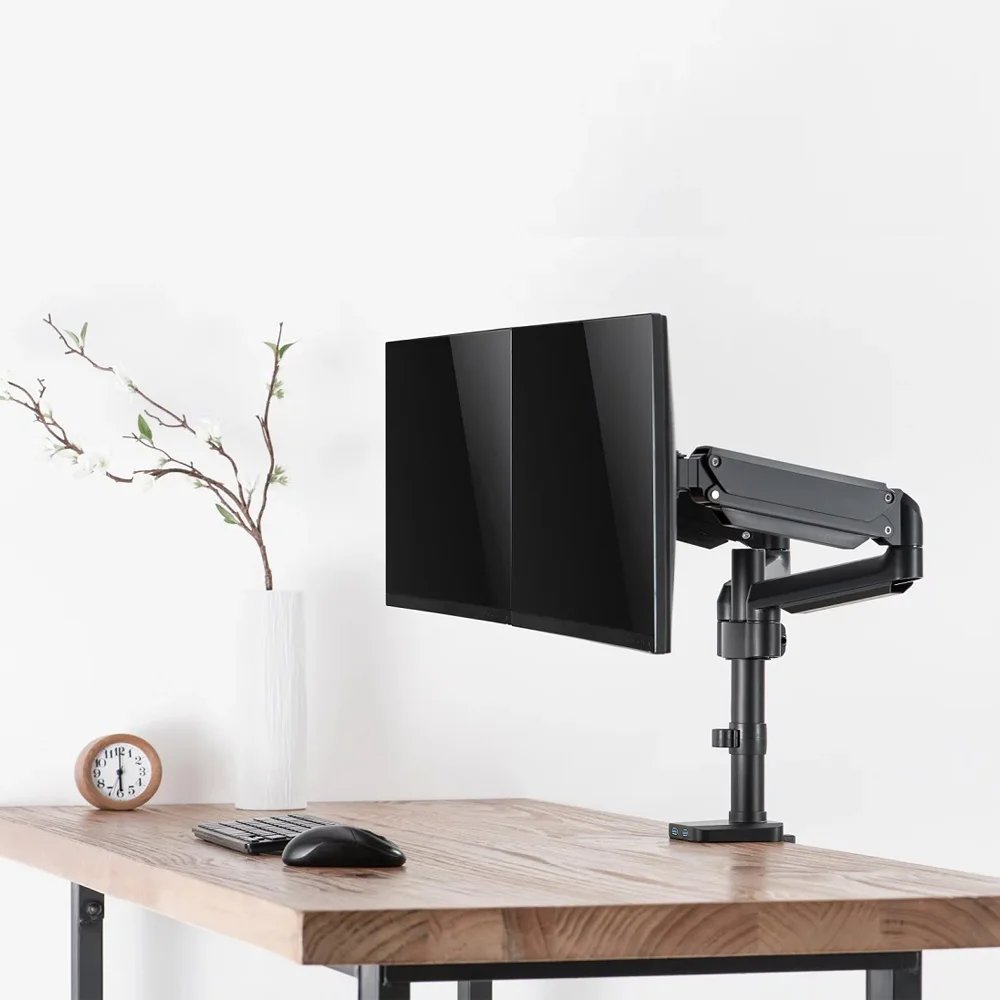

SHT26 C024UP Ergonomic Double Monitor ArmFront View of SHT26 C024UP Ergonomic Double Monitor MountBack View of SHT26 C024UP Ergonomic Double Monitor MountSHT26 C024UP Monitor Mount Writeup ImageSHT26 C024UP Ergonomic Double Monitor Arm Scenery ImageSHT26 C024UP Monitor Mount Drawing

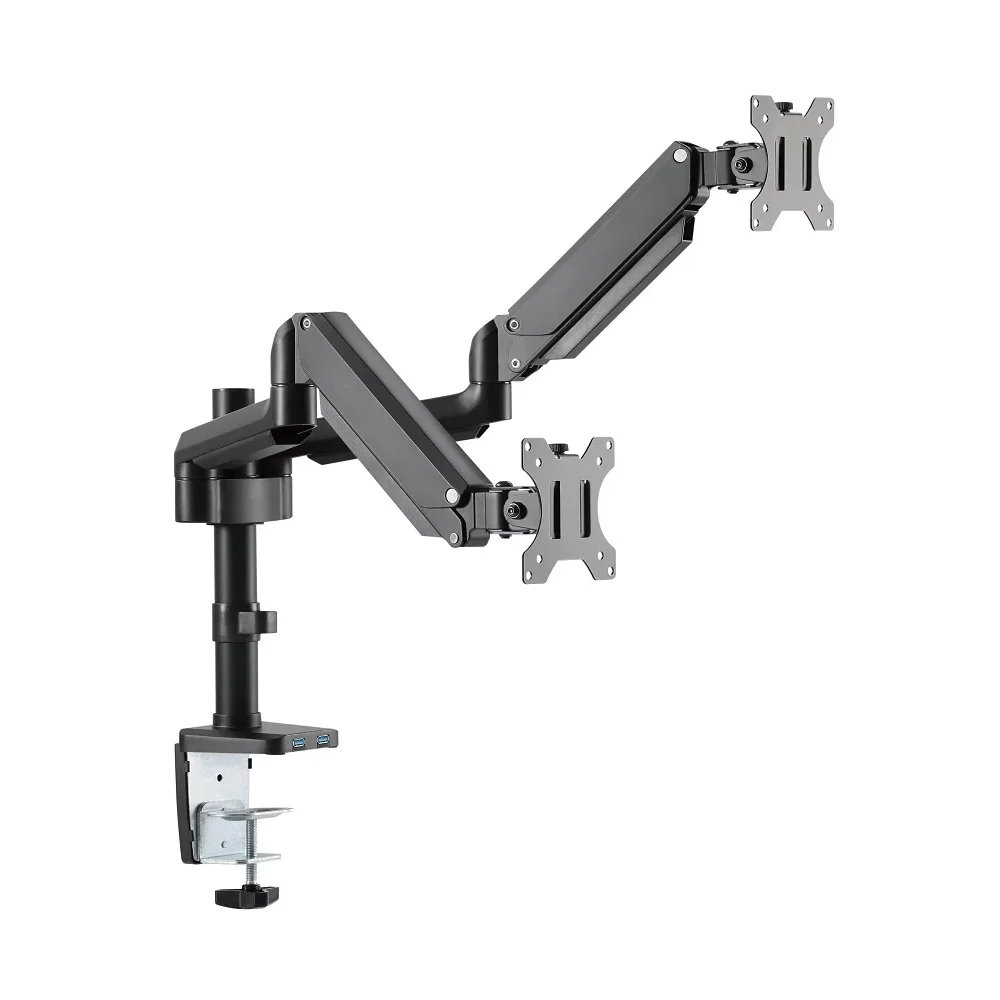

SHT26 C024UP Ergonomic Double Monitor Arm

SHT26 C024UP

Dual Monitor Thin Gas Spring Assisted Aluminium Monitor Arm

17''~32'' icon
Screen Size17''~32''
100x100mm icon
Max VESA100x100mm
1.5-8kg icon
Weight Capacity1.5-8kg
318mm icon
Profile318mm
+45° ~ -45° icon
Tilt Range+45° ~ -45°

Tags:Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm,Dual Monitor Thin Gas Spring Assisted Aluminium Monitor Arm, SHT26C024UP

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankStandard
MaterialAluminium,Steel,Plastic
Surface FinishPowder Coating
ColorMatte Black
Swivel Range+90° ~ -90°
Screen Rotation+180° ~ -180°
Arm Full Extension507mm (20")
Pole Height318mm (12.5")
InstallationClamp,Grommet
Product CategoryGas Spring Monitor Arm
RankStandard
MaterialAluminium,Steel,Plastic
Surface FinishPowder Coating
ColorMatte Black

Features

  • Dual USB 3.0 PortsConveniently charge and connect devices directly from your desk setup.
  • Wide Monitor CompatibilityFits most 17" to 32" flat or curved screens with a weight capacity of 1.5 to 8 kg per monitor.
  • Flexible AdjustmentsOffers +45° to -45° tilt, ±90° swivel, and ±180° rotation for ergonomic viewing angles.
  • Durable and StylishMade from aluminum, steel, and plastic with a matte black powder-coated finish for long-lasting use.
  • Versatile InstallationSupports clamp and grommet mounting for desktop thicknesses from 10mm to 85mm with quick-release VESA plates.

Description

The SHT26 C024UP is a sleek dual monitor gas spring arm designed for 17"–32" screens, including curved monitors. Crafted from durable aluminum, steel, and plastic with a matte black powder-coated finish, it supports up to 8kg per screen. With 45° tilt, 90° swivel, and full rotation, it ensures ergonomic flexibility. Features include 2 USB 3.0 ports, quick-release VESA plates, and integrated cable management—ideal for a clean, efficient workspace.

Installation Video

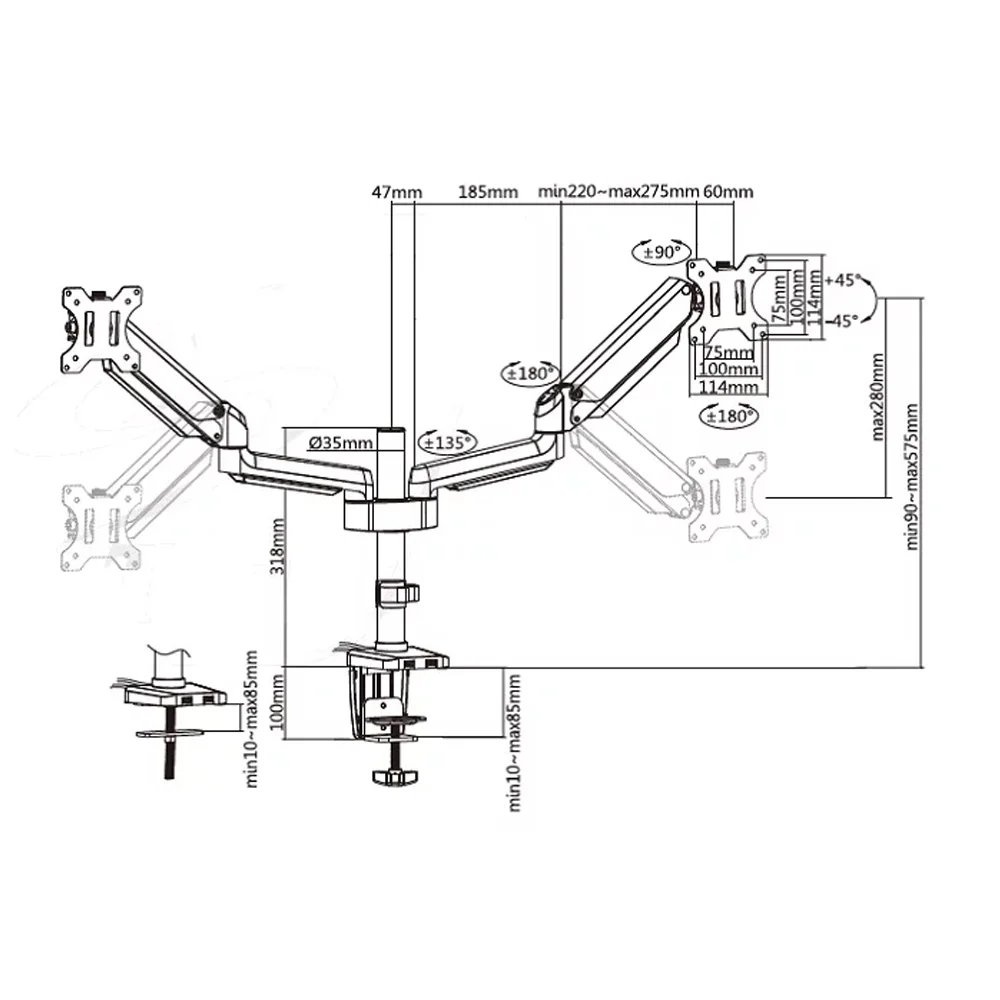

Drawing

Drawing
