SHS02 C01 Ergonomic Single Monitor Arm
SHS02 C01

Sit-Stand Workstation Mount

13''~32'' icon
Screen Size13''~32''
100x100mm icon
Max VESA100x100mm
8kg icon
Weight Capacity8kg
+15°~-5° icon
Tilt Range+15°~-5°
360° icon
Screen Rotation360°

Tags:Monitor Arm, Heavy-Duty Monitor Arm, Gas Spring Monitor Arm, Dual Monitor Arm, Monitor Pole Mount, Monitor Arm with USB Port, Counterbalance Monitor Arm, Clamp-On Monitor Arm, Monitor Mount, Sit-Stand Workstation Mount, SHS02C01

Data Sheet

Overview

Product CategoryTabletop Workstation
RankStandard
MaterialSteel,Aluminum,Plastic
ColorSliver
Fit Screen SizeSuitable for most 13″ ~ 32" Screen
Worksurface Size(LxW)666x260mm  (26.2″x10.2″)
Max. VESA100X100mm
Keyboard Weight Capacity1kg (2.2lbs)
Height AdjustmentManual
Quick Release VESA PlateYes
Product CategoryTabletop Workstation
RankStandard
MaterialSteel,Aluminum,Plastic
ColorSliver
Fit Screen SizeSuitable for most 13″ ~ 32" Screen

Features

  • Ergonomic Sit-Stand DesignEnables easy transition between sitting and standing positions for enhanced comfort and productivity.
  • Wide CompatibilitySupports most 13"~32" monitors up to 8kg with 100x100mm VESA mounting.
  • Flexible AdjustabilityOffers +15°~-5° tilt, +90°~-90° swivel, and 360° screen rotation with 20~495mm height range.

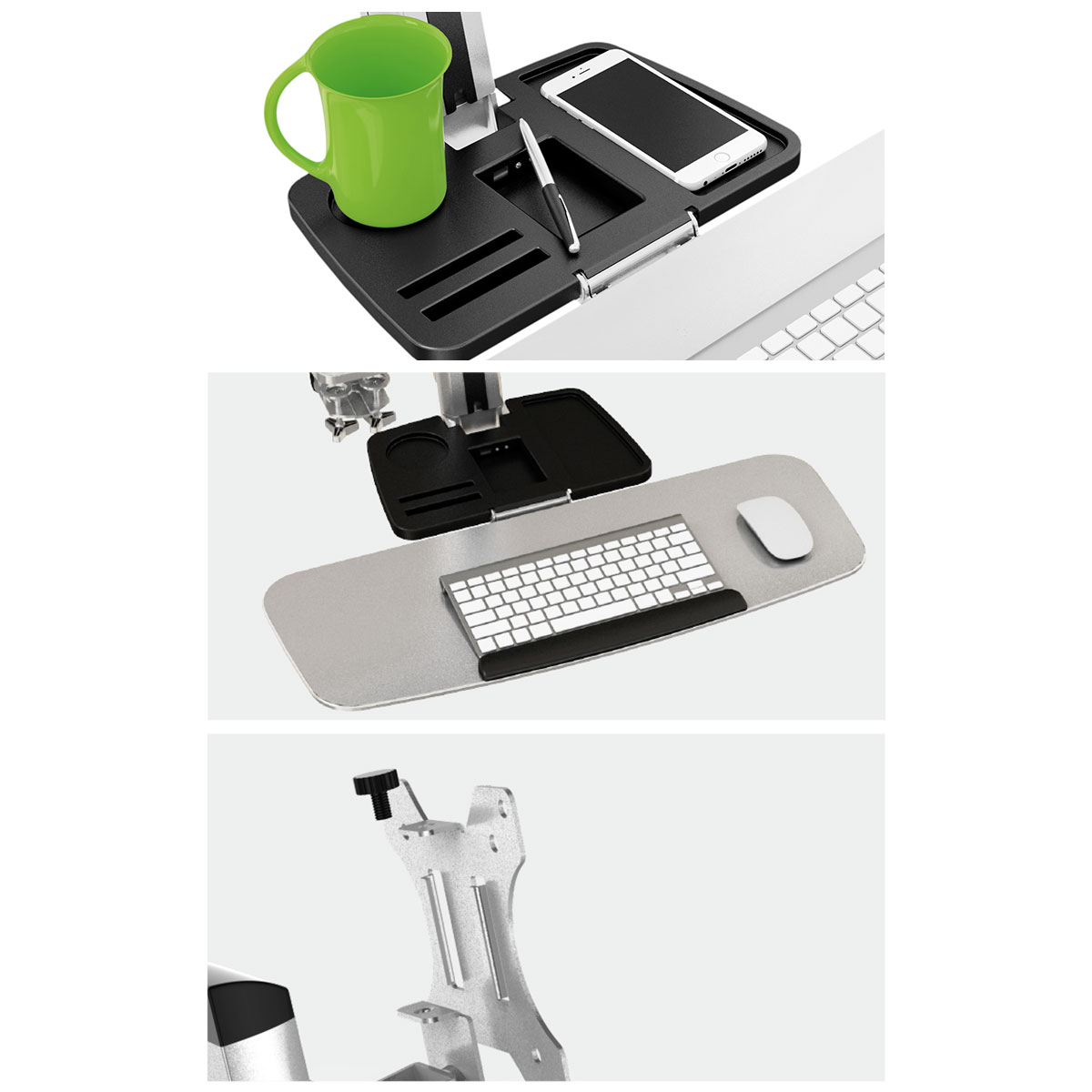

  • Integrated Keyboard TraySpacious 666x260mm surface supports up to 1kg for convenient typing.
  • Stable Installation OptionsSupports both clamp and grommet mounting for secure desk setup.

Description

The SHS02 C01 Sit-Stand Workstation Mount offers ergonomic flexibility for modern workspaces, supporting most 13"~32" monitors up to 8kg. Constructed from steel, aluminum, and plastic in a sleek silver finish, it provides a 20~495mm height range and smooth tilt, swivel, and 360° rotation adjustments. The integrated keyboard tray and manual height control enhance comfort and productivity, while the clamp and grommet installation ensure stability and easy setup.

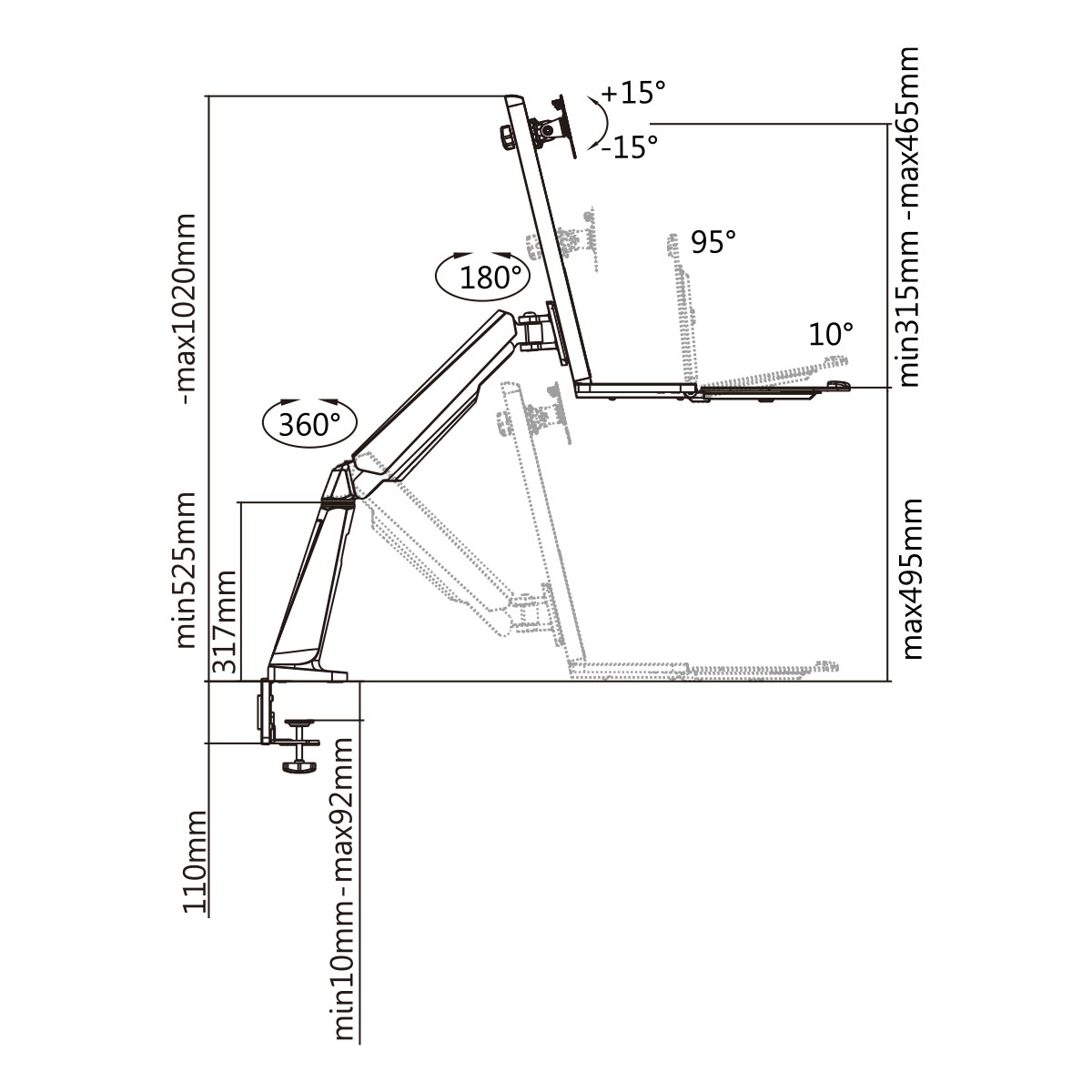

Drawing

Drawing
