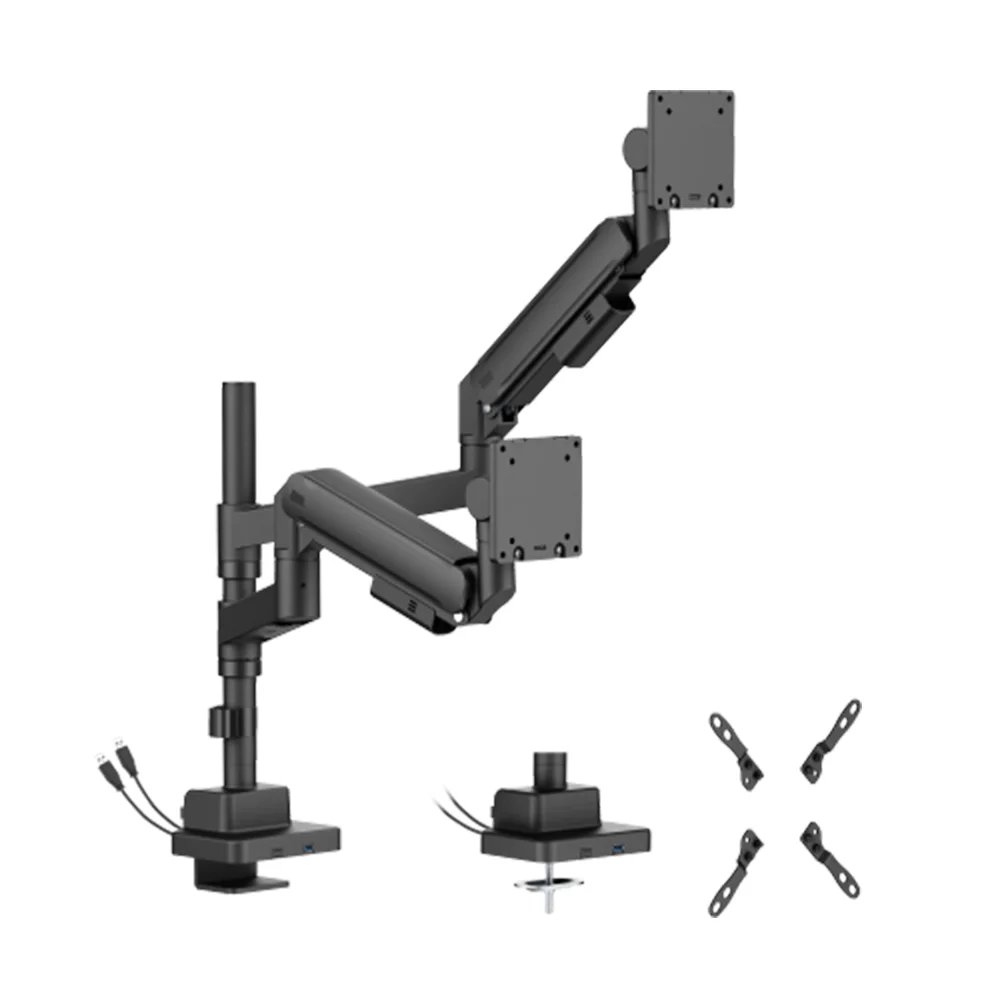

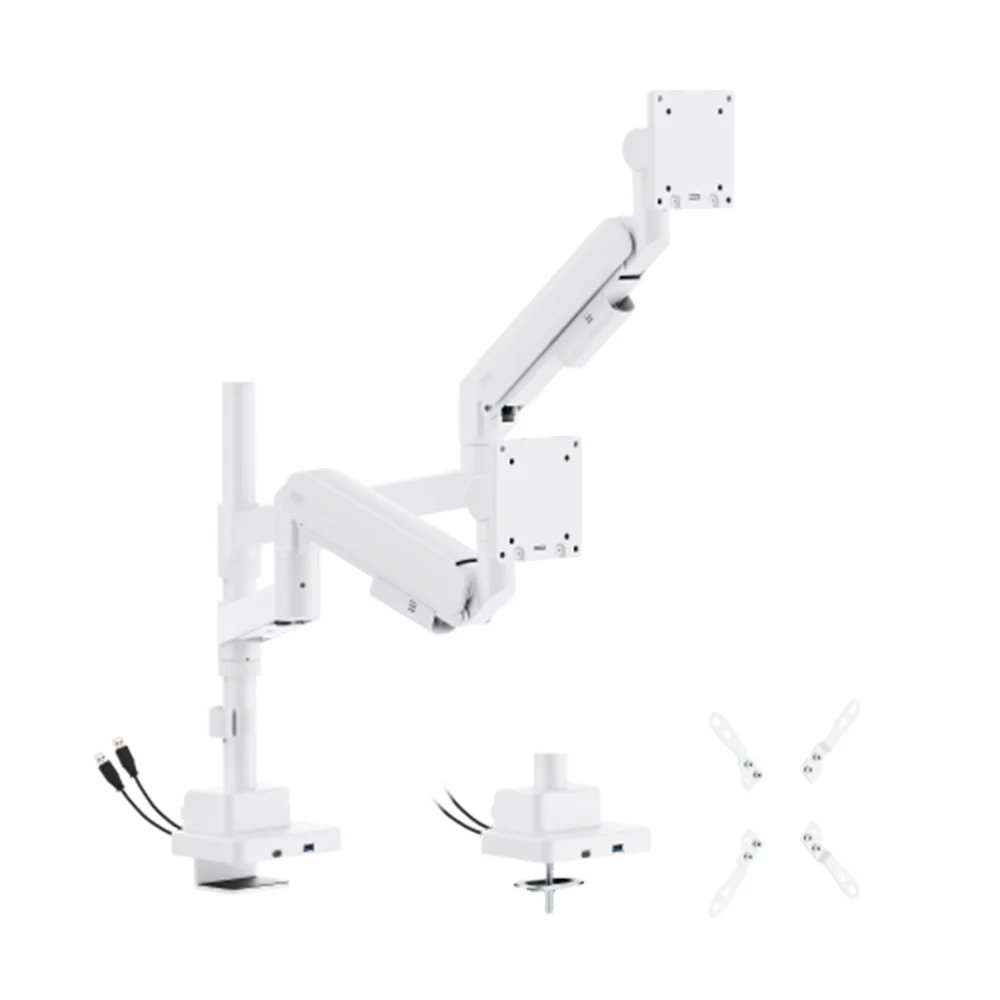

| Product Category: | Gas Spring Monitor Arm |
| Rank: | Standard |
| Material: | Steel,Aluminum,Plastic |
| Surface Finish: | Powder Coating |
| Color: | Matte Black,Matte White |

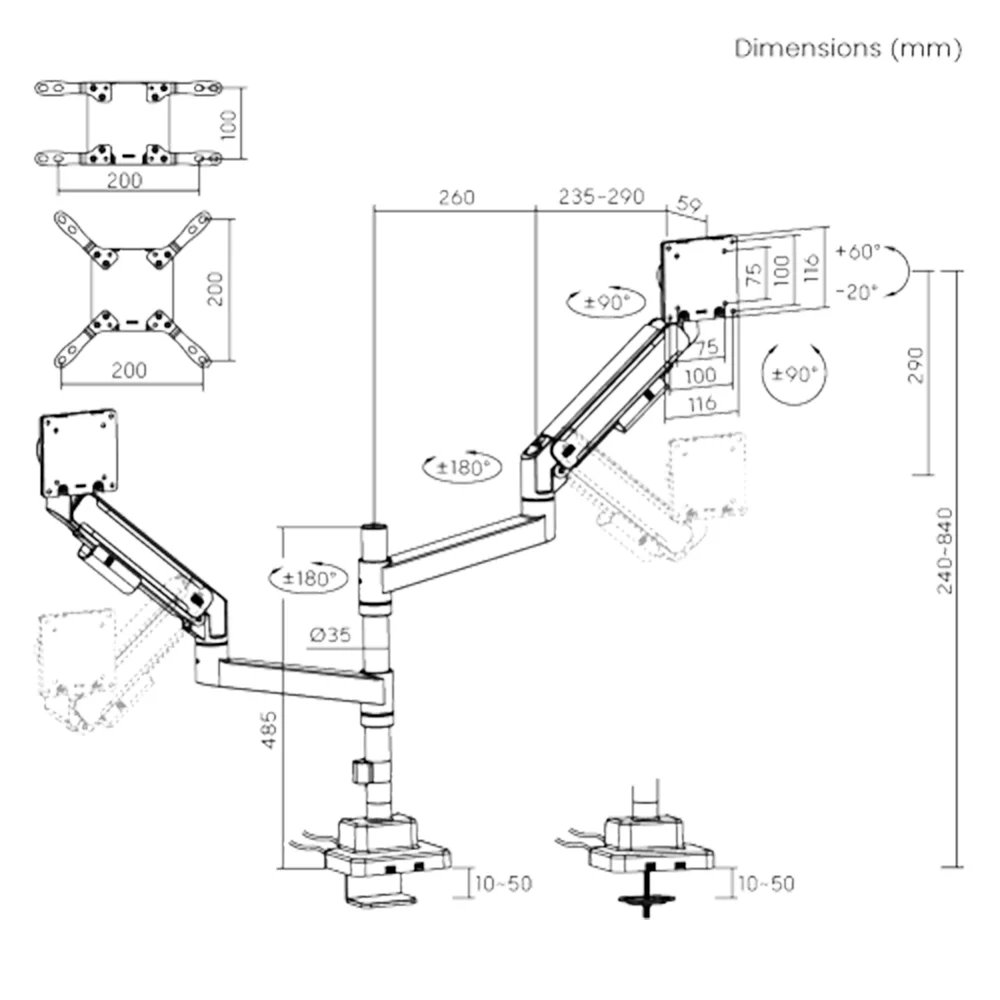

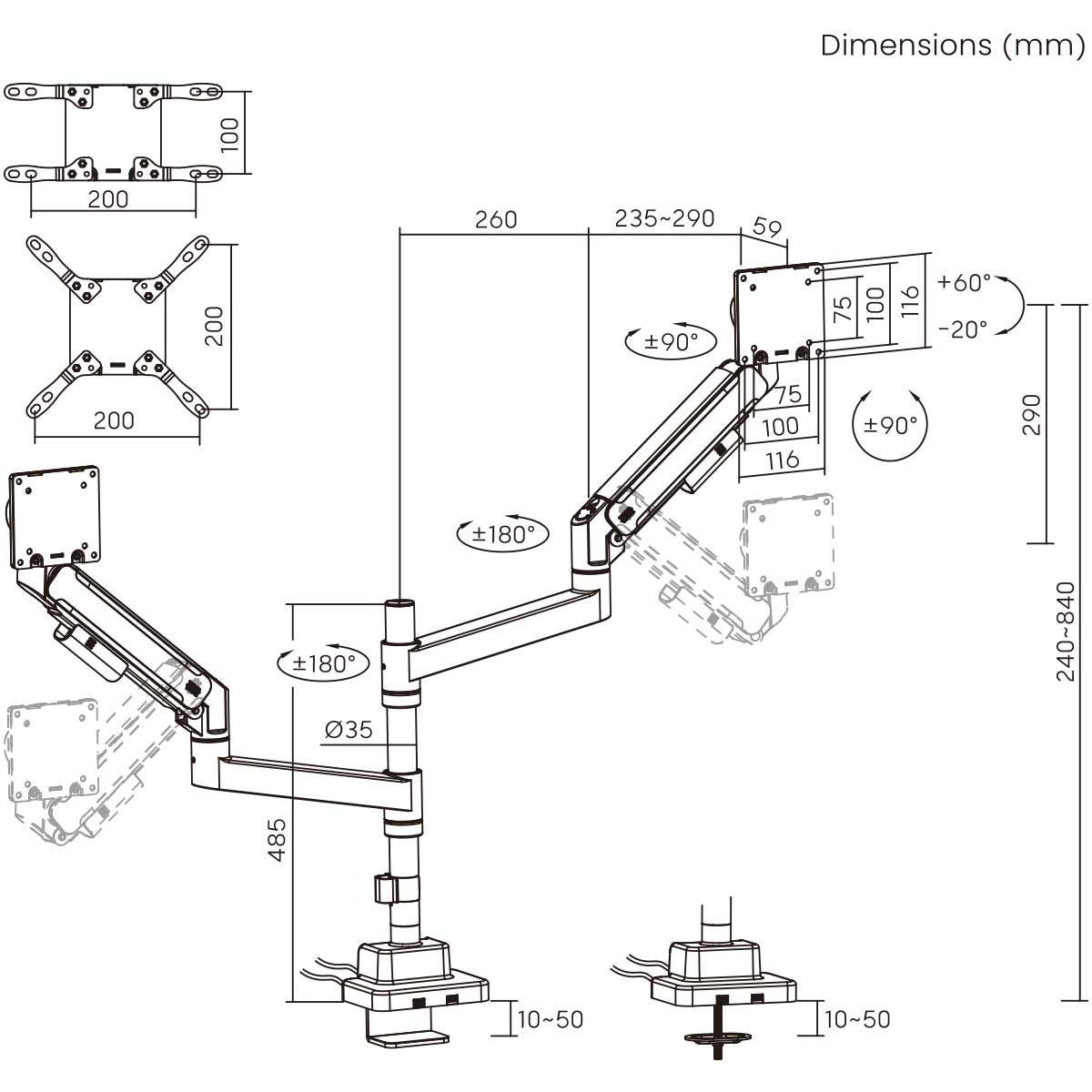

| Dimensions: | 156x600x815mm (6.1"x23.6"x32.1") |
| Fit Screen Size: | 24"-57" |
| Fit Curved Monitor: | Yes |
| Screen Quantity: | 1 |
| Weight Capacity (per screen): | 2~27kg (4.4lbs~59.4lbs) |
| Weight Capacity for Curved Screen (per screen): | 2~22kg (4.4lbs~48.4lbs) |
| VESA Compatible: | 75x75,100x100,100x200,200x100,200x200 |
|
Tilt Range:
|
+60°~-20° |
| Swivel Range: | +90°~-90° |
| Screen Rotation: | +90°~-90° |
| Arm Full Extension: | 550mm (21.7") |
| Pole Height: | 385mm (15.2") |
| Installation: | Clamp,Grommet |
| Suggested Desktop Thickness: | Clamp:10~50mm Grommet:10~50mm (Clamp:0.39"~2" Grommet:0.39"~2") |
| Quick Release VESA Plate: | Yes |

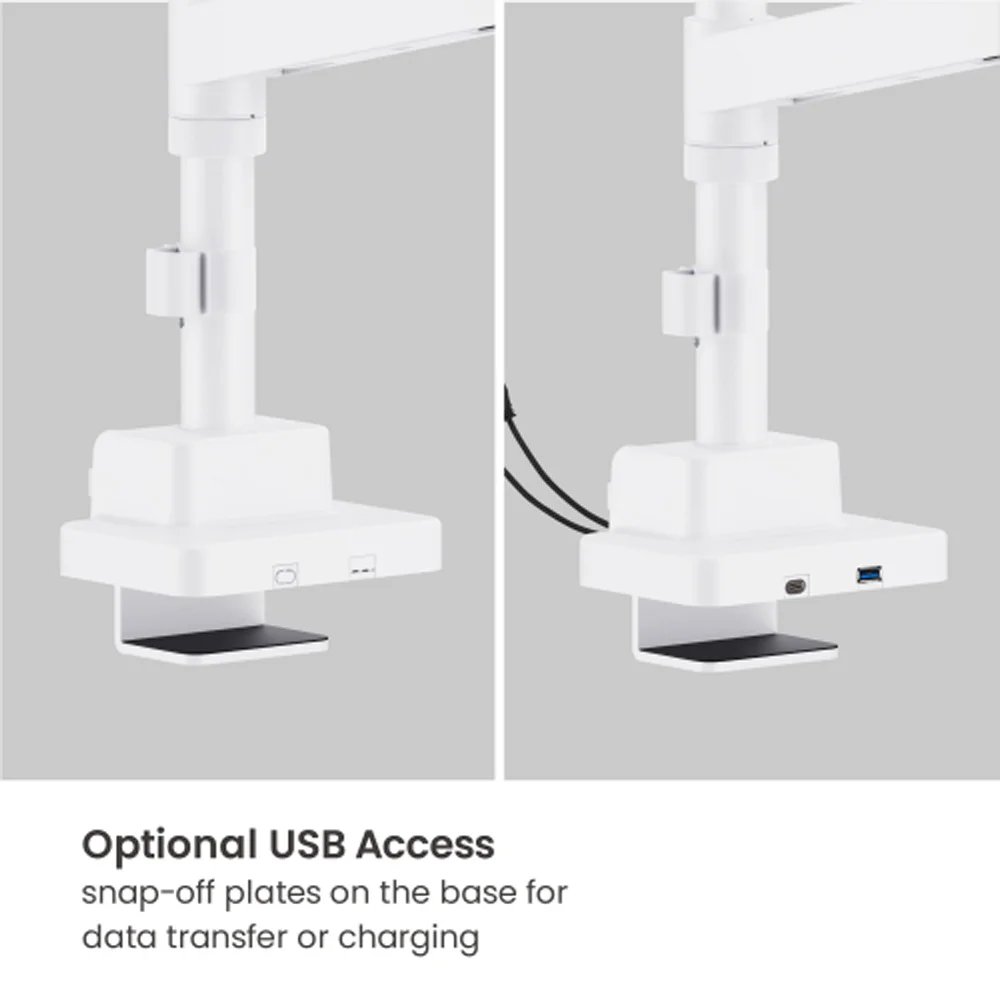

| USB Port: | 1xUSB 3.0 Port,1xTYPE-C |
| Cable Management: | Yes |
| Accessory Kit Package: | Normal/Ziplock Polybag,Compartment Polybag |

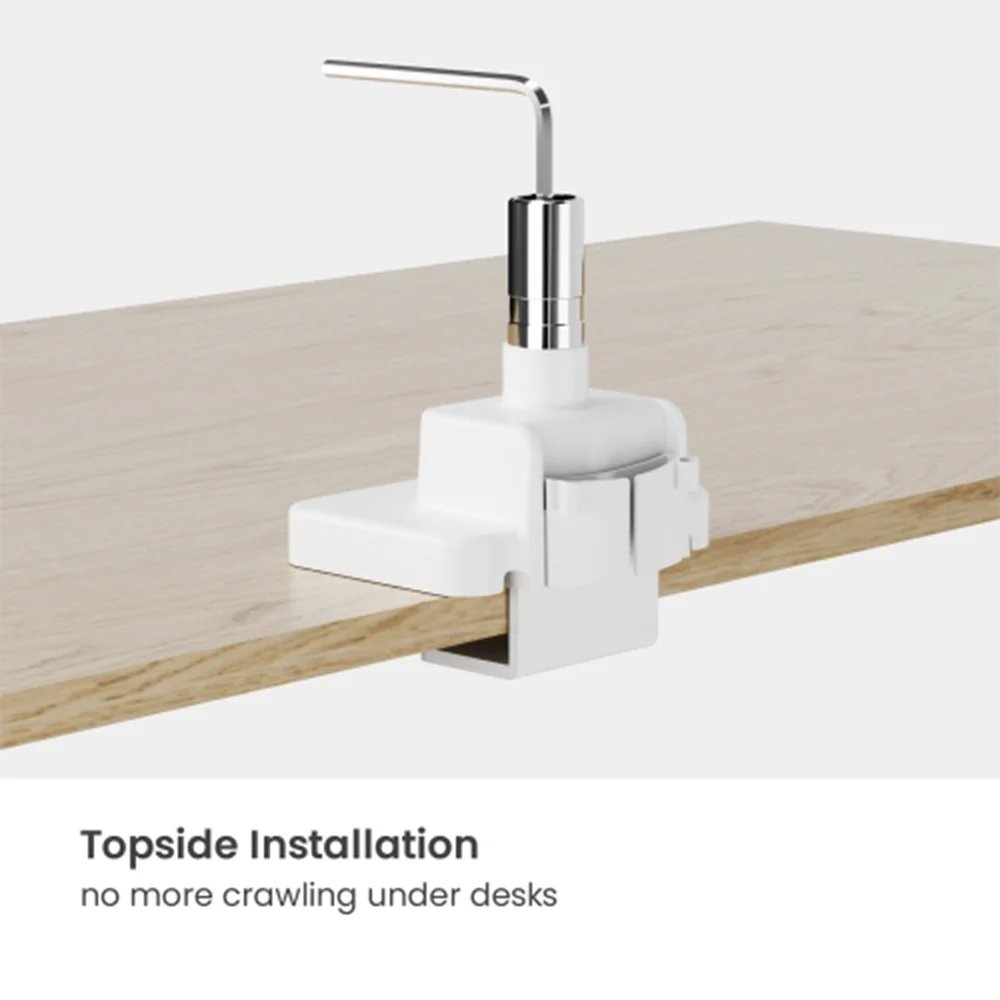

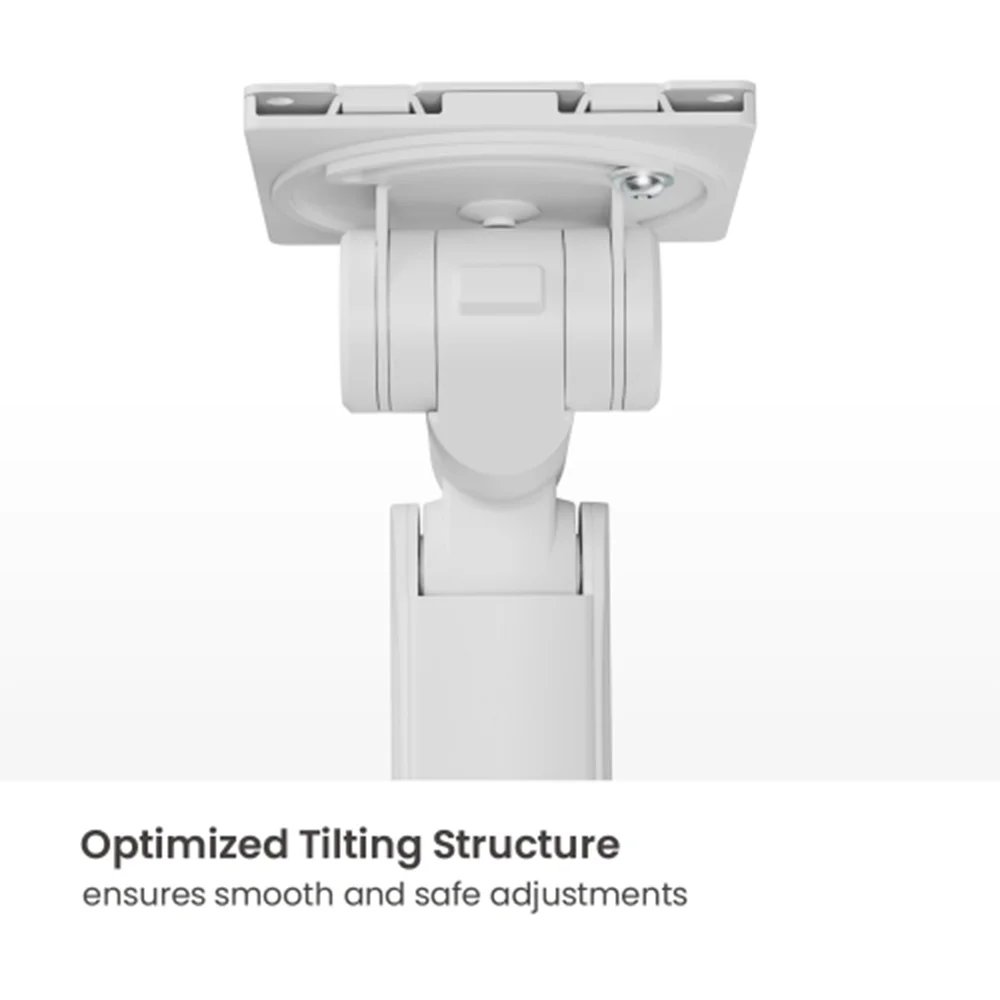

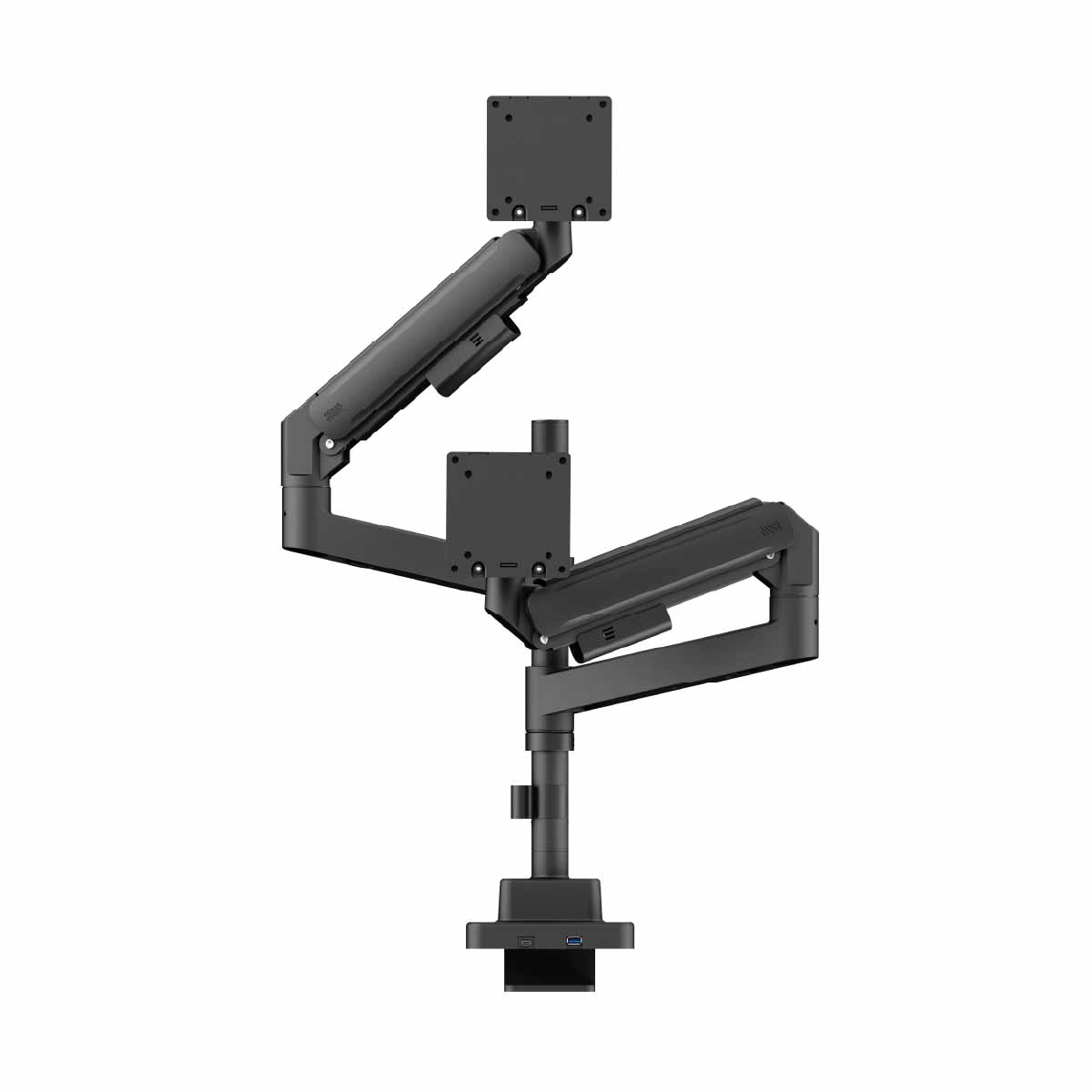

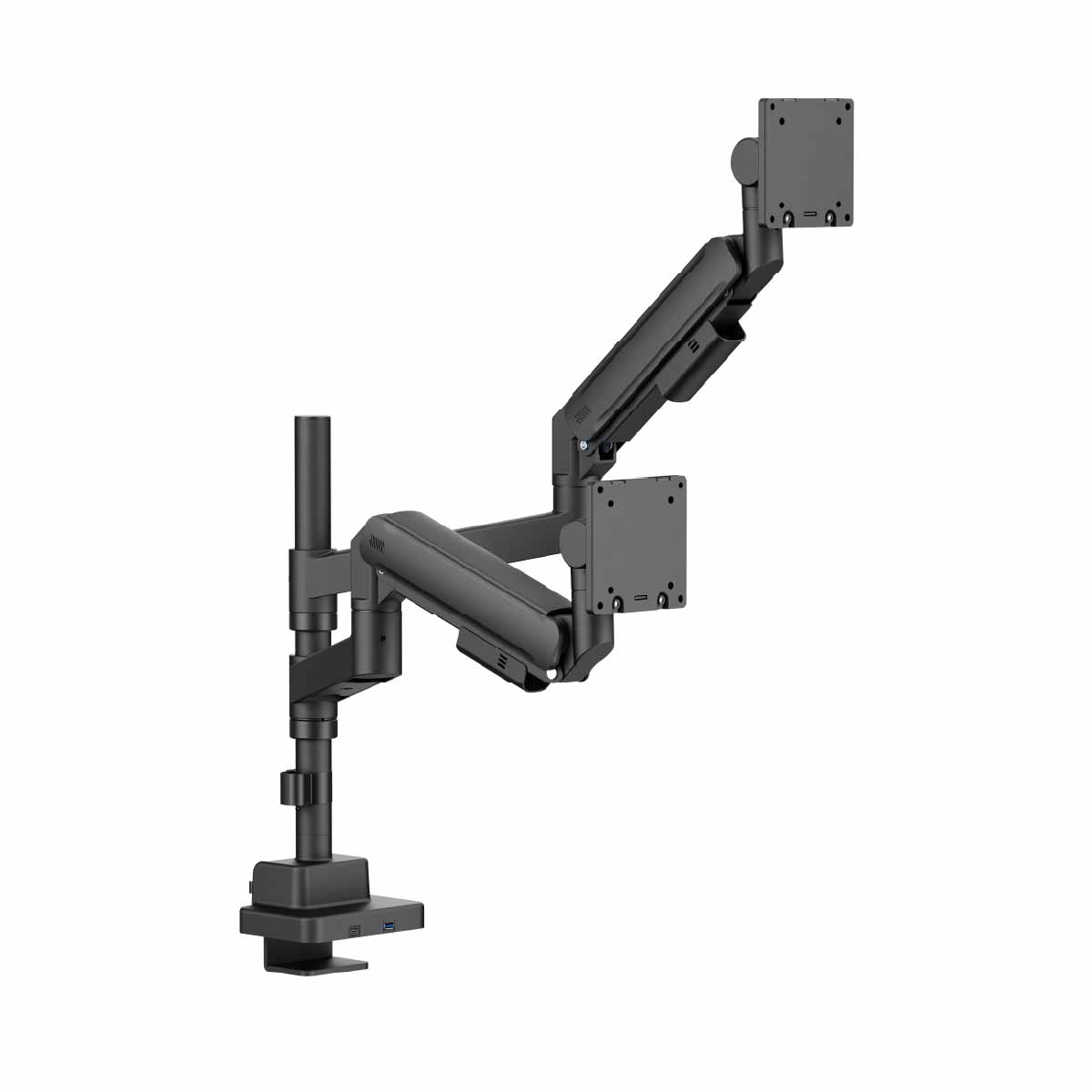

Designed with sturdy construction and precision engineering, The SH 87-C024UCP Titan monitor arm effortlessly supports large and heavy monitors, providing stability and durability for even the most intensive work environments. Optimized tilt structure ensures smooth and secure adjustments. Integrated rotation stops prevent the arm from hitting adjacent partitions and walls. Included VESA adapters accommodate monitors with different VESA patterns. Topside installation eliminates the need to crawl under desks.
