SH87 C012UCP

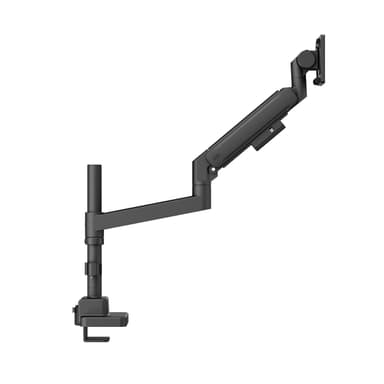

Titan Heavy-Duty Pole-Mounted Gas Spring Monitor Arm With USB-A And USB-C Ports
Screen Size24''~57''
Max VESA200x200mm
Weight Capacity2~27kg
Profile385mm
Tilt Range+60°~-20°
Overview
| Product Category | Gas Spring Monitor Arm |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic,Aluminum |
| Surface Finish | Powder Coating |
| Color | Matte Black,Matte White |
| Tilt Range | +60° ~ -20° |
|---|---|
| Swivel Range | +90°~-90° |
| Screen Rotation | +90° ~ -90° |
| Arm Full Extension | 550mm (21.7") |
| Pole Height | 385mm (15.2") |
| Product Category | Gas Spring Monitor Arm |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic,Aluminum |
| Surface Finish | Powder Coating |
| Color | Matte Black,Matte White |
Features
- Wide CompatibilitySupports most 24″ to 57″ monitors, including curved screens, with VESA patterns up to 200x200mm.
- High Load CapacityHolds up to 27kg (59.4lbs) for flat screens and 22kg (48.4lbs) for curved displays.
- Full Motion RangeOffers +60°-20° tilt, +90°-90° swivel, and +90°~-90° screen rotation.
- USB-A & USB-C PortsBuilt-in USB 3.0 and Type-C ports for convenient device connectivity.

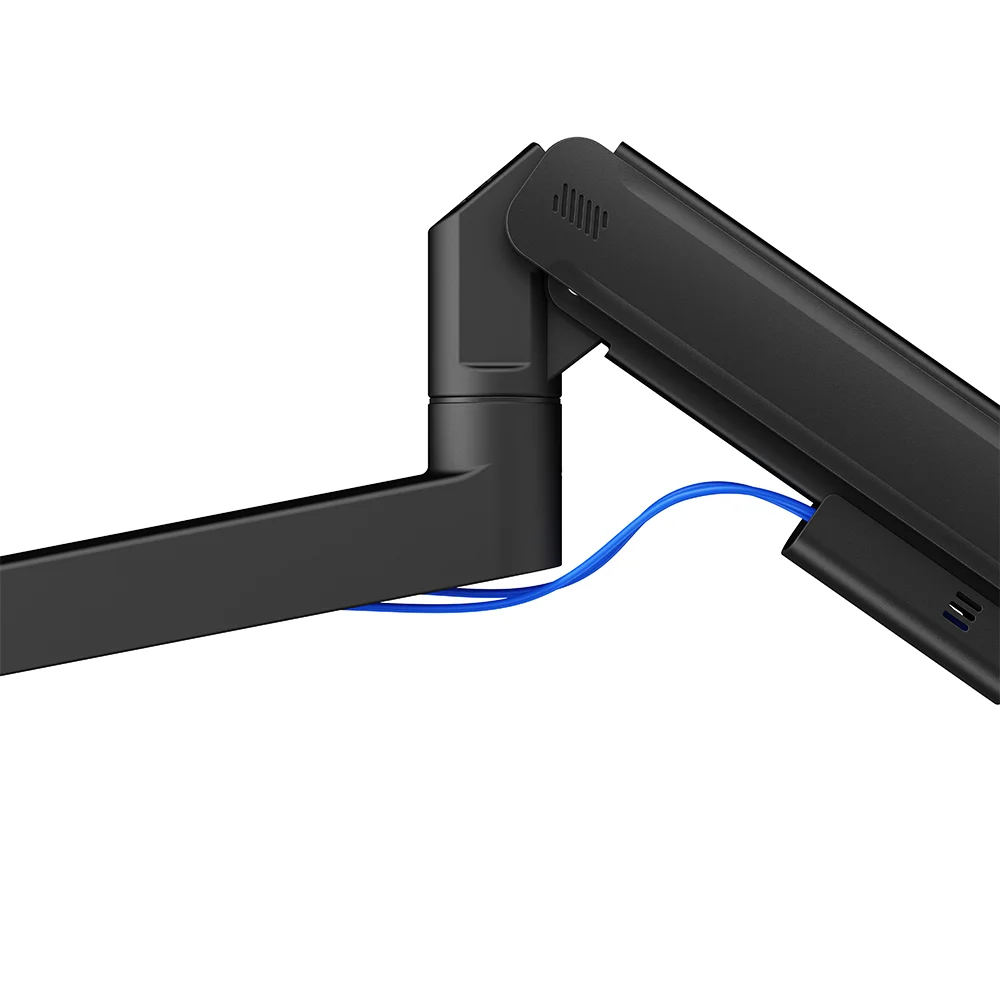

- Ergonomic & Durable DesignConstructed from steel, aluminum, and plastic with powder coating, plus integrated cable management and a quick release VESA plate.
Description

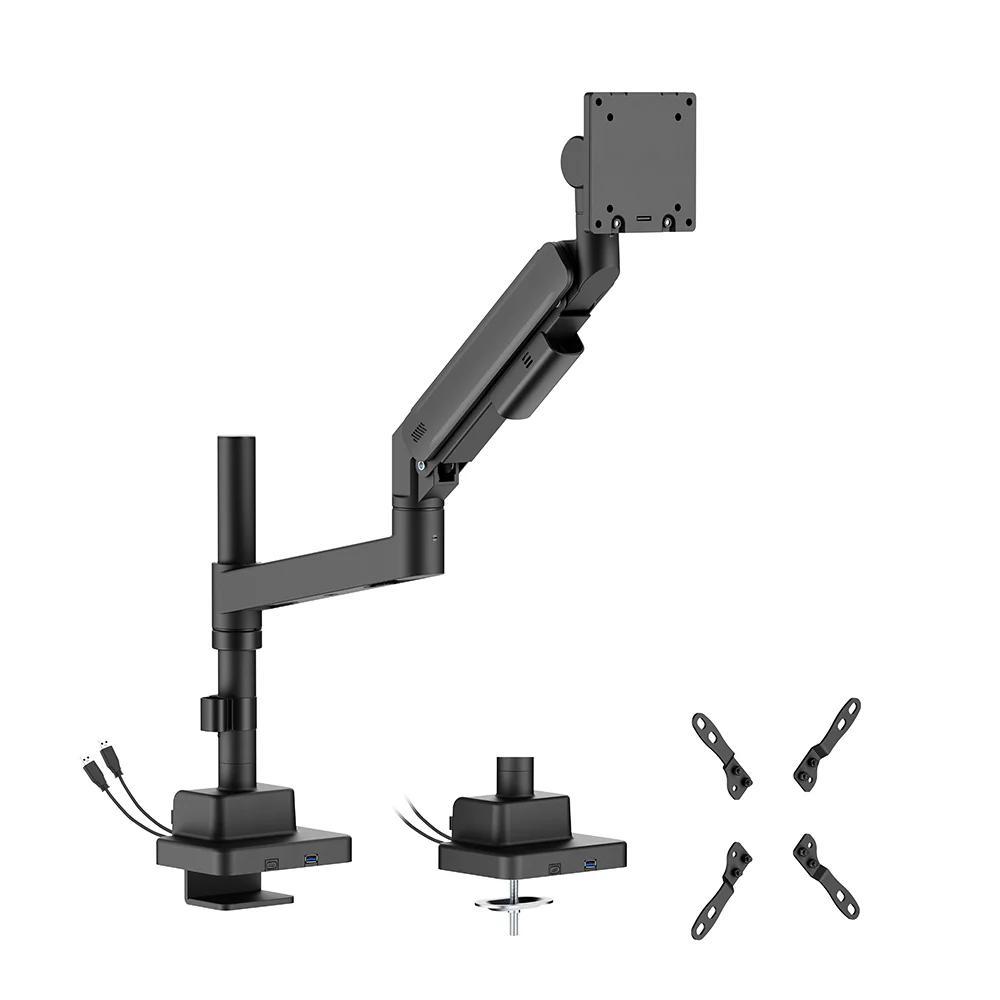

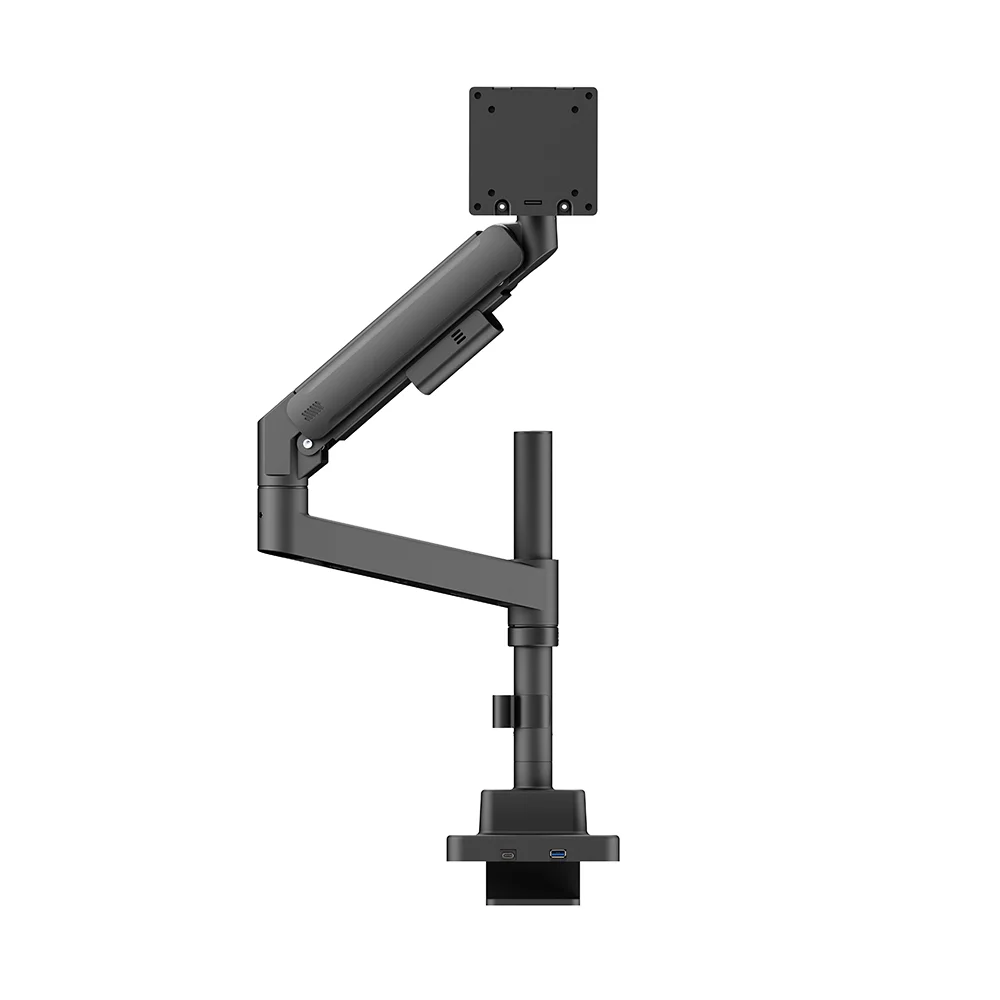

The SH87-C012UCP Titan Gas Spring Monitor Arm is a heavy-duty, pole-mounted solution built for large screens from 24″ to 57″, supporting up to 27kg. Its premium gas spring mechanism allows smooth tilt, swivel, and rotation adjustments. With USB-A and USB-C ports for connectivity, it offers both functionality and convenience. Designed with strong steel and aluminum construction, this arm features integrated cable management and a quick release VESA plate for easy setup.
Installation Video

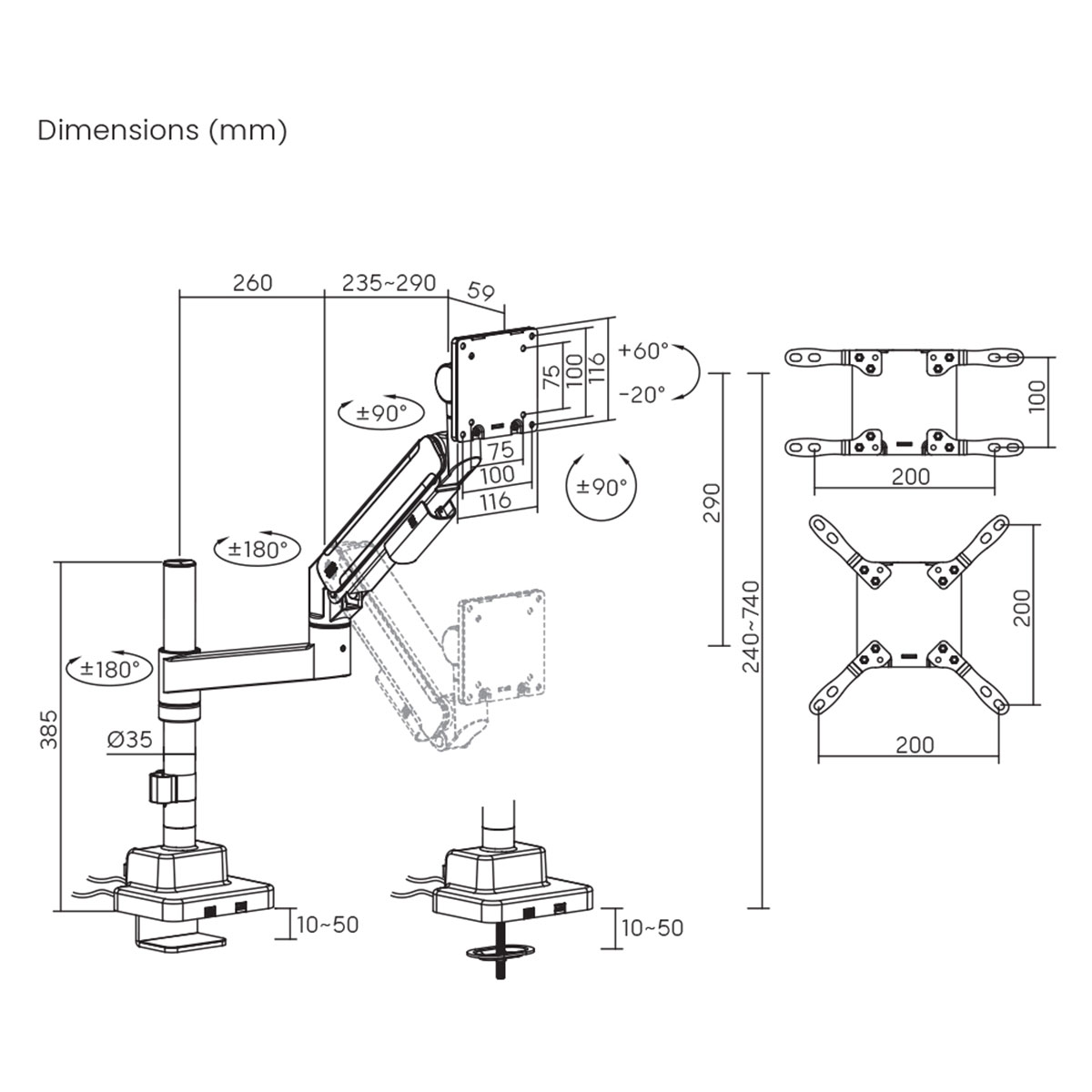

Drawing
