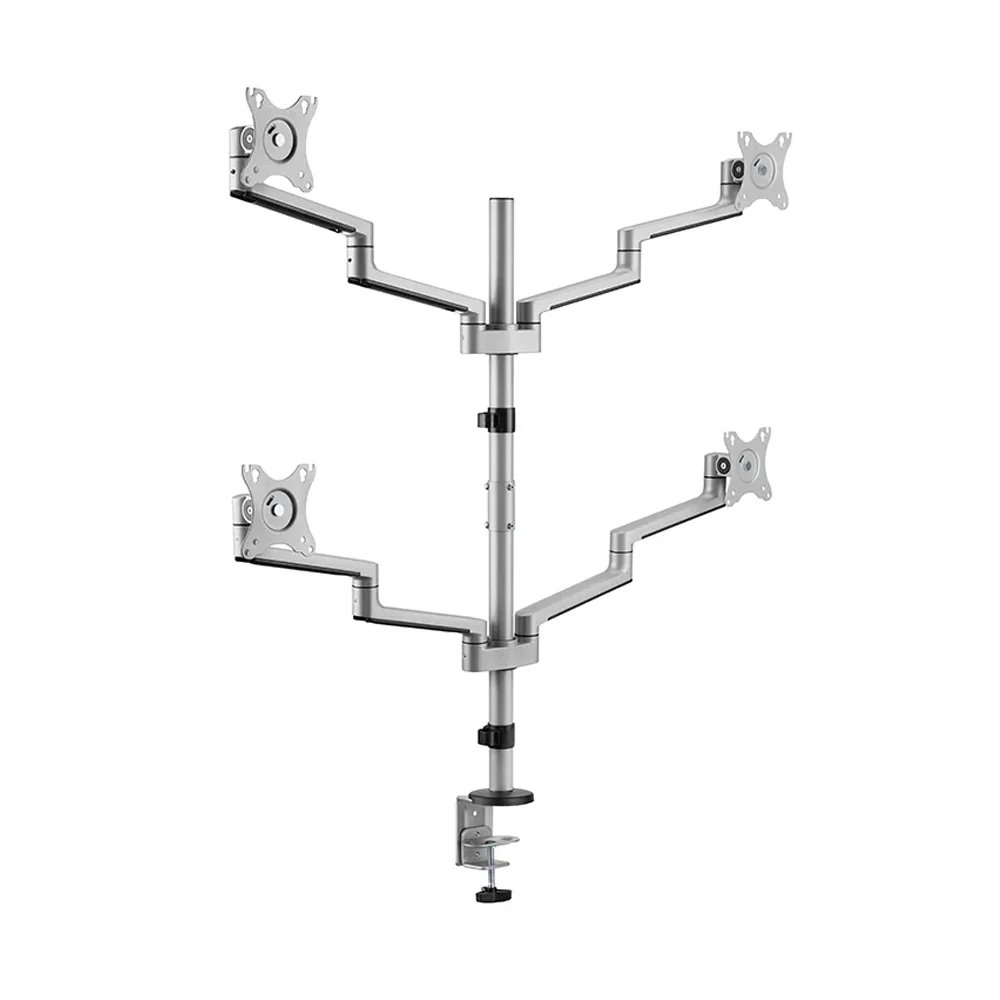

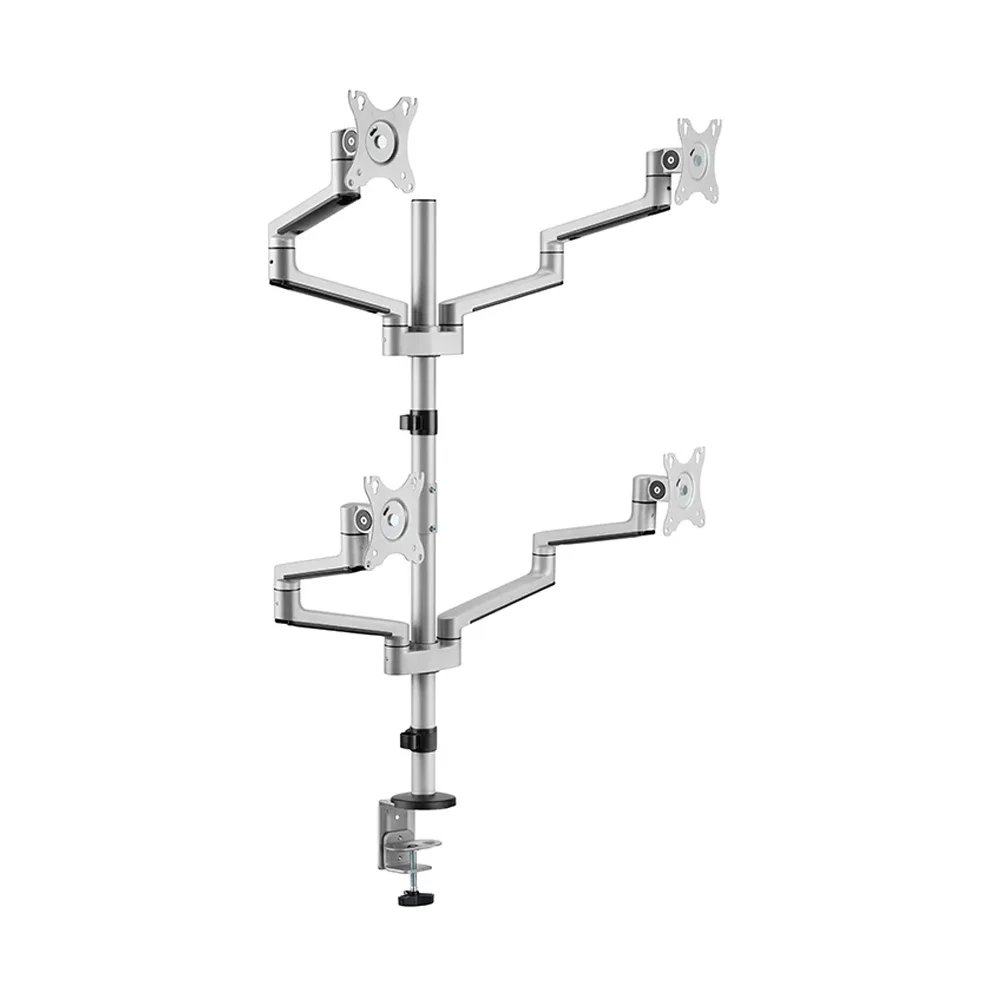

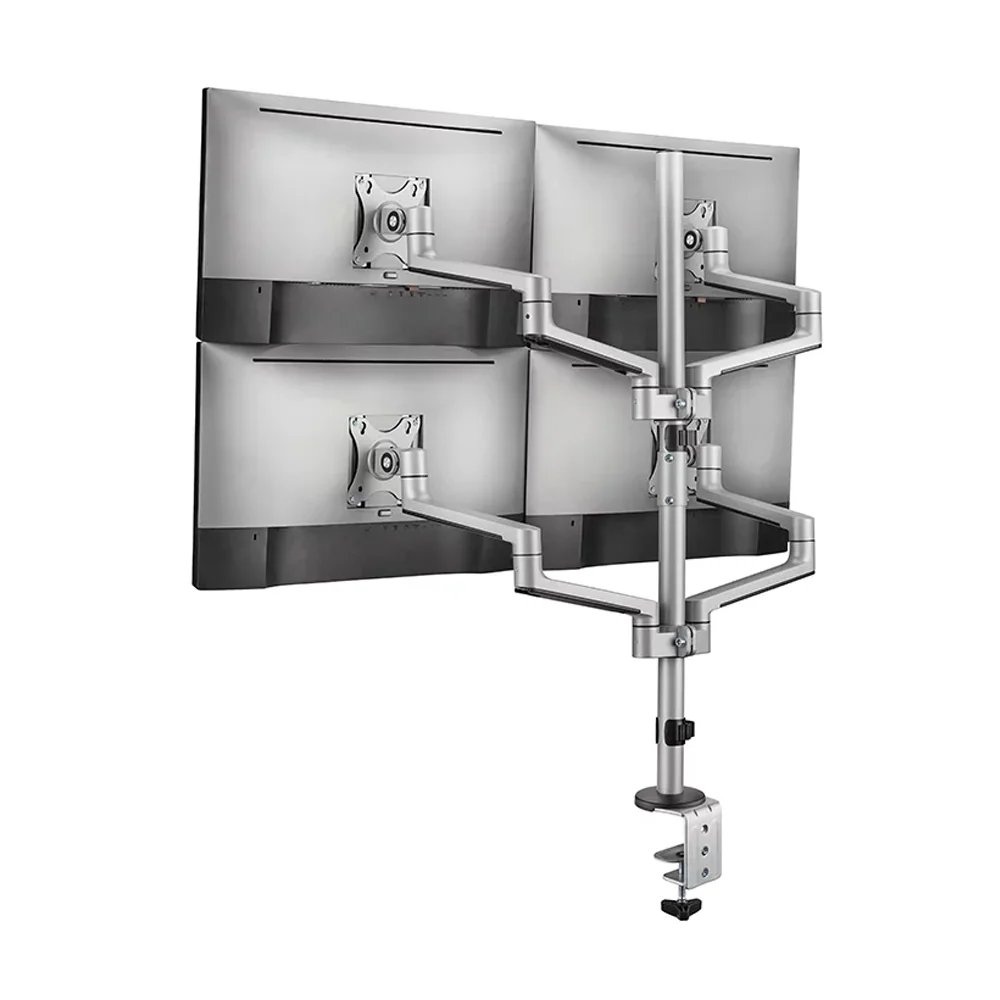

SH72 C048 Ergonomic Quad Monitor Arm

SH72 C048

Premium Aluminium Articulating Monitor Mount

17''~32'' icon
Screen Size17''~32''
100x100mm icon
Max VESA100x100mm
6kg icon
Weight Capacity6kg
788mm icon
Profile788mm
+90°~-30° icon
Tilt Range+90°~-30°

Tags:Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Premium Aluminium Articulating Monitor Mount, SH72C048

Data Sheet

Overview

Product CategoryArticulating Monitor Arm
RankStandard
MaterialAluminium,Steel,Plastic
Surface FinishPowder Coating
ColorMatte Black,Matte Silver
Swivel Range+90° ~ -90°
Screen Rotation+180° ~ -180°
Arm Full Extension447mm (17.6")
Pole Height788mm (31")
InstallationClamp,Grommet
Product CategoryArticulating Monitor Arm
RankStandard
MaterialAluminium,Steel,Plastic
Surface FinishPowder Coating
ColorMatte Black,Matte Silver

Features

  • Durable MaterialsMade from aluminium, steel, and plastic with a smooth powder coating finish in Matte Black or Matte Silver.
  • Supports Four MonitorsFits most 17" to 32" screens with a maximum VESA of 100x100mm.
  • Wide AdjustabilityOffers tilt (+90° to -30°), swivel (+90° to -90°), and rotation (+180° to -180°) for ergonomic positioning.
  • Strong Load CapacityEach arm supports up to 6kg (13.2lbs) per monitor.
  • Flexible InstallationCompatible with clamp and grommet mounting for desktops 10-80mm thick, featuring built-in cable management.

Description

The SH72 C048 is a premium aluminium articulating monitor mount designed for up to four screens sized 17" to 32". Featuring a sturdy powder-coated finish in matte black or silver, it supports 6kg per screen with flexible tilt (+90° to -30°), swivel (+90° to -90°), and rotation (+180° to -180°). The arm extends up to 447mm, with easy clamp or grommet installation and built-in cable management for a clean setup.

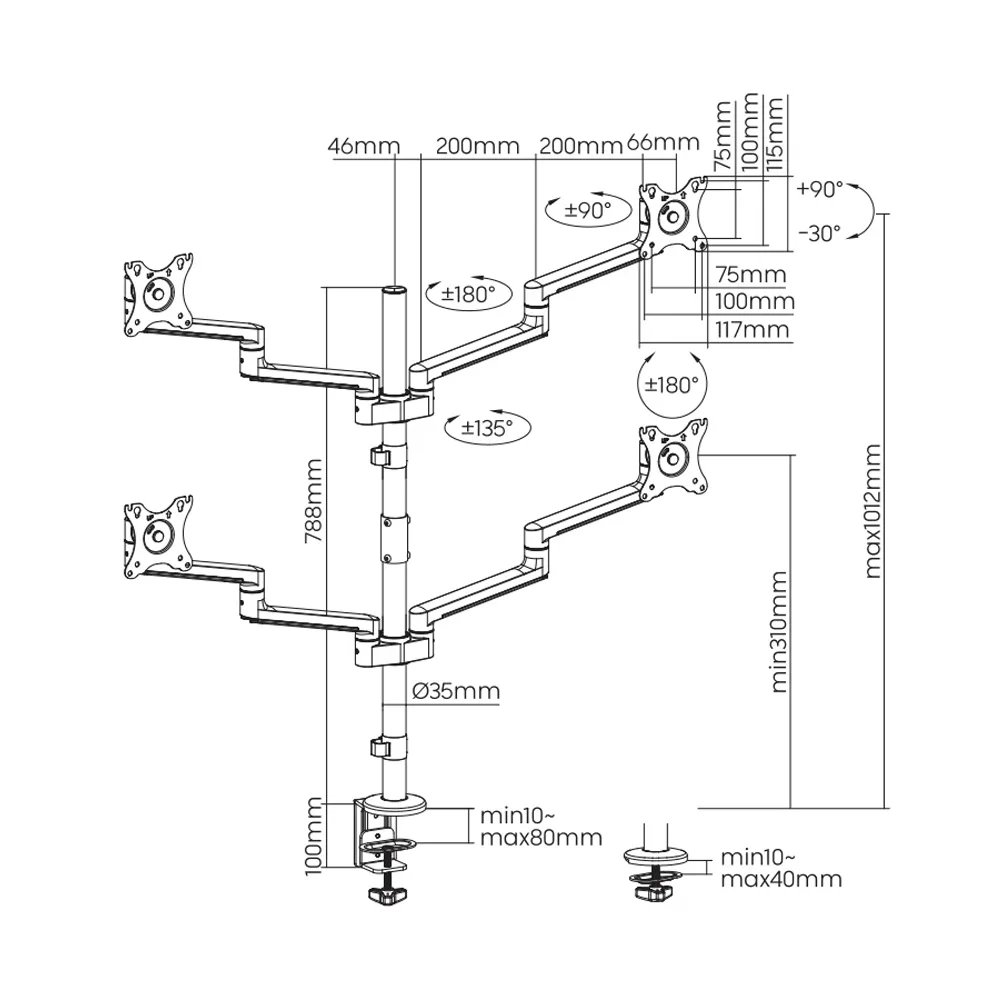

Drawing

Drawing
