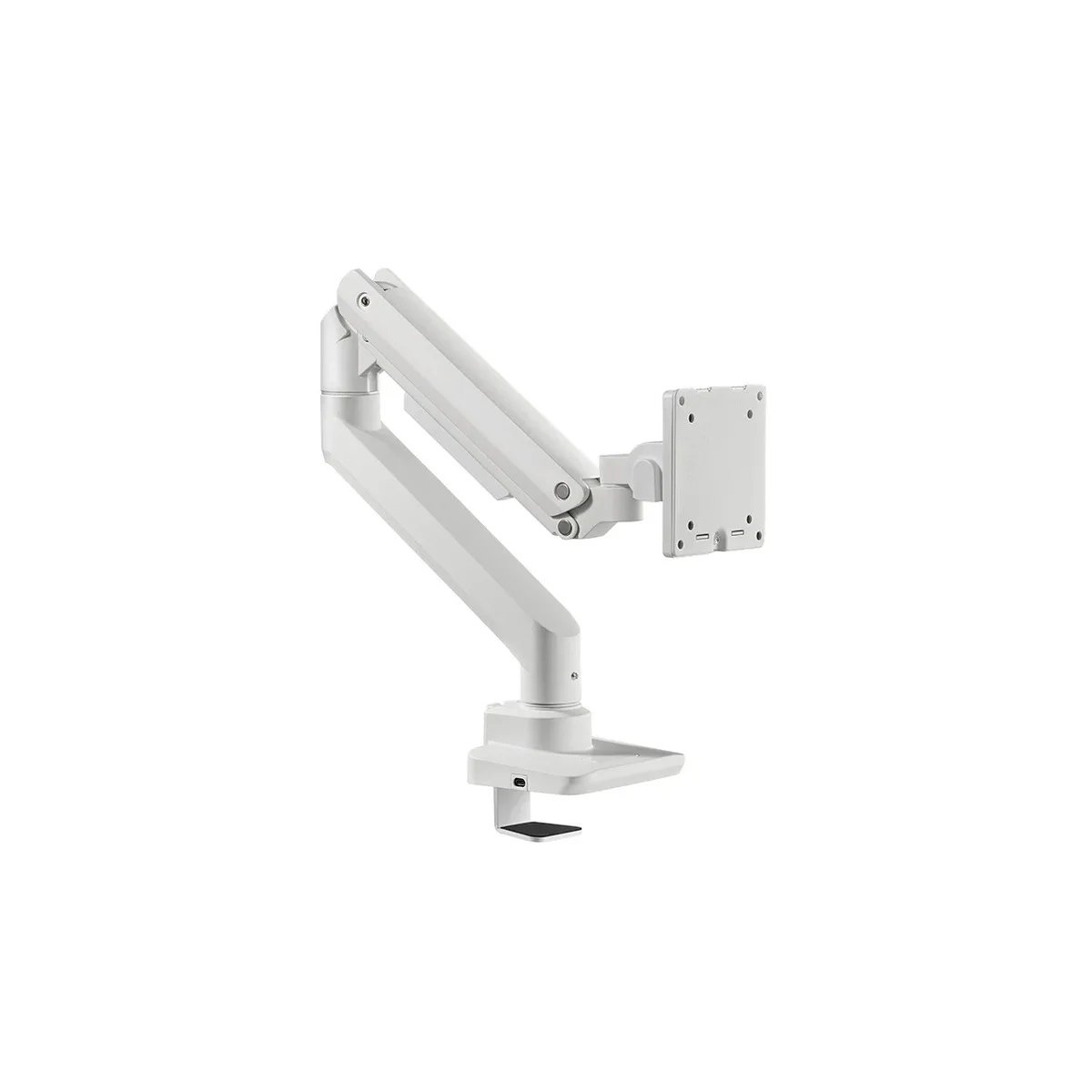

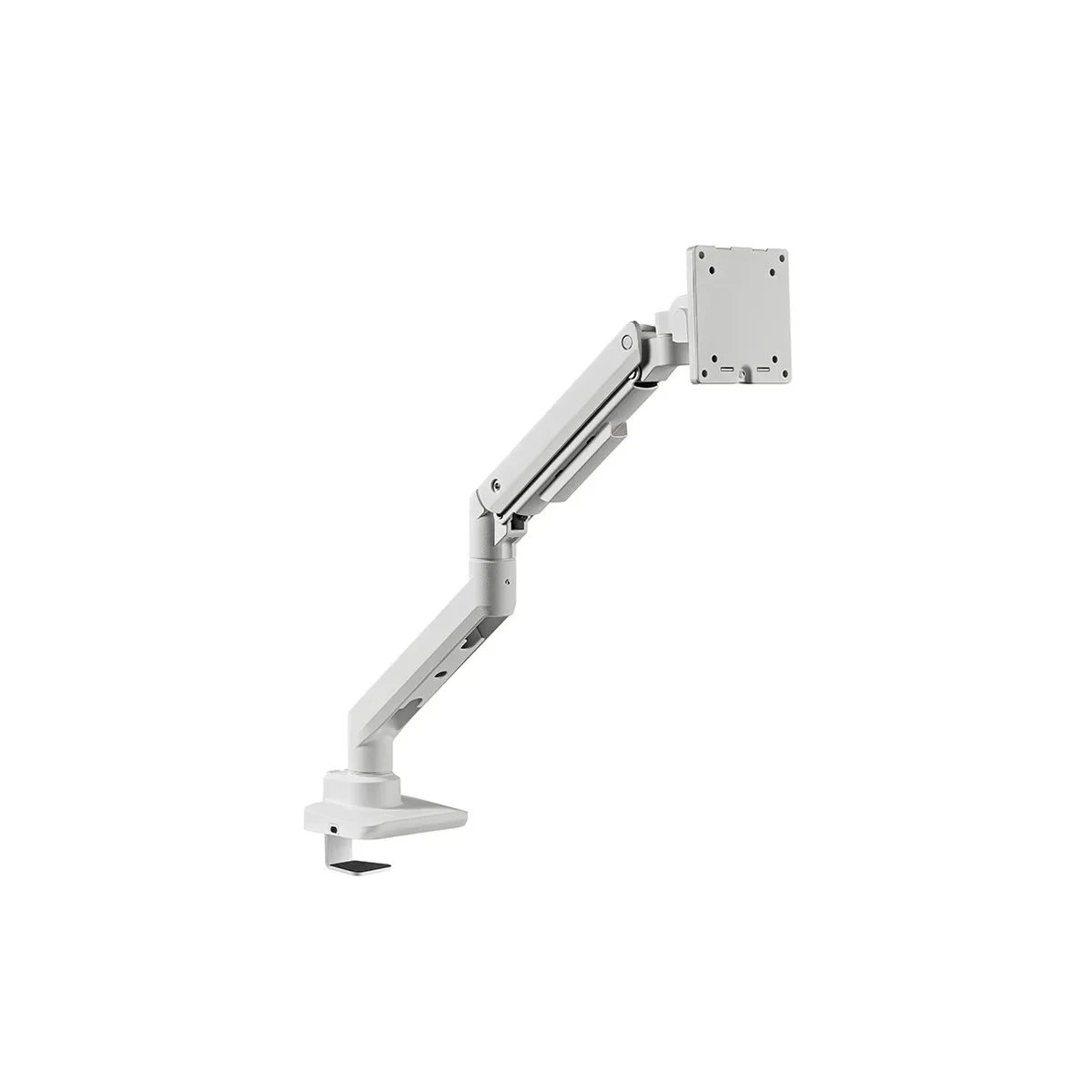

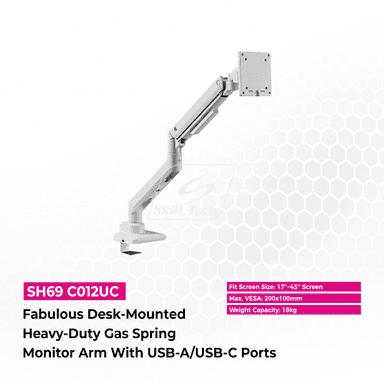

SH69 C012UC Fabulous Desk-Mounted Heavy-Duty Gas Spring Monitor Arm With USB-A/USB-C Ports

Product Category:	Gas Spring Monitor Arm
Rank:	Premium
Material:	Aluminium,Steel,Plastic
Surface Finish:	Powder Coating
Color:	Polished Aluminium,Jet Black,Fine Texture Black,Fine Texture White

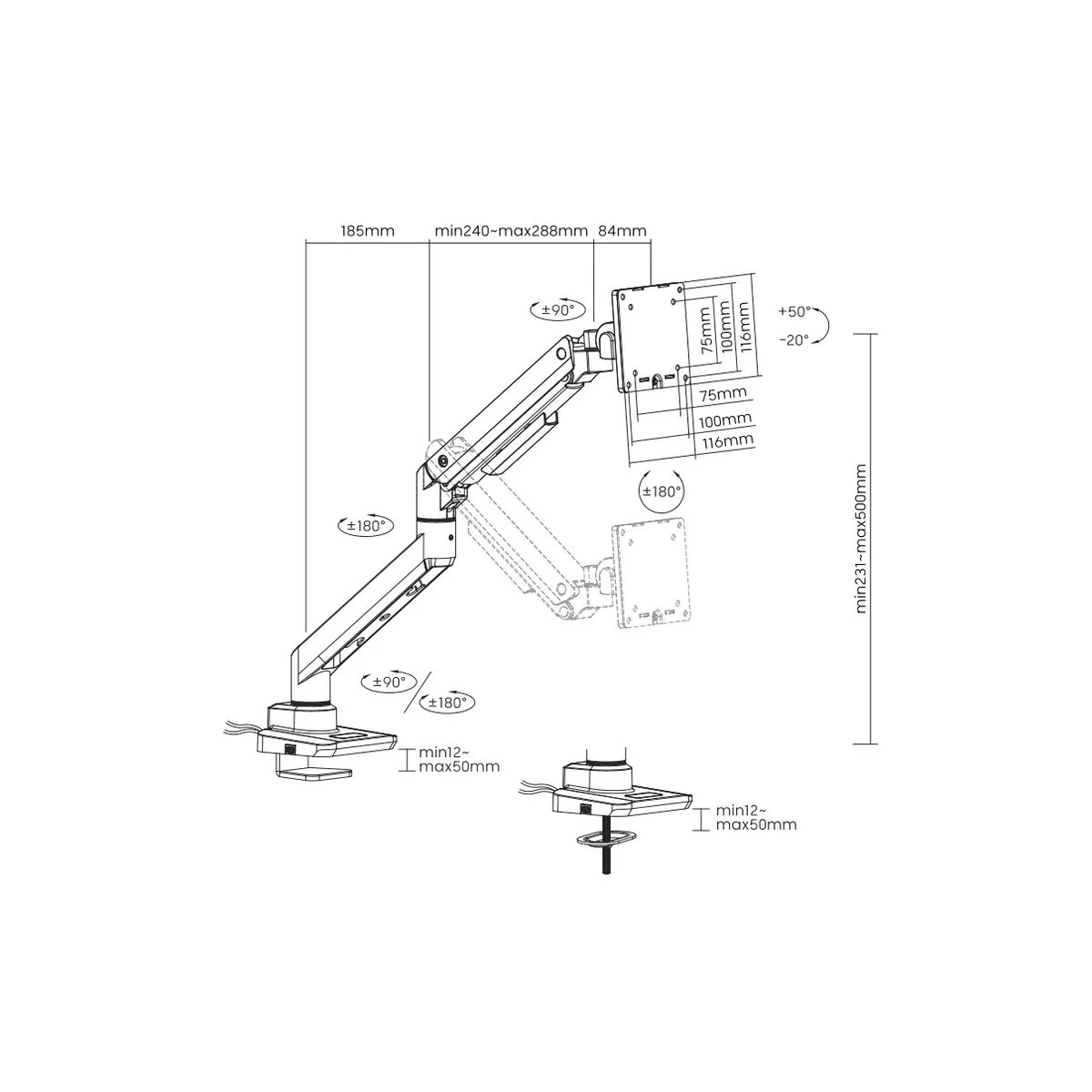

Dimensions:	132x558x575mm (5.2"x22"x22.6")
Fit Screen Size:	Suitable For Most 17" ~ 49" Screen
Fit Curved Monitor:	Yes
Screen Quantity:	1
Weight Capacity (per screen):	2~20kg (4.4lbs~44lbs)
Max.Vesa:	100x100mm
Tilt Range:	+50° ~ -20°
Swivel Range:	+90° ~ -90°
Screen Rotation:	+180° ~ -180°
Arm Full Extension:	473mm (18.6")
Installation:	Clamp,Grommet
Suggested Desktop Thickness:	Clamp?12~50mm Grommet?12~50mm (Clamp?0.47"~2" Grommet?0.47"~2")
Quick Release VESA Plate:	Yes
USB Port:	1xUSB 3.0 Port,1xTYPE-C
Cable Management:	Yes
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag

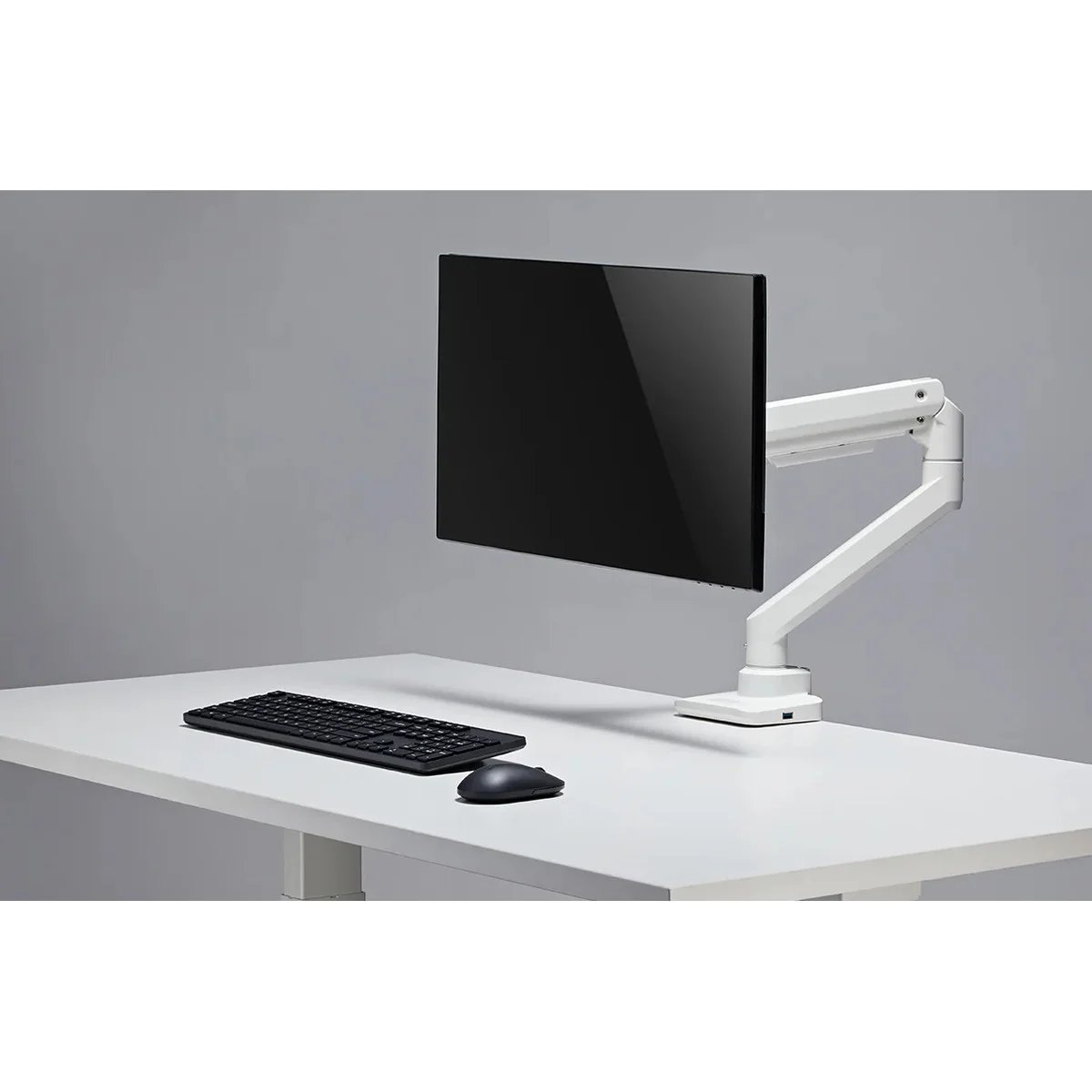

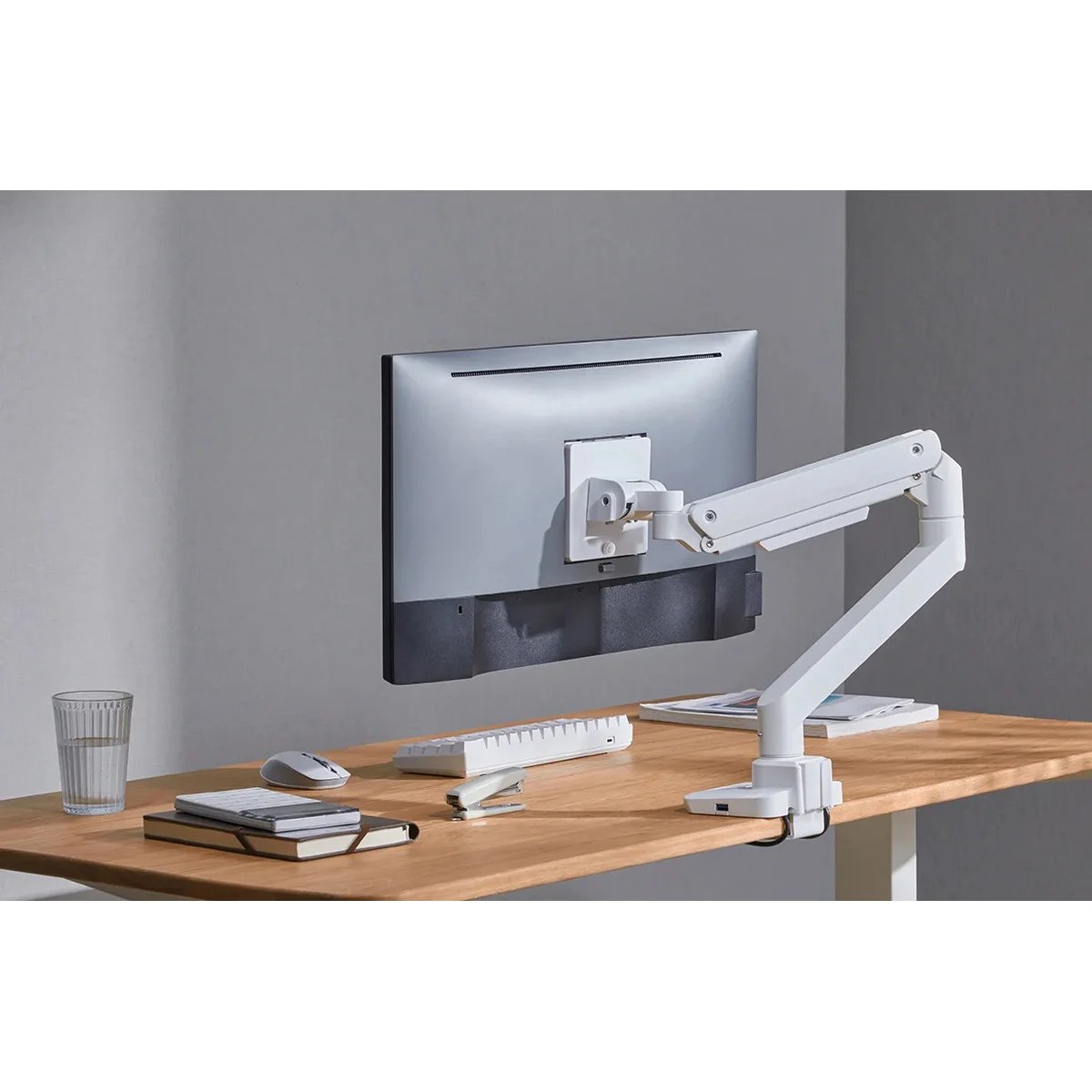

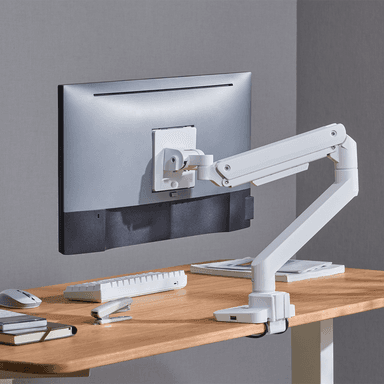

To keep up with the new trend of larger screens, we’ve designed the SH69 C012UC monitor arm to securely hold monitors up to 49 inches, such as the Samsung Odyssey G9. The optimized tilting mechanism provides a smoother adjusting experience for these large screens. Additionally, the quick-release VESA plate and topside installation base make it incredibly convenient to use. Smart base with USB-A & USB-C ports allows easy data transmission and charging. With four stylish color options, this monitor arm can seamlessly blend into any interior style. Take your large screen experience to the next level with this strong and sleek monitor arm.

Weight up to 44 lbs: easily reposition large curved/flat monitors.
Detachable VESA Plate Design: enables easy installation.
Smart Base with USB-A & USB-C Ports: snap-off plates on the base provide data throughput or to charge devices.
Built-in Cable Management: for an organized and neat workspace

Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens.
Installs from Top Side: installs entirely from above the desk surface.
180° Rotation Stop: prevents monitor arm from swinging into screens or walls.
