Home > Monitor & Desktop Mounts > Ergonomic Monitor Arm > Single Monitor Thin Gas Spring Monitor Arm

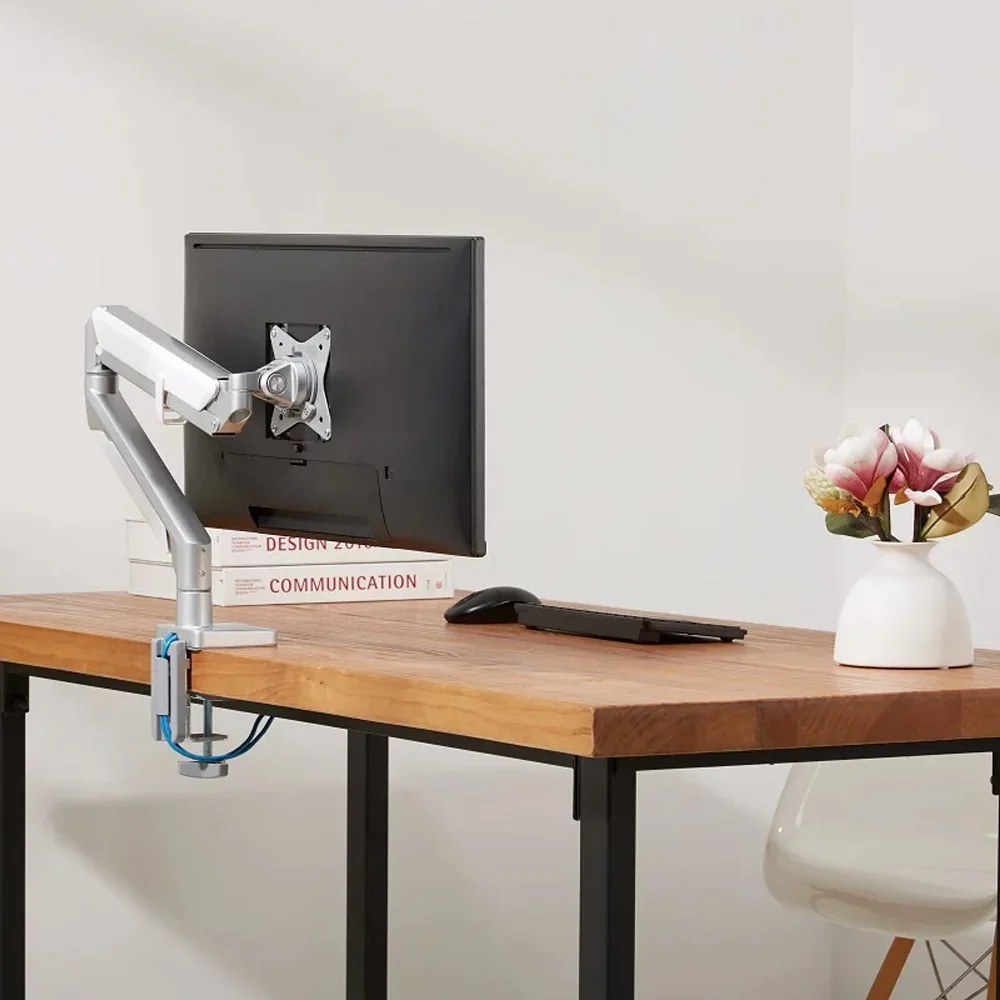

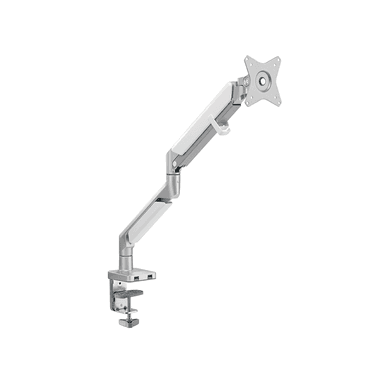

SH100 C013U Ergonomic Single Monitor ArmSide Profile of SH100 C013U Ergonomic Single Monitor MountAngle View of SH100 C013U Ergonomic Single Monitor ArmSH100 C013U Monitor Mount Writeup ImageSH100 C013U Ergonomic Single Monitor Arm Scenery ImageSH100 C013U Monitor Mount Drawing

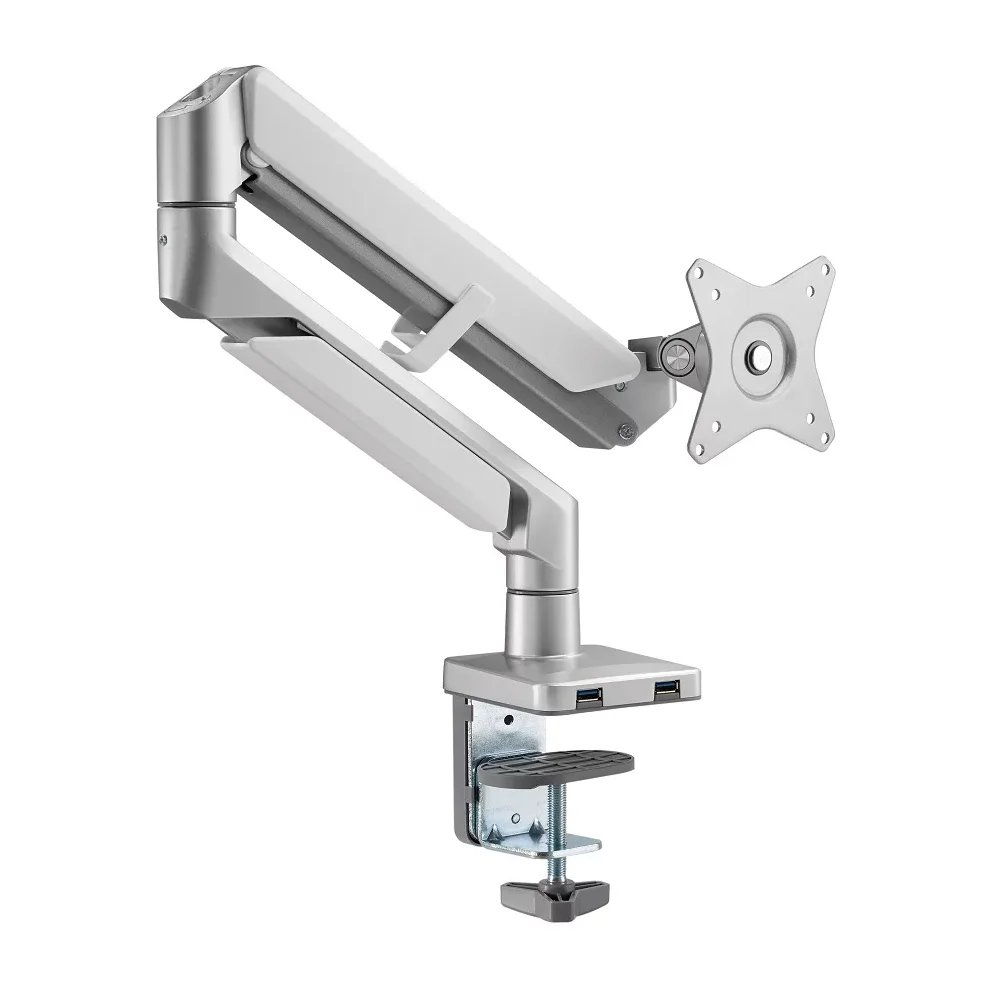

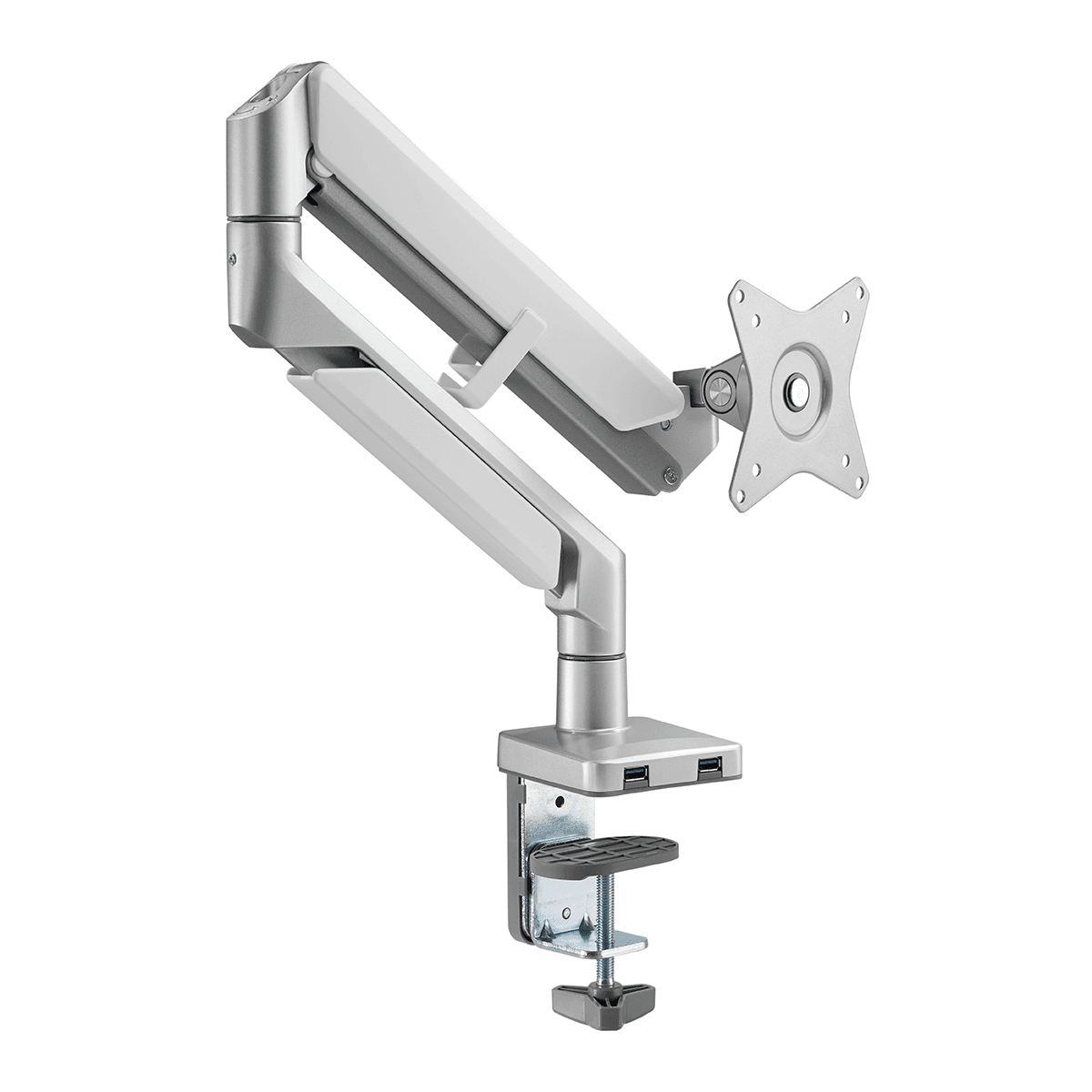

SH100 C013U Ergonomic Single Monitor Arm
SH100 C013U

Single Monitor Thin Gas Spring Monitor Arm

17"~32" icon
Screen Size17"~32"
100x100mm icon
Max VESA100x100mm
9kg icon
Weight Capacity9kg
195-515mm icon
Profile195-515mm
+40° ~ -40° icon
Tilt Range+40° ~ -40°

Tags:Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Single Monitor Thin Gas Spring Monitor Arm, SH100C013U

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
ColorPaint Spraying
ColorGloss Grey, Space Grey
Swivel Range+90°~-90°
Screen Rotation+180° ~ -180°
Arm Full Extension506mm (19.9″)
InstallationClamp,Grommet
Suggested Desktop ThicknessClamp 10~80mm Grommet 10~80mm (Clamp:0.39″~3.1″ Grommet:0.39″~3.1″)
Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
ColorPaint Spraying
ColorGloss Grey, Space Grey

Features

  • Wide CompatibilitySupports most 17″ to 32″ monitors, including curved displays, with a max weight capacity of 9kg (19.8lbs).
  • Full Motion AdjustmentOffers tilt (+40°-40°), swivel (+90°-90°), and rotation (+180°~-180°) for ergonomic viewing.
  • Robust Build QualityConstructed from aluminum, plastic, and steel with a stylish gloss or space grey paint finish.
  • Convenient ConnectivityBuilt-in dual USB 3.0 ports for easy device access and charging.
  • Easy InstallationCompatible with clamp and grommet mounts; includes quick-release VESA plate and cable management.

Description

The SH100 C013U is a premium single monitor gas spring arm designed for 17″–32″ screens, including curved monitors. With a sleek aluminum, steel, and plastic build in gloss or space grey, it supports up to 9kg and offers full motion adjustment—tilt, swivel, and rotation. It features a 506mm arm extension, quick-release VESA plate, dual USB 3.0 ports, and integrated cable management. Installation is easy via clamp or grommet mount.

Installation Video

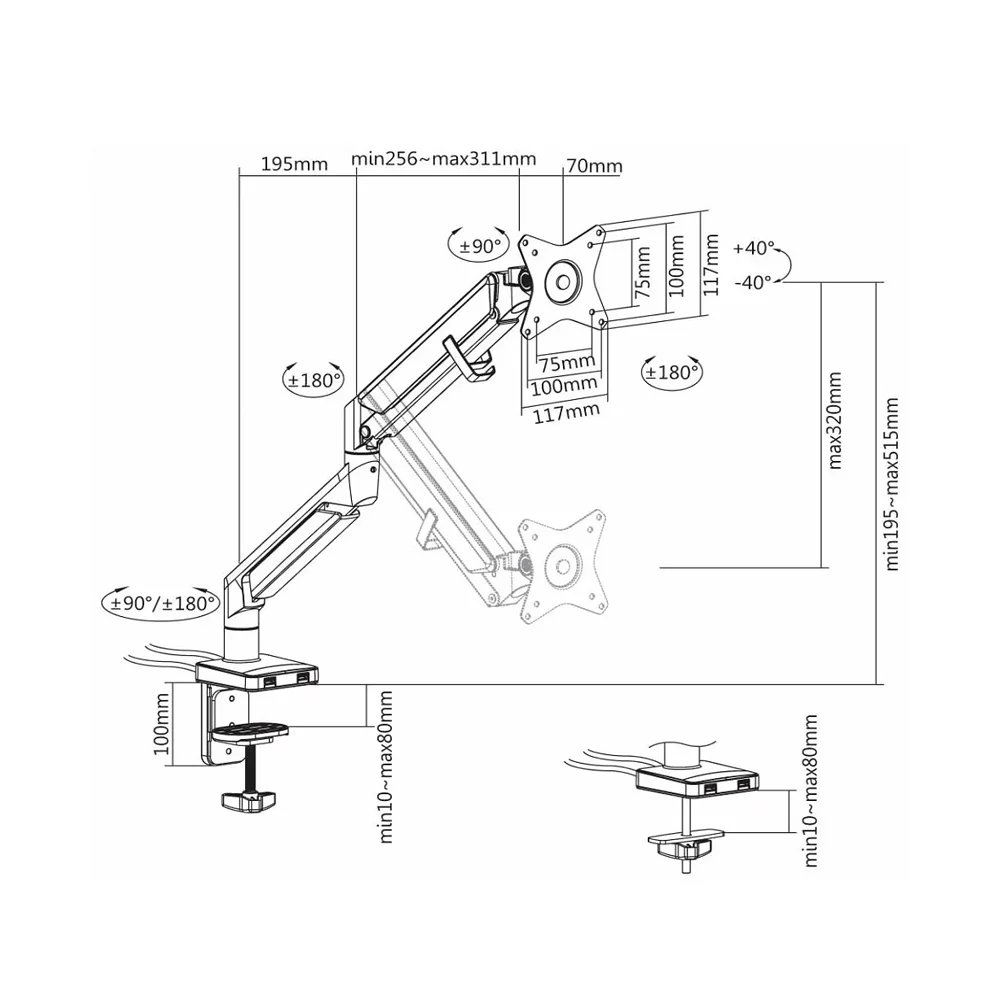

Drawing

Drawing
