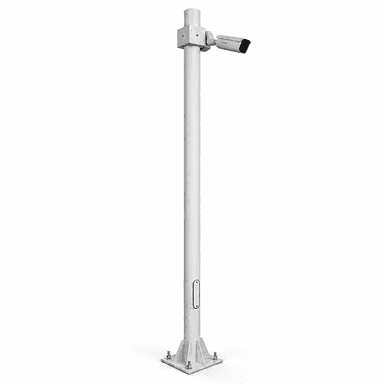

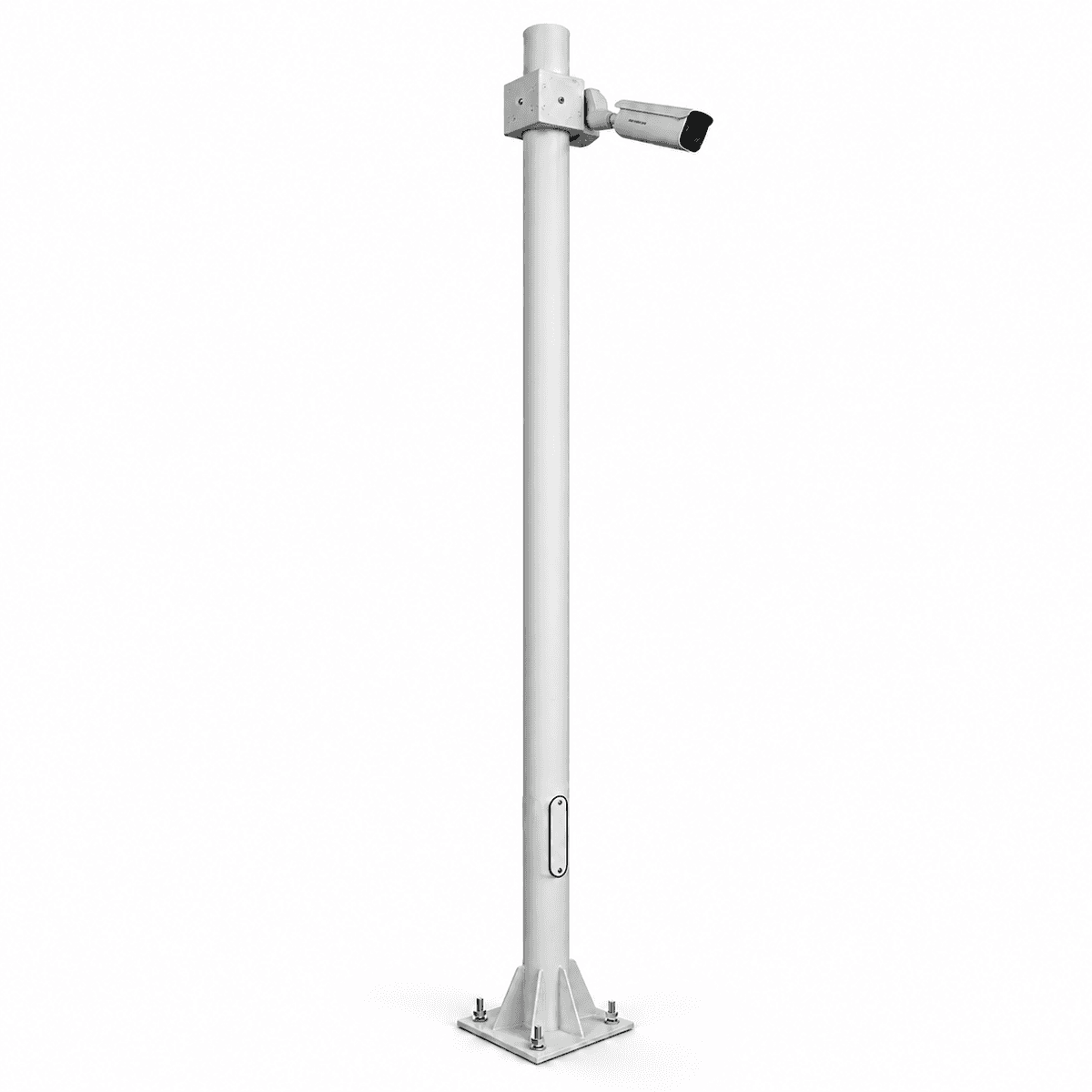

iL-C502
CCTV Camera Pole
Overview
| Application | CCTV Camera Pole |
|---|---|
| Dimensions | 3mtr height, 90mm Dia, 2mm Thickness |
| Base | 250x250mm, 10mm Thickness |
| Material | MS with Powder coating |
|---|---|
| Features | Camera brackets with cable management |
| Application | CCTV Camera Pole |
|---|---|
| Dimensions | 3mtr height, 90mm Dia, 2mm Thickness |
| Base | 250x250mm, 10mm Thickness |
| Material | MS with Powder coating |
| Features | Camera brackets with cable management |
Features
- 3-Meter HeightProvides elevated positioning for improved surveillance coverage.
- Heavy-Duty Steel ConstructionMade from durable mild steel for reliable support.
- Stable Base Plate250 × 250 mm base with 10 mm thickness ensures secure installation.
- Integrated Cable ManagementHelps route and protect camera cables for a neat setup.
- Powder-Coated FinishEnhances durability and suitability for outdoor surveillance applications.
Description
The iL-C502 CCTV Camera Pole is a durable mounting solution designed for reliable outdoor surveillance installations. Standing 3 meters high with a 90 mm diameter and 2 mm thickness, it provides strong support for compatible camera brackets. The 250 × 250 mm, 10 mm thick base ensures stable installation. Made from powder-coated mild steel, it offers durability, cable management, and a clean, professional setup for commercial, industrial, and security applications.

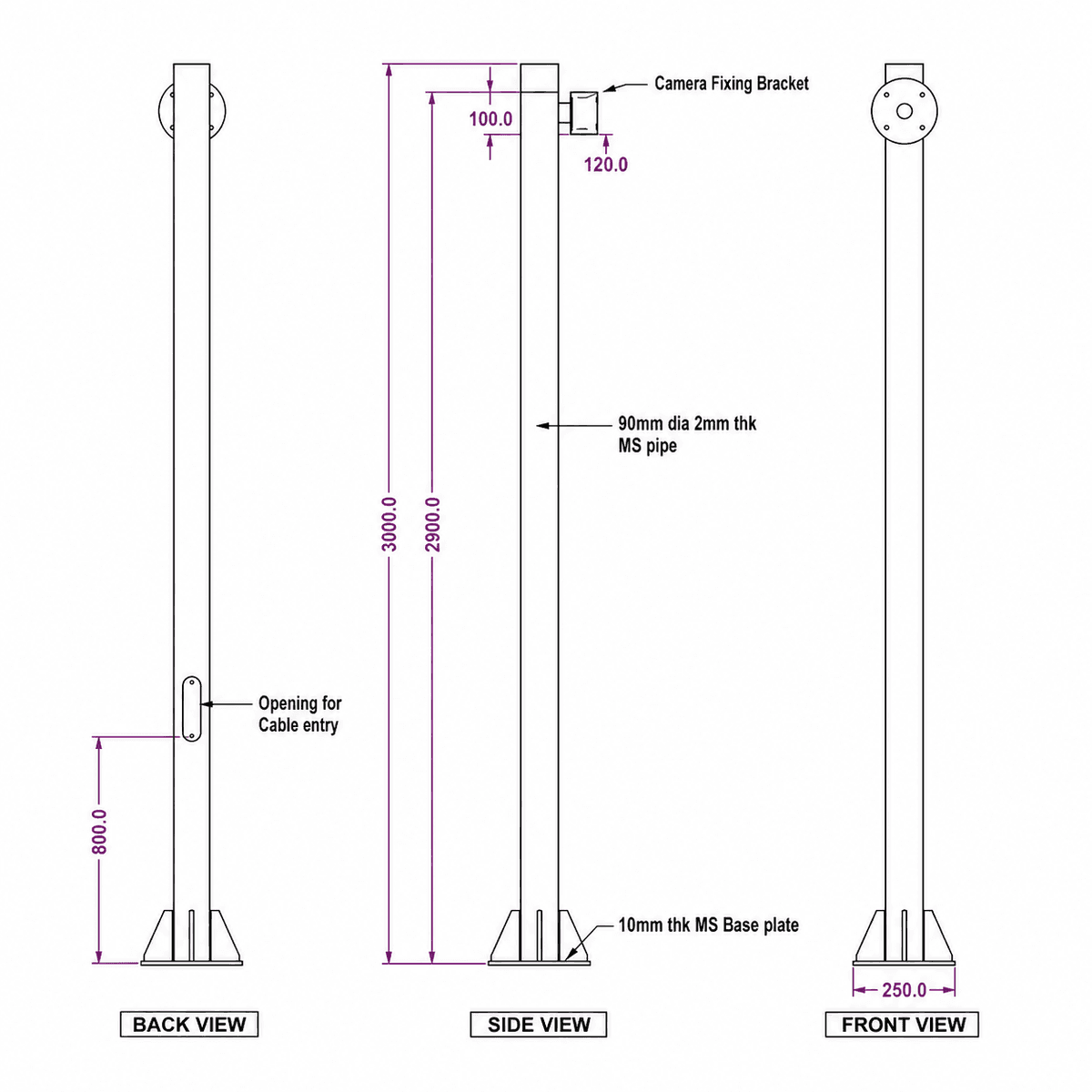

Drawing
