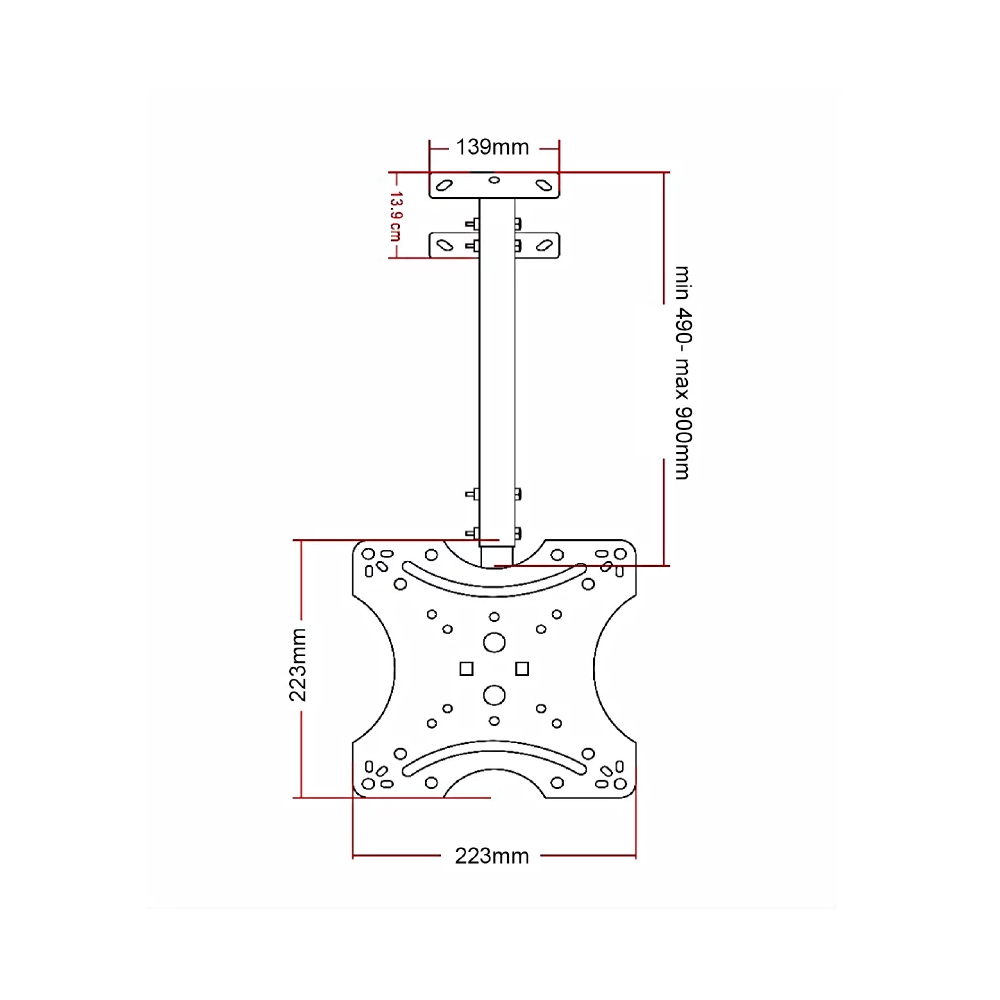

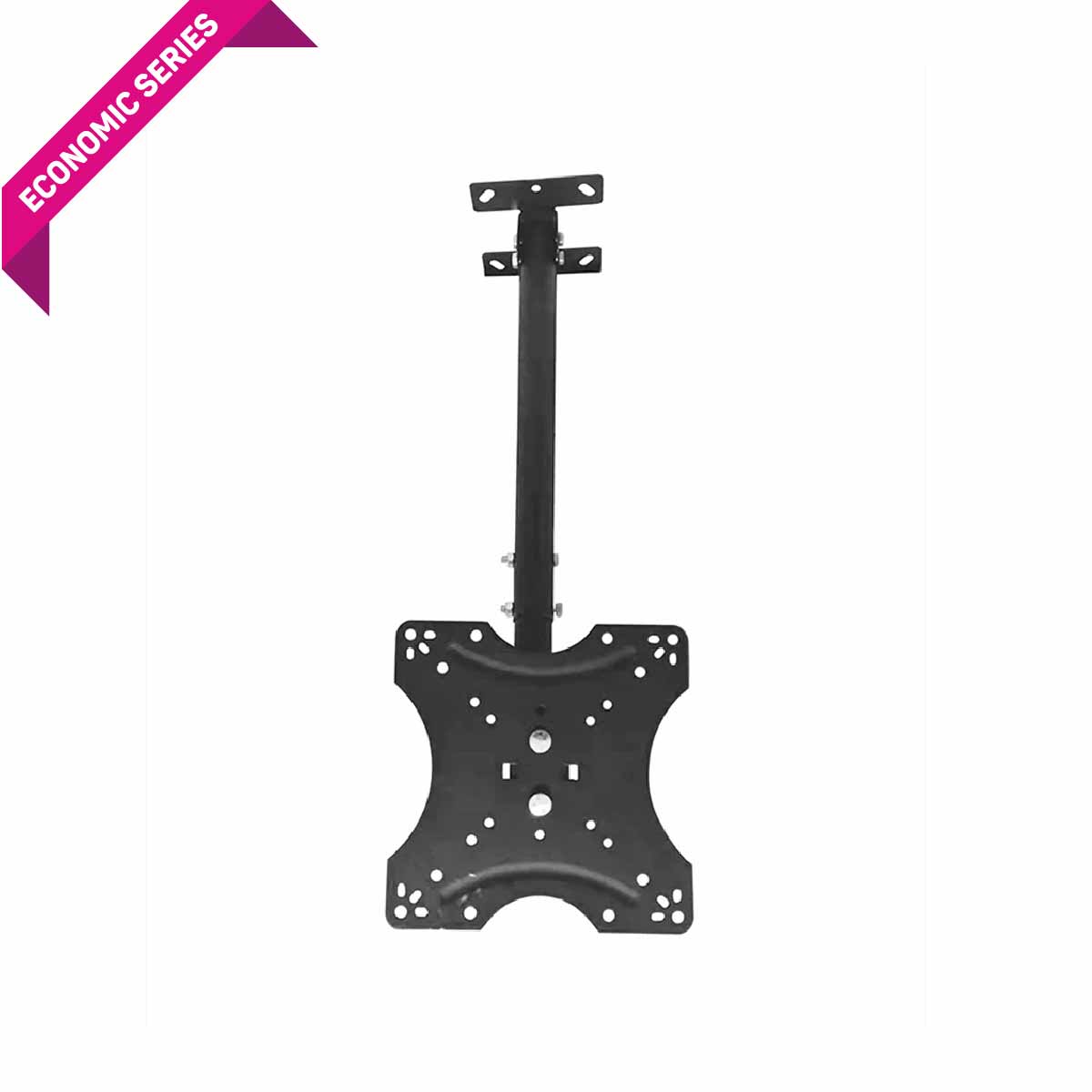

The SH CB01 TV Ceiling Mount, part of the Economic Series, offers a budget-friendly solution for securely mounting flat and curved-screen televisions ranging from 14 inches to 44 inches in size. Crafted from sturdy steel with a fine texture black powder-coated finish, this mount is both durable and visually appealing.This ceiling mount is compatible with various VESA patterns, including 75x75, 100x100, and 200x200mm, with a maximum VESA size of 200x200mm, making it suitable for a range of TV models.With a substantial weight capacity of 30 kg, it ensures a stable and safe installation for mid-sized TVs. You can adjust the tilt angle from +15° to -5°, allowing you to customize the viewing angle for comfort.
Product Category: |
TV Ceiling Mount |
Rank: |
Economic Series |
Material: |
Steel |
Surface Finish: |
Powder Coating |
Color: |
Fine Texture Black |
Dimensions: |
940X230X130 mm |
Fit Screen Size: |
Suitable For Most 14" ~ 44" Screen |
Fit Curved TV: |
Yes |
Mounting Hole Pattern: |
VESA & Universal |
Max VESA Compatible: |
75x75,100x100, 200x200mm |
Max. VESA: |
200x200mm |
Weight Capacity: |
30 kg |
Tilt Range: |
+15 ~ -5 |
Installation: |
Ceiling Mounted |
Panel Type: |
Detachable Panel |
Wall Plate Type: |
Fixed Wall Plate |
Cable Management: |
Yes |
Bubble Level: |
No |
